Selecting a Dataset for a Sequence Scenario

Refer to section About the DataSet Editor, for additional information about datasets that you can create. To define a dataset for your sequence scenario successfully, you must select a dataset and then define the sort order of the attributes within the dataset.

The following sections describe these procedures:

To select a dataset for a sequence scenario, follow these steps:

1. From the Windows menu, select Sequence Patterns.

   The Sequence Scenario Editor displays.

2. From the Scenario menu of the Sequence Scenario Editor, select Open Existing Scenario.
3. Select a scenario from the Scenario/Pattern dialog box.
4. From the Scenario menu of the Sequence Scenario Editor, select Dataset.
   The Sequence Dataset Editor dialog box displays.

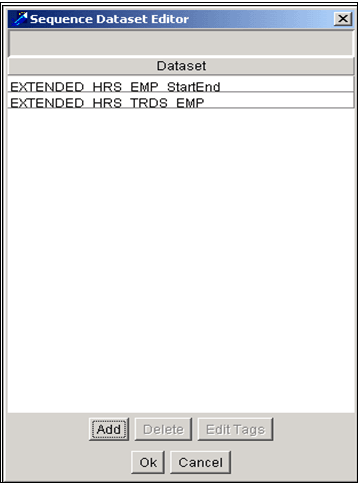

   Figure 6-5 Sequence Dataset Editor Dialog Box









   This dialog box lists the datasets that compose the current sort. You can filter the list of datasets to include:

   • Wrapper datasets only (all wrapper datasets are realized)
   • Wrapper datasets and any realized, derived datasets
   • All datasets (wrapper and derived)
5. Click Add in the dialog box to view available datasets.
6. Click the dataset you want to add to your sort.
7. Click Ok.

   The selected dataset name displays in the Sequence Dataset Editor dialog box.

You can now define the sort for your pattern through the Edit Tags function.
