Process Overview

The GHG emissions calculator engine is an integral part of the Oracle Financial Services Climate Change Analytics Cloud Service solution. This engine enables users to calculate their greenhouse gas (GHG) emissions across various classifications like Scope 1, 2, and 3 and emissions categories. Logics and formulas used in this engine have been developed based on various industry-leading guidance and standards like The GHG Protocol Corporate Accounting and Reporting Standard and The Global GHG Accounting and Reporting Standard issued by Partnership for Carbon Accounting Financials (PCAF).

The following diagram illustrates the steps to be performed in order to obtain the GHG Emissions at an Emissions Category level.

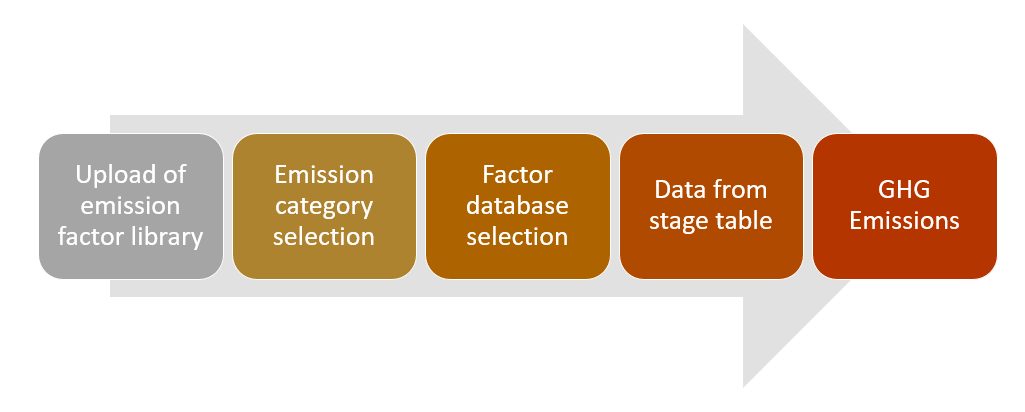

Figure 6-1 The GHG Emissions Process


The GHG Emissions Process

  • Upload emission factor library – Users must upload the relevant emissions factors that they want the calculation engine to use for processing purposes at a source level like PCAF, DEFRA, UNFCC, etc. For more details, refer to the MOS page.
  • Data from staging tables – Users must provide relevant data elements required to calculate GHG emissions using the Object Store. For more details on the data format and required data elements, please refer MOS page.
  • Create user definitions – Users must create a definition at a legal entity level using the Greenhouse Gas Emissions Calculator UI screen. For more details, please refer section on the Greenhouse Gas Emissions Calculator UI screen.
  • Calculate GHG Emissions – In this step, users direct the service to execute a run to process data provided and defined user inputs for calculating GHG emissions.
  • Reports & Analytics – Output of GHG emissions is then utilized for various visualizing various pre-built dashboards, reports, and metrics using the Oracle Analytics platform.

The following list of emissions categories are currently being supported by this engine:

  1. Fuels
  2. Refrigerants
  3. Owned Transportation
  4. Electricity
  5. Heat and Steam
  6. District Cooling
  7. Purchased goods and services
  8. Capital Goods
  9. Fuel and energy related activities
  10. Upstream transportation and distribution
  11. Waste generated in operations
  12. Business Travel
  13. Employee commuting
  14. Upstream leased assets
  15. Downstream transportation and distribution
  16. Downstream leased assets
  17. Investments
  18. Emissions Removals
  19. Avoided Emissions
