Emission Factor Mappings

Activity Type- Emission Factor- Expression

This section allows the user to map a desired expression to the relevant emission category, asset class and activity type for processing purposes.

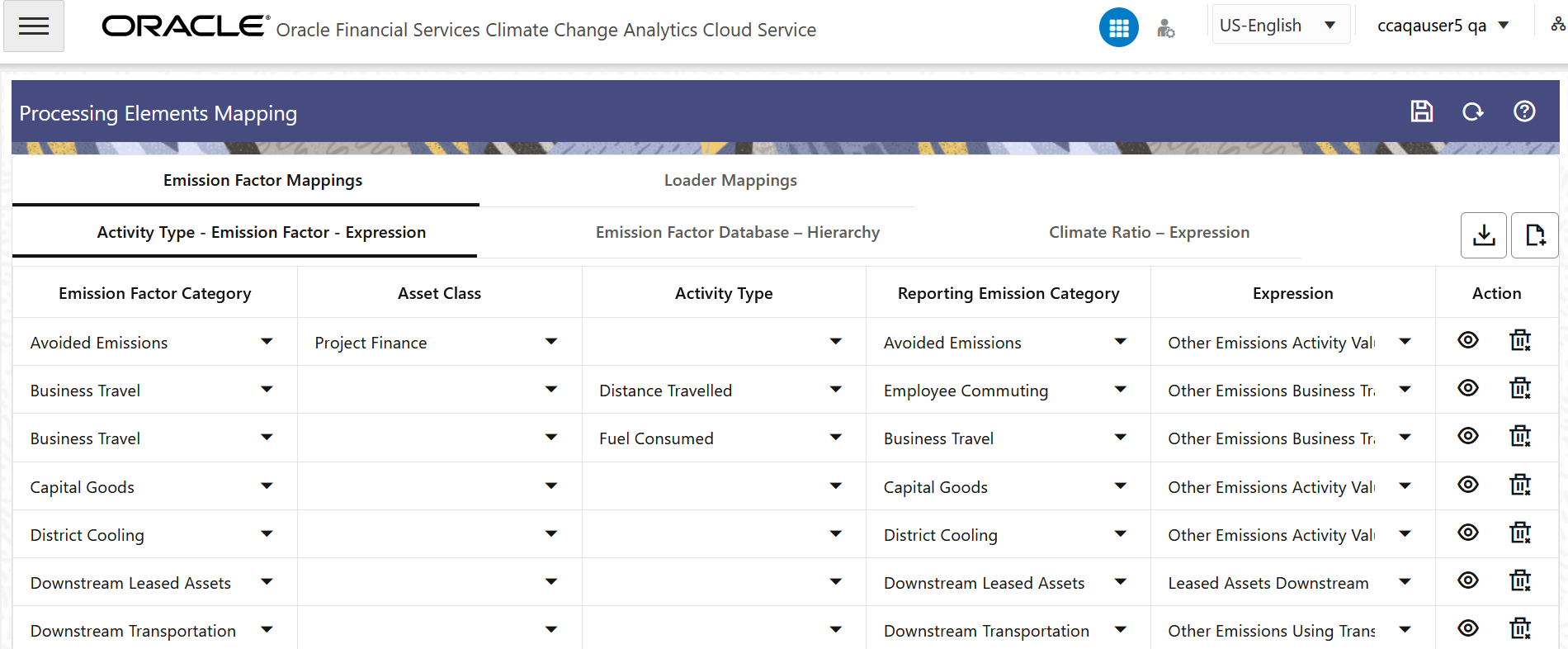

Figure 10-7 The Activity Type- Emission Factor- Expression tab


The Activity Type- Emission Factor- Expression tab

  • Emission Factor Category- This drop-down list contains the group level emission factor categories. This value is set in the instrument table.
  • Asset Class- This drop-down list contains the pre-seeded asset classes.
  • Activity Type- This drop-down list contains two pre-seeded activity types; Distance Travelled and Fuel Consumed
  • Method of Measurement- This drop-down list contains the pre-seeded method of measurements
  • Reporting Emission Category- This drop-down list contains pre-seeded emission categories. The final value that appears in this drop-down list is computed depending on the values that were selected in the Emission Factor Category, Asset Class, and Activity Type fields.
  • Expression- This drop-down list contains the list of pre-seeded defined expressions.
  • Add New Row- Click this button to add a new row to the table in order to map a new expression to an emission category, asset class, activity type, emission factor category. The same Emission Category can be mapped to a different Asset Class, Activity Type and Expression.
  • Download- Use this button to download the expression in a .csv format.
  • View- Click this icon to view the expression in View mode.
  • Delete- Click this icon adjacent to a row to delete it.

Emission Factor Database- Hierarchy

This section allows the user to map a desired emission factor hierarchy to an emission factor database source for processing purposes.

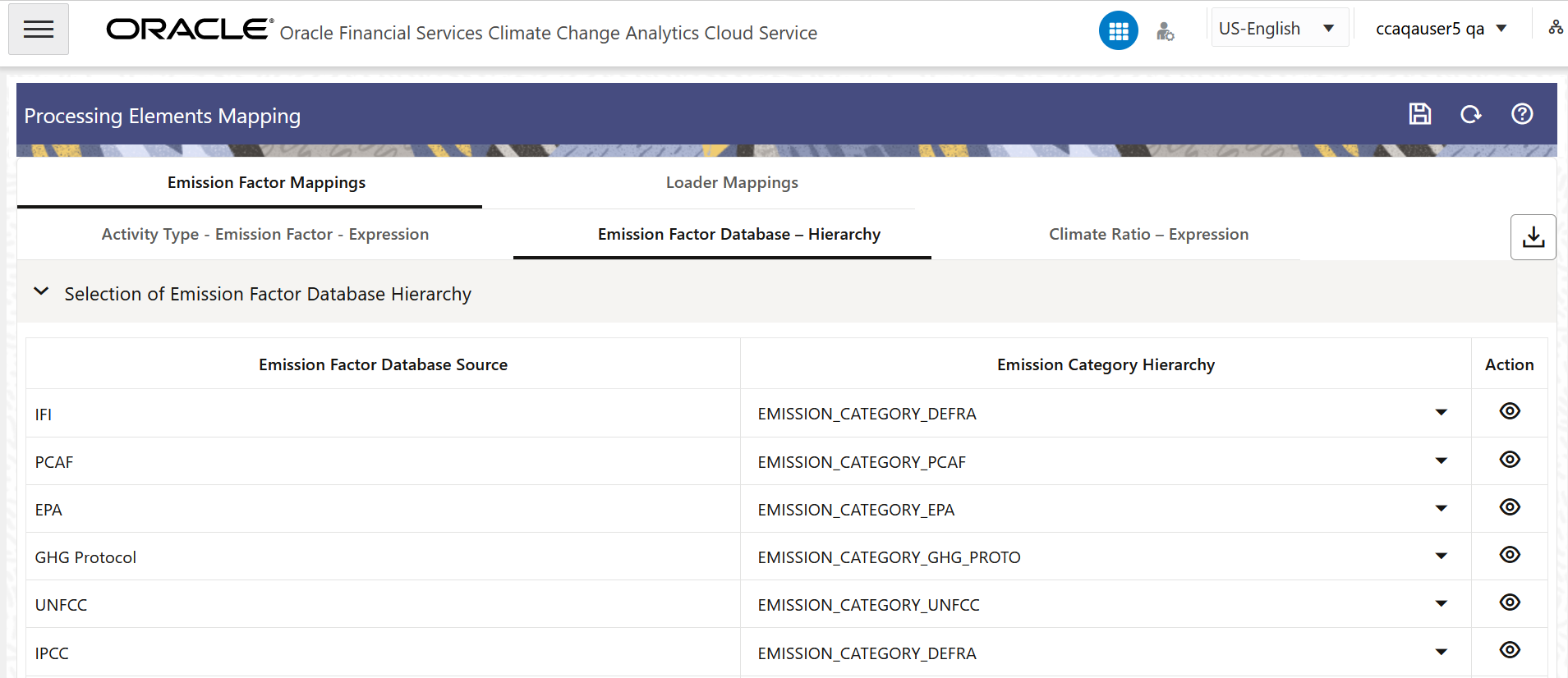

Figure 10-8 The Emission Factor Database- Hierarchy tab


The Emission Factor Database- Hierarchy tab

  • Emission Factor Database Source- This field contains the source database for a particular hierarchy.
  • Emission Category Hierarchy- This drop-down list contains a list of hierarchies that need to be used for a particular emission factor database. Out-of-the-box hierarchies defined by the user are supported.
  • View- Click this icon to view the hierarchy information of the emission category.:
    • If a hierarchy was selected in the Emission Category Hierarchy field, then the Dimension, Folder, and Hierarchy fields are disabled and this window will be in View mode.
    • If no hierarchy was selected in the Emission Category Hierarchy field, then the Dimension, Folder, and Hierarchy fields are enabled and the hierarchy details can be configured and viewed.

Emission Factor Database- Climate Ratio

This section allows the user to map a desired expression to the relevant climate ratio like WACI, Carbon Intensity for processing purposes.

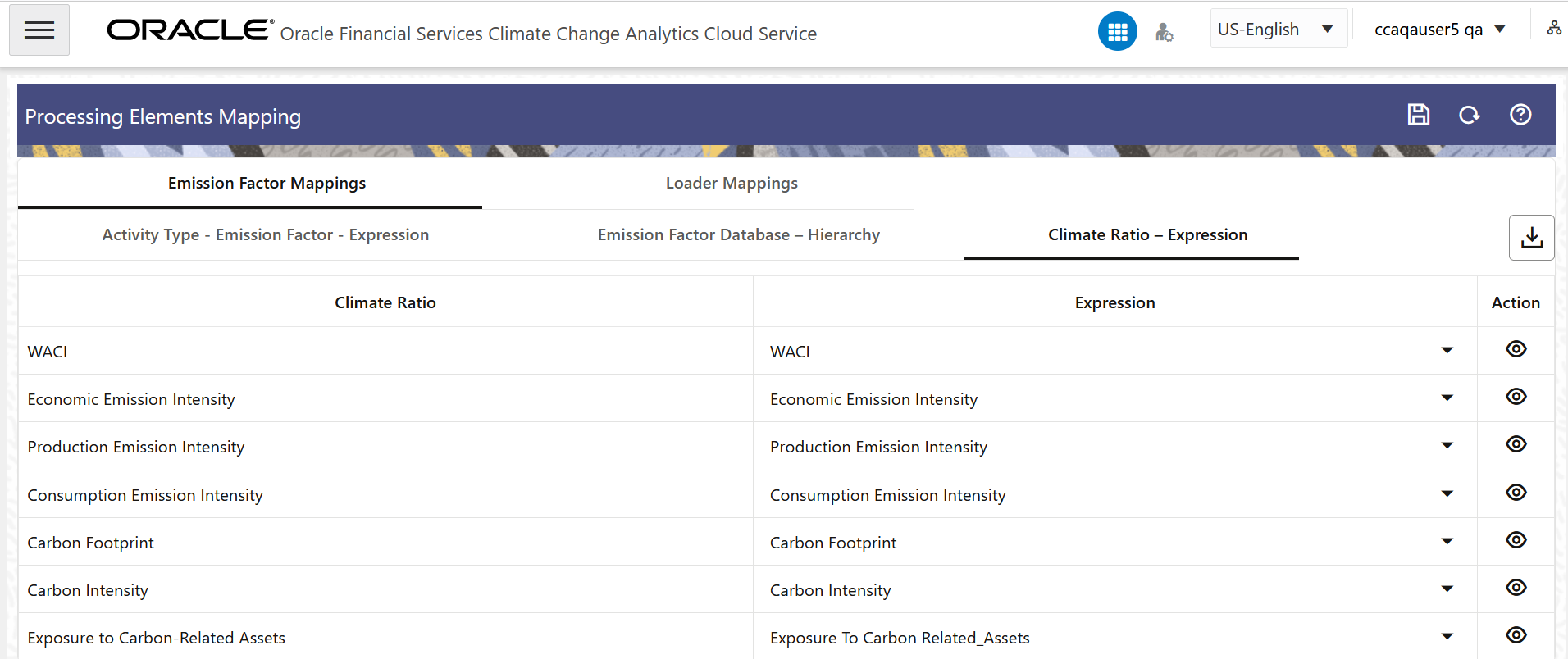

Figure 10-9 The Emission Factor Database- Climate Ratio tab


The Emission Factor Database- Climate Ratio tab

  • Climate Ratio- This column contains the newly added matrix name.
  • Expression- This drop-down list contains a list of expressions that can be mapped to repective matrix/attribute
  • View- Click this icon to view the hierarchy information of the emission category.
  • Save - Click this icon to save the mappings.
  • Refresh- Click this page to refresh the data on this page to their default values.
  • Download- Click this icon to download the expression mappings in a .csv format.
