4.8.1 Adding new policy columns in RPD

Application Policies (deviations) may change for different execution for each of the application.

By default, 20 placeholders are enabled in the CRMBI.rpd. If you need more columns, remaining placeholder columns need to be imported in CRMBI.rpd from physical layer to BMM layer to Presentation layer.

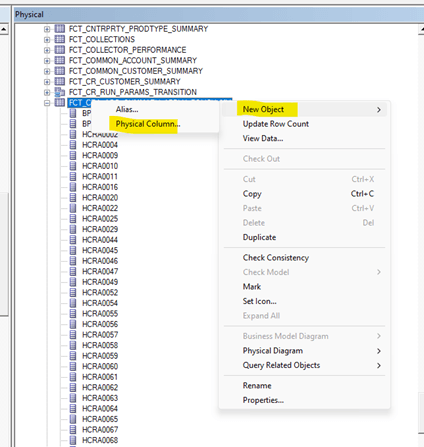

  1. Go to CRMBI.rpd, Physical Layer, FCT_CRA_AGG_SUMMARY_APPLN_POLICY_MV, New Object and then Physical Column.

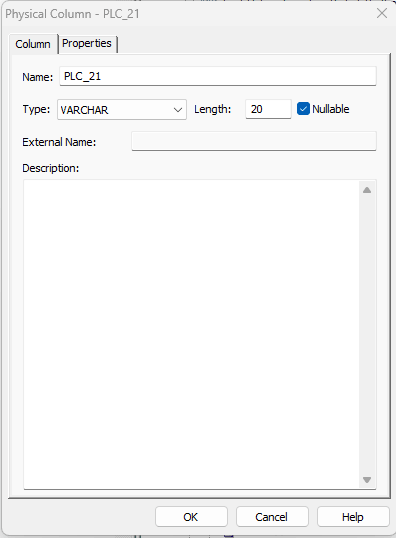

  2. Add new physical column as per FCT_CRA_AGG_SUMMARY_APPLN_POLICY_MV table in Database.
  3. Similarly, add PLC21_APPL, PLC21_DEV, and PLC21_SKEY

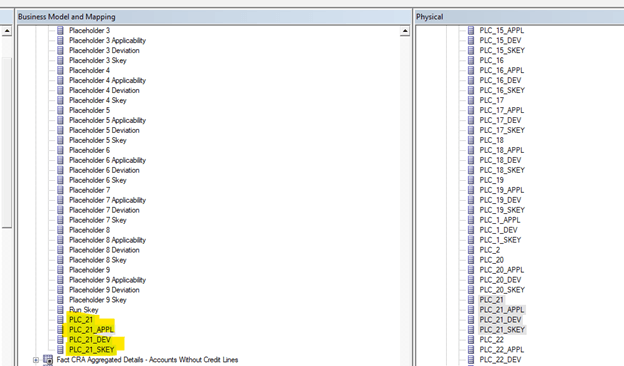

  4. Move the newly added columns from Physical layer to BMM layer.
    Move the columns from alias table Physical layer - Fact CRA Aggregate Summary Application Policy to BMM layer - Fact CRA Aggregate Summary Application Policy table
    Description of business-model-and-mapping.png follows
    Description of the illustration business-model-and-mapping.png

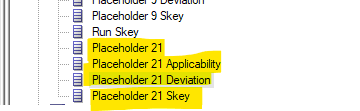

  5. In BMM Layer Rename the columns as below.
    • PLC_21 to Placeholder 21
    • PLC_21_APPL to Placeholder 21 Applicability
    • PLC_21_DEV to Placeholder 21 Deviation
    • PLC_21_SKEY to Placeholder 21 SKey

    Description of renaming-columns.png follows
    Description of the illustration renaming-columns.png

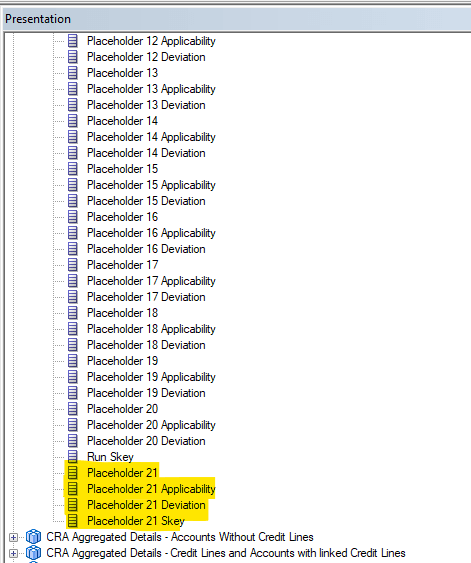

  6. Move the columns from BMM Layer to Presentation Layer.

    Subject Area: CRA Aggregate Summary Application Policy

    Presentation Table : Fact CRA Aggregate Summary Application Policy

    Figure 4-10 Prentation


    Description of Figure 4-10 follows
    Description of "Figure 4-10 Prentation "

  7. Save and deploy the rpd.
