A.22.6 How to Monitor Batch

To monitor the batch, follow these steps:
  1. On the Orchestration menu, click Monitor Batch.
  2. Select the desired batch name from the drop-down list.
  3. Choose the batch ID that has to be monitored.
  4. Click Start Monitor to start monitoring the batch.

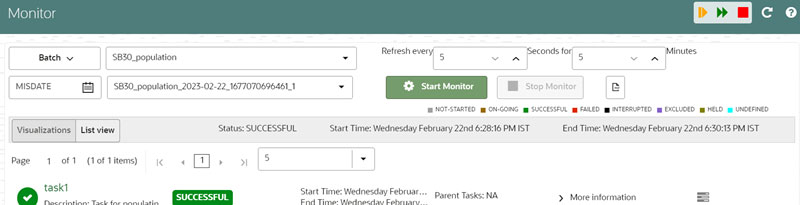

    Figure A-26 Monitor


    Description of Figure A-26 follows
    Description of "Figure A-26 Monitor"

  5. Click List View to view the status of the batch.
  6. After the batch has been successfully executed, the status for the batch will be “successful”.

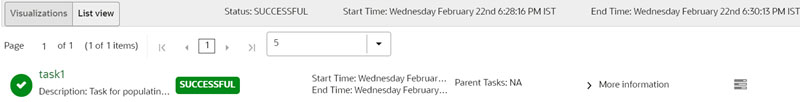

    Figure A-27 List View


    Description of Figure A-27 follows
    Description of "Figure A-27 List View"

  7. For further verification of the successful batch execution, navigate to "Home > /Modeling / Pipelines/AIF Batch Framework/Unsupervised ML/Historical Data," where the draft is located.

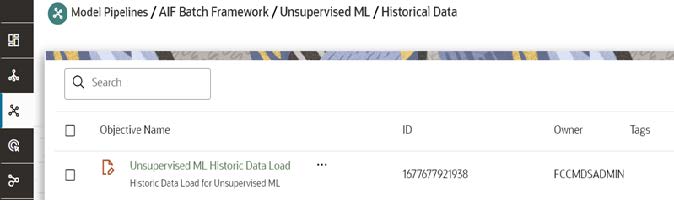

    Figure A-28 Historical Data


    Description of Figure A-28 follows
    Description of "Figure A-28 Historical Data"

  8. Click the Action icon next to <Objective Name> to view the list of options. The following page is displayed.

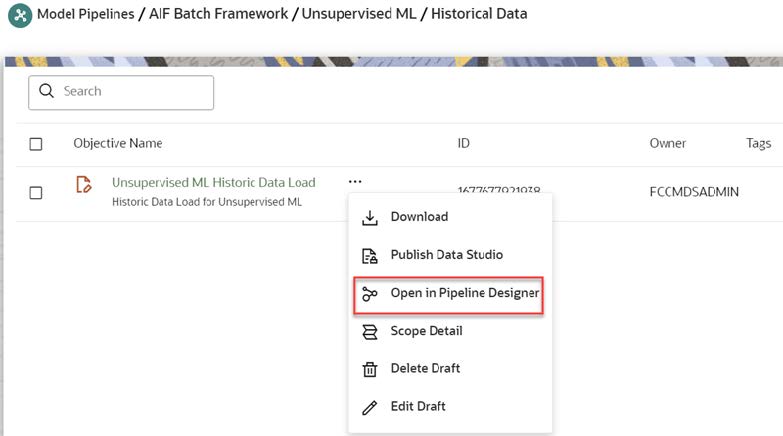

    Figure A-29 Option list


    Description of Figure A-29 follows
    Description of "Figure A-29 Option list"

  9. Click Open in Pipeline Designer and click Notebook tab.
  10. Verify if all the draft paragraphs have been executed successfully and displayed no failure messages.

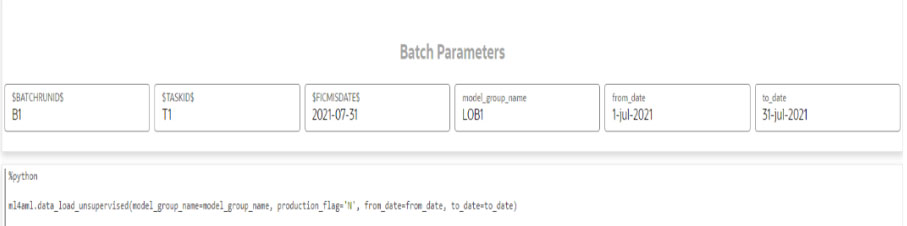

    Figure A-30 Batch Parameters


    Description of Figure A-30 follows
    Description of "Figure A-30 Batch Parameters"

    Note:

    If batch execution fails, check logs in the <COMPLIANCE_STUDIO_INSTALLATION_PATH>/deployed/logs/ execution/<Batch_Executed_date>/<Sandbox_Workspace>/ workspace-population directory for debugging.

    For example, <COMPLIANCE_STUDIO_INSTALLATION_PATH>/ deployed/logs/execution/2024-02-20/AIF/workspacepopulation directory.
