2.8.4.5 Configure the PGX Service

This section describes how to configure the PGX service.

Note:

This section is applicable for both fresh installation and upgrade activity.

PGX (Parallel Graph AnalytiX) is a graph toolkit from Oracle that provides graph analysis on large scale graphs, to extract insights hidden in the connections across datasets between entities. Using built-in and custom graph algorithms, graph-pattern matching queries, and other enhanced graph analytics features, PGX helps investigators in conducting meaningful investigations and making actionable recommendations.

PGX service can be configured on the same server where Compliance Studio is installed or on a different server.

To install PGX service:

  1. Navigate to the <COMPLIANCE_STUDIO_INSTALLATION_PATH>/pgx/pgx-server/ directory.
  2. Perform the following:
    • If PGX service is to be installed on the same server where Compliance Studio is installed, extract the pgx-server-<version>.zip file.
    • If PGX service is to be installed on a different server:
      • Copy the pgx-server-<version>.zip file to the PGX server
      • Extract the pgx-server-<version>.zip file
  3. Navigate to the <PGX_HOME>/pgx-server/conf directory and copy the following files:
    • studio_server.p12
    • graph-keystore.p12
    • public.key

    Note:

    If applicable, configure the following properties.

    In the server.conf file, configure the following properties:

    • enable_tls: false
    • enable_client_authentication: false
    • The property value is true by default, which means that the SSL certificate is enabled and recommended. Change to false only if you do not have the SSL certificate enabled.
  4. Navigate to the <PGX_HOME>/pgx-server/bin directory and configure the config.sh file as described in the follwing table.

    Table 2-13 Config.sh file for PGX

    Interaction Variable Name Significance
    PGX_SERVER_OFF_HEAP_MB

    Indicates the maximum off-heap memory size in megabytes (mainly used for storing graphs except for their string properties) that PGX tries to respect.

    Recommended Value: 42% of the PGX server memory limit size above.
    PGX_SERVER_ON_HEAP_MB

    Indicates the maximum and minimum heap memory size (mainly used for storing graphs' string properties) for the Java process of PGX.

    Recommended Value: 58% of the PGX server memory limit size above.
    PGX_SERVER_YOUNG_SPACE_MB Indicates the amount of young space (new space) configured for the java heap.
    GRAPH_SERVICE_URL

    It indicates external service configuration where the Graph service is available.

    For example:

    https://<Compliance Studio fully qualified hostname>:7059/graph-service
    GRAPH_KEYSTORE_PASSWORD Indicates the password of the keystore file, which stores the password of the graph schemas.
    PGX_SERVER_SSL_ENABLED

    By default, the property value is true which means the SSL certificate is enabled and recommended.

    Note: Change it to false only if you do not required the SSL certificate.

    PGX_SERVER_KEYSTORE_ALIAS It indicates the alias name provided when generating a self- signed server keystore for PGX.
    PGX_SERVER_KEYSTORE_FILE_PATH It indicates the absolute path of the server_keystore.jks file, which is generated during Generating a Self-Signed Server Keystore for PGX.
    PGX_SERVER_KEYSTORE_PASSWORD It indicates the password created while generating a Self- signed server keystore for PGX.
    SHUTDOWN_GRACE_PERIOD

    It indicates the grace period in minutes for the graceful shutdown of the PGX Server. To set value, uncomment and set the value.

    Note:

    • The value should be an integer.
    • If the value is less than 1, then force shutdown is triggered immediately.

    Note:

    You can generate the graph-keystore.p12 file after starting the Compliance Studio.
  5. Navigate to the <PGX_Installation_Path>/pgx-server/bin directory and run any one of the following commands:

    ./pgx-server.sh –install

    Or

    ./pgx-server.sh -i

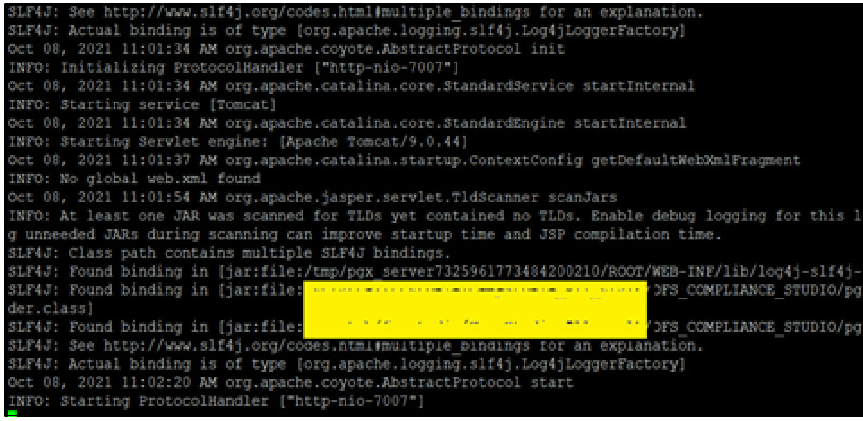

    Figure 2-16 PGX start service

    Description of Figure 2-16 follows
    Description of "Figure 2-16 PGX start service"
  6. Start the PGX service.
    To start the PGX service:
    1. Navigate to the path where the PGX service is installed.
    2. Navigate to the following directory where the start service for PGX is located:
      <PGX_Installation_Path>/pgx-server/bin
    3. Run any one of the following commands:

      ./pgx-server.sh --start

      Or

      ./pgx-server.sh -s

  7. Stop the PGX service.
    To stop the PGX service, run any one of the following commands:

    ./pgx-server.sh --stop

    Or

    ./pgx-server.sh -k

  8. Force Stop the PGX service.
    To force stop the PGX service, run any one of the following commands:

    ./pgx-server.sh --force-stop

    Or

    ./pgx-server.sh -f

  9. Restart the PGX service.
    To restart the PGX service, run any one of the following commands:

    ./pgx-server.sh --restart

    Or

    ./pgx-server.sh -r

  10. Reinstall PGX service with updated configuration.

    To update configuration in PGX service in case of wrong configuration, run any one of the following commands:

    ./pgx-server.sh –-update

    Or

    ./pgx-server.sh -u
