9.3.3 Cloning Match Ruleset

Use this topic to clone ruleset from an existing match rule.

You can also modify the ruleset name, description, source or target entities and attributes for these rulesets.

To clone an existing match rule, follow these steps:

1. Click Launch Workspace next to corresponding Workspace to Launch Workspace to display the Dashboard window with application configuration and model creation menu.
2. On Modeling menu, click Graphs. The Graph page is displayed.

   Figure 9-7 Graph Summary





   Description of "Figure 9-7 Graph Summary"



3. Hover over the graph pipeline and click edge on the graph. The Edge details page is displayed.

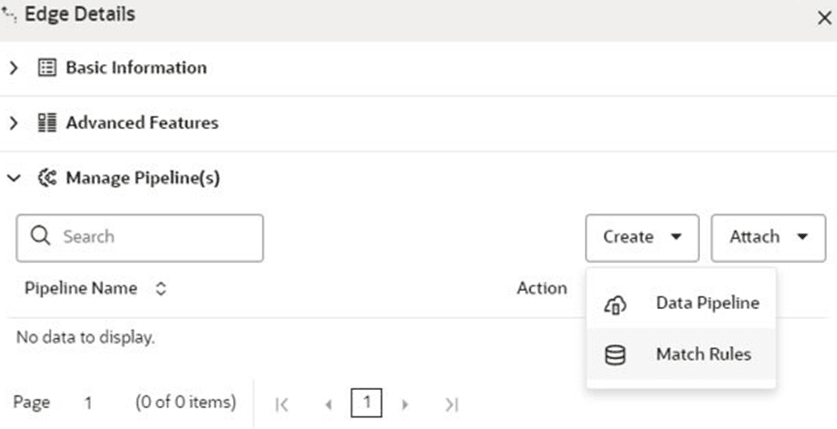

   Figure 9-8 Edge Details





   Description of "Figure 9-8 Edge Details"



4. From the Create drop-down list, select the Match Rules. The Create Pipeline window is displayed.

   Figure 9-9 Create Pipeline





   Description of "Figure 9-9 Create Pipeline"



5. Select Clone From an Existing Match Rule option and required pipeline from the Select Pipeline drop-down list and then click OK. The Match Ruleset window is displayed.

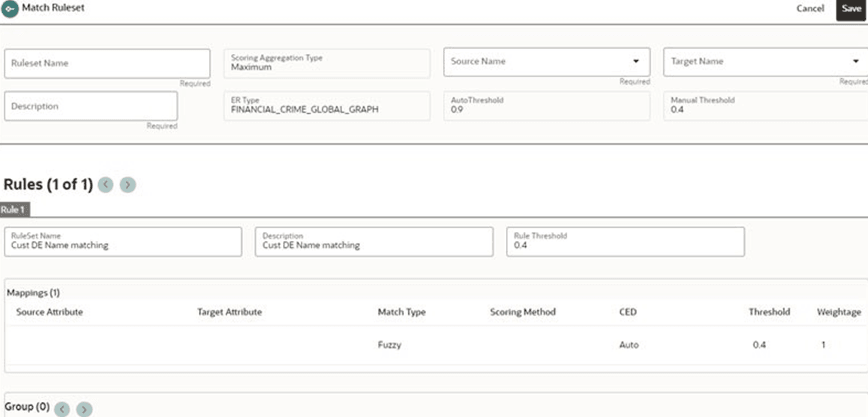

   Figure 9-10 Match Ruleset Details





   Description of "Figure 9-10 Match Ruleset Details"



6. You can enter/select the Ruleset details for the following fields:
   • Ruleset Name
   • Source
   • Target
   • Description
   For information on the fields in the Ruleset Details window, see the Creating Match/Merge Ruleset section.

   Note:

   For cloning an existing match rule, the selected source and target attributes must be same as the source and target attributes of the existing match rule.
7. Click Save. The new match ruleset is cloned.
