J PMF Configurations for Pool of Analyst

To configure the PMF Pool of Analyst configuration to set the new statuses, follow these steps:

1. Perform the following queries and introduce new status in the following tables.
   • Select t.*,rowid from AAI_WF_STATUS_B t where t.v_app_package_id in ('OFS_CS_RT');
   • Select t.*,rowid from AAI_WF_STATUS_TL t where t.v_app_package_id in ('OFS_CS_RT');
   • Create unique v_status_id in AAI_WF_STATUS_B table and map the same in the AAI_WF_ STATUS_TL table and fill all the other columns data. This data will show in the PMF screen while mapping new status.

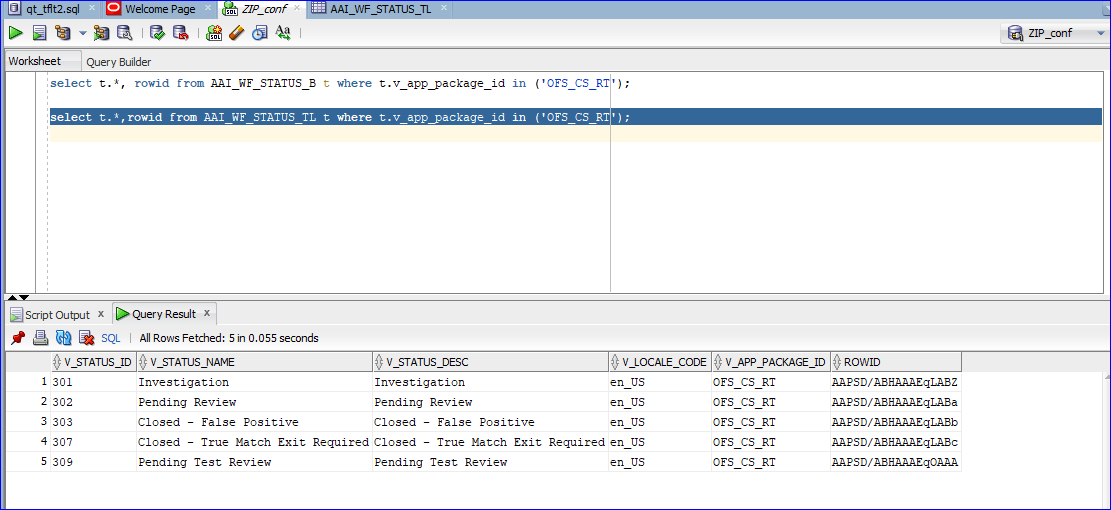

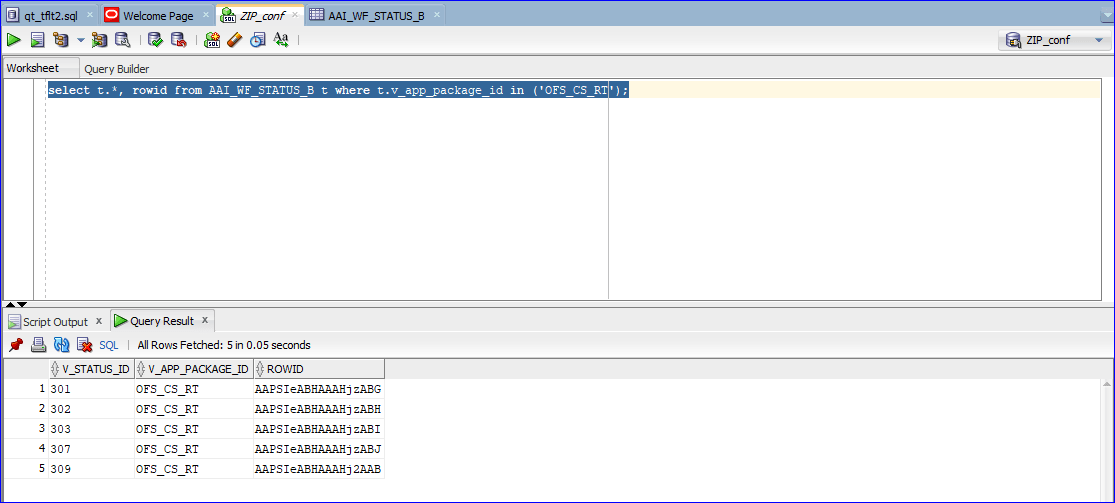

     Figure J-1 Example 1









     Figure J-2 Example 1 (Contd.)








2. Perform the following query and introduce new Outcome in both the following tables.
   • Select t.*, rowid from AAI_WF_OUTCOME_B t;
   • Select t.*, rowid from AAI_WF_OUTCOME_TL t;
   • Create unique outcome id in AAI_WF_OUTCOME_B table and map the same in AAI_WF_OUTCOME_ TL table and provide other columns data.

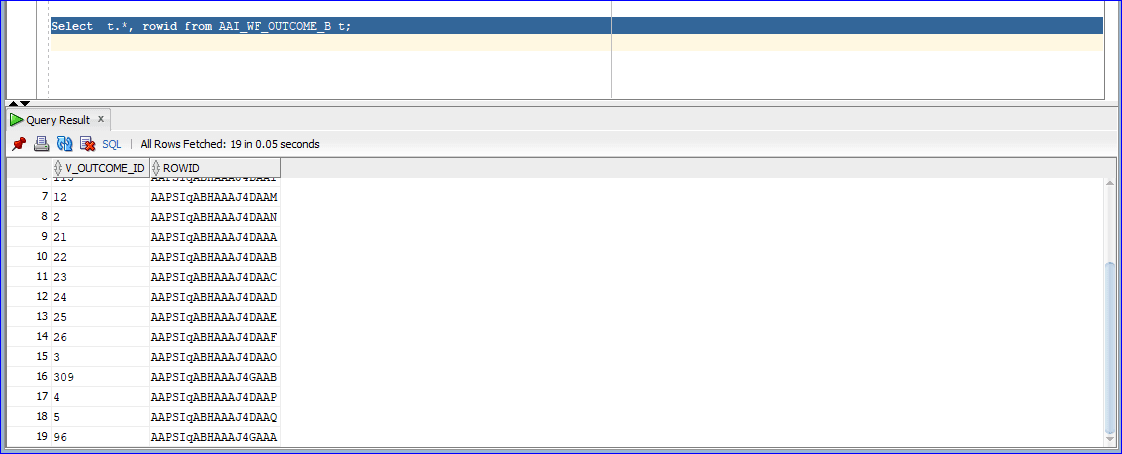

   Figure J-3 Example 2

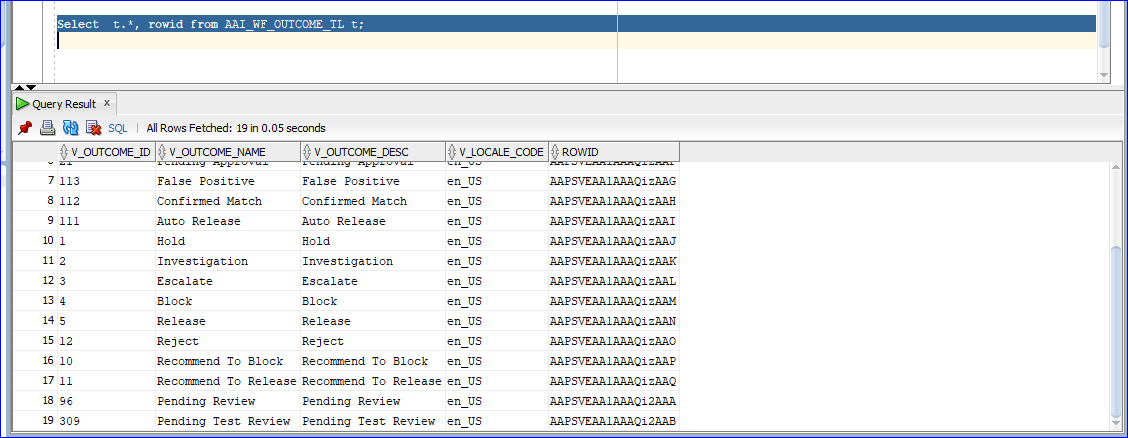

   Figure J-4 Example 2(Contd.)








3. In the atomic schema, do the configuration for the following tables:

   Select t.*,rowid from FCC_ZCS_STATUS_dim t;

   Select V_STATUS_CODE, V_STATUS_CODE from fcc_zcs_status_dim;

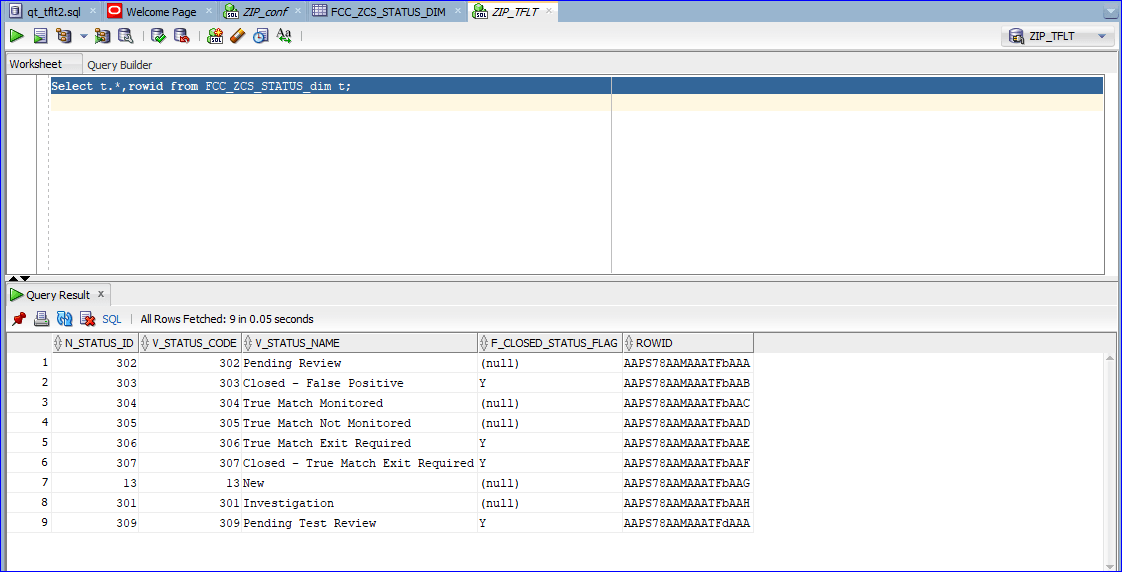

   Figure J-5 Example 3

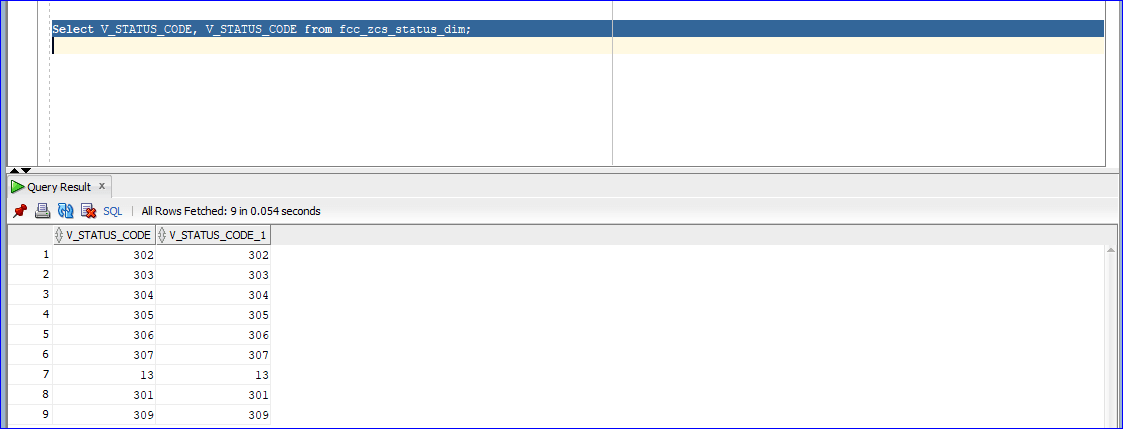

   Figure J-6 Example 3 (Contd.)








4. In the following table do the security attribute mapping for the new workflow:

   Select t.*, rowid from FCC_ZCS_SECURITY_ATTR_GRP_MAP t;

   In the following table, add the two entries:

   Select * from cs_appln_params;

   For the entry ZCS_ENBL_ANLYST_POOL, the value must be Y and for the entry POA_CHECK_STS_CODES, add the status code of the newly created status.

5. Create Human task in PMF screen that you want to introduce in-between existing status or you want to introduce new status or create separate status.

   Activity

   -------------- Activity Name*

   Activity Description

   Status* - New Status Name.

   Outcomes - Where has to go (Destination Status).

   Example: If we have to introduce a new status between Investigation to Pending Review, first add the new activity as shown in the following Figures (Pending Test Review).

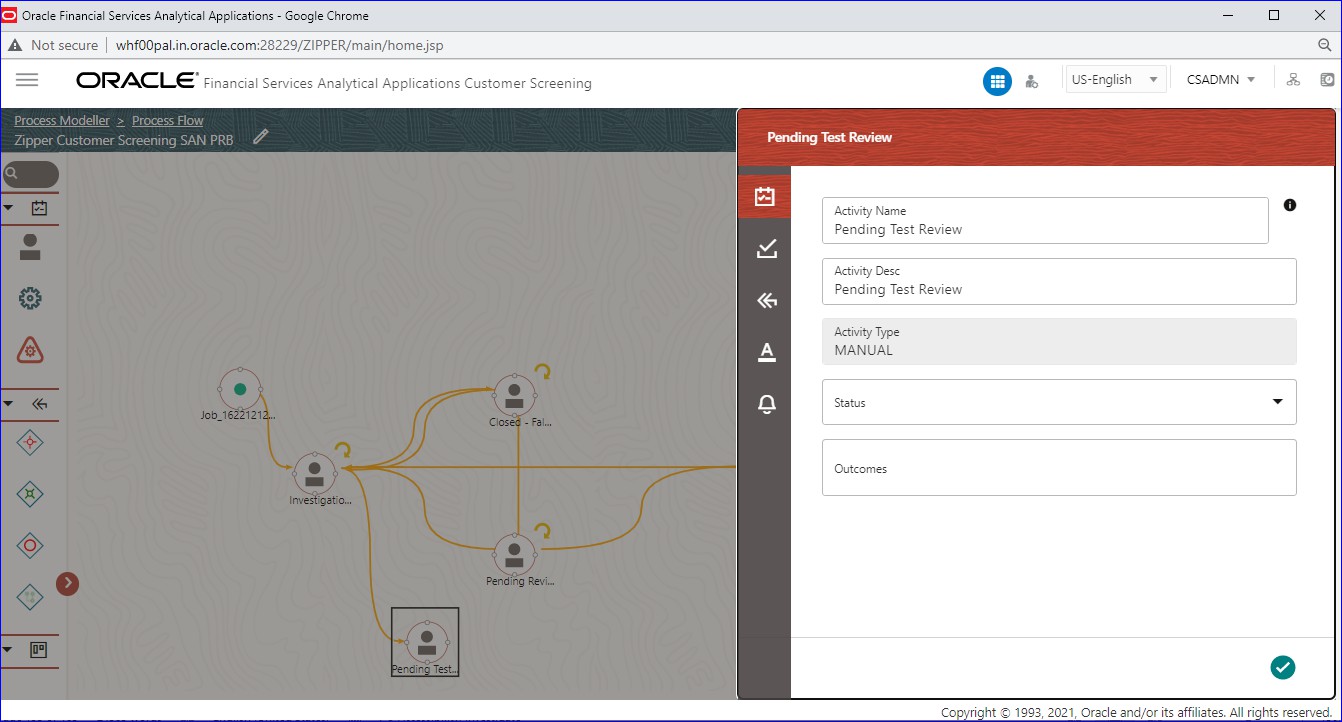

   Figure J-7 Activity Statuses









   Transitions

   ------------------

   Add ->

   Transition Name - Unique Name for the particular Transition.

   Connected To – Destination status.

   Decision Rule - Map to decision rule for particular status.

   Order - 1

   Stroke – Default.

   Example: First Transition between Investigation to Pending Test Review the next one between Pending Test Review and Pending Review.

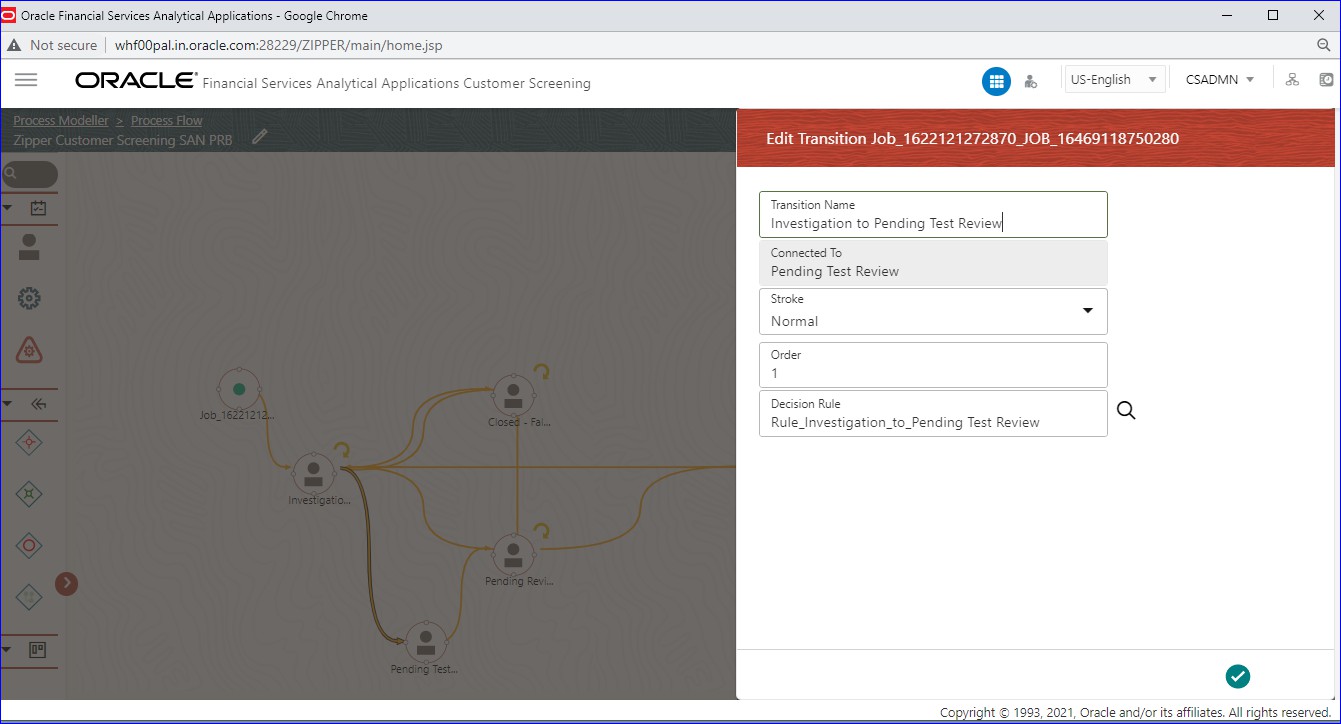

   Figure J-8 Edit Transaction – Pending Test Review

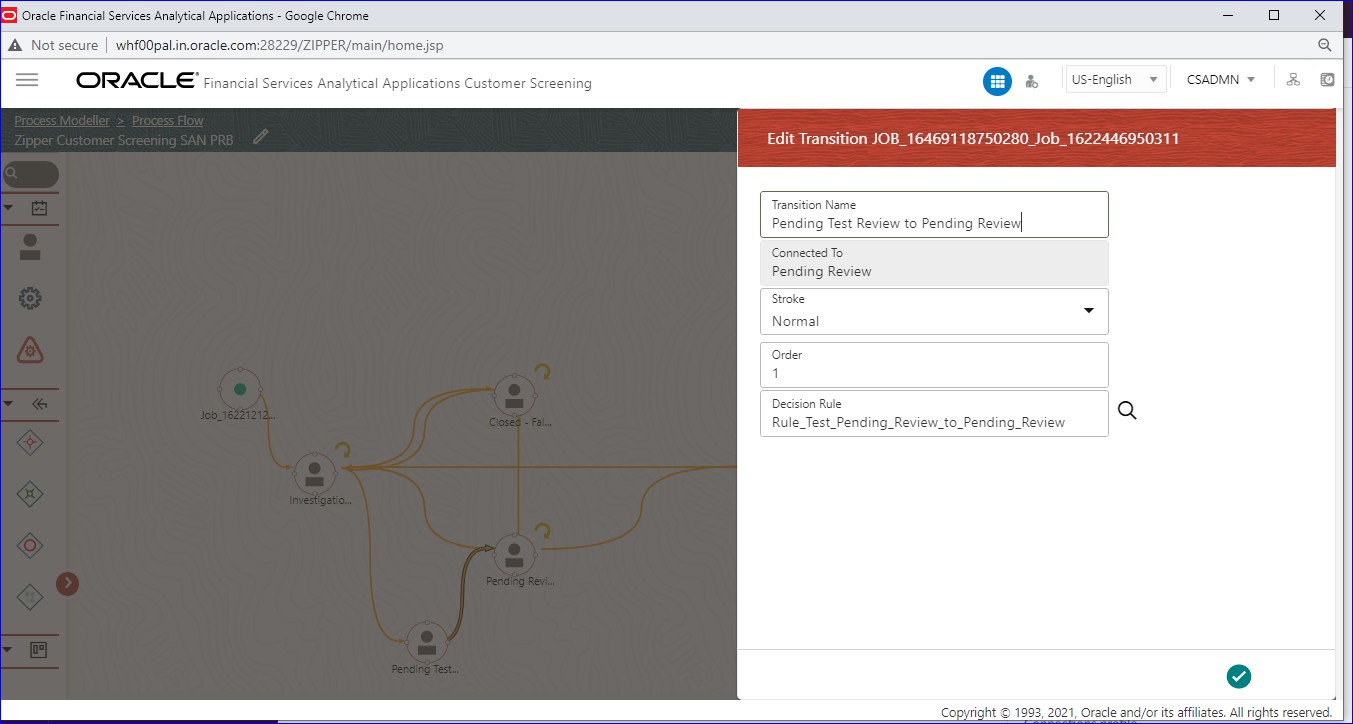

   Figure J-9 Edit Transaction – Pending Review









   In Transition Decision Rule Map the specified rule for the current status. Or create as per business requirement.

   Example: For the decision rules, add the following 2 decision rules.

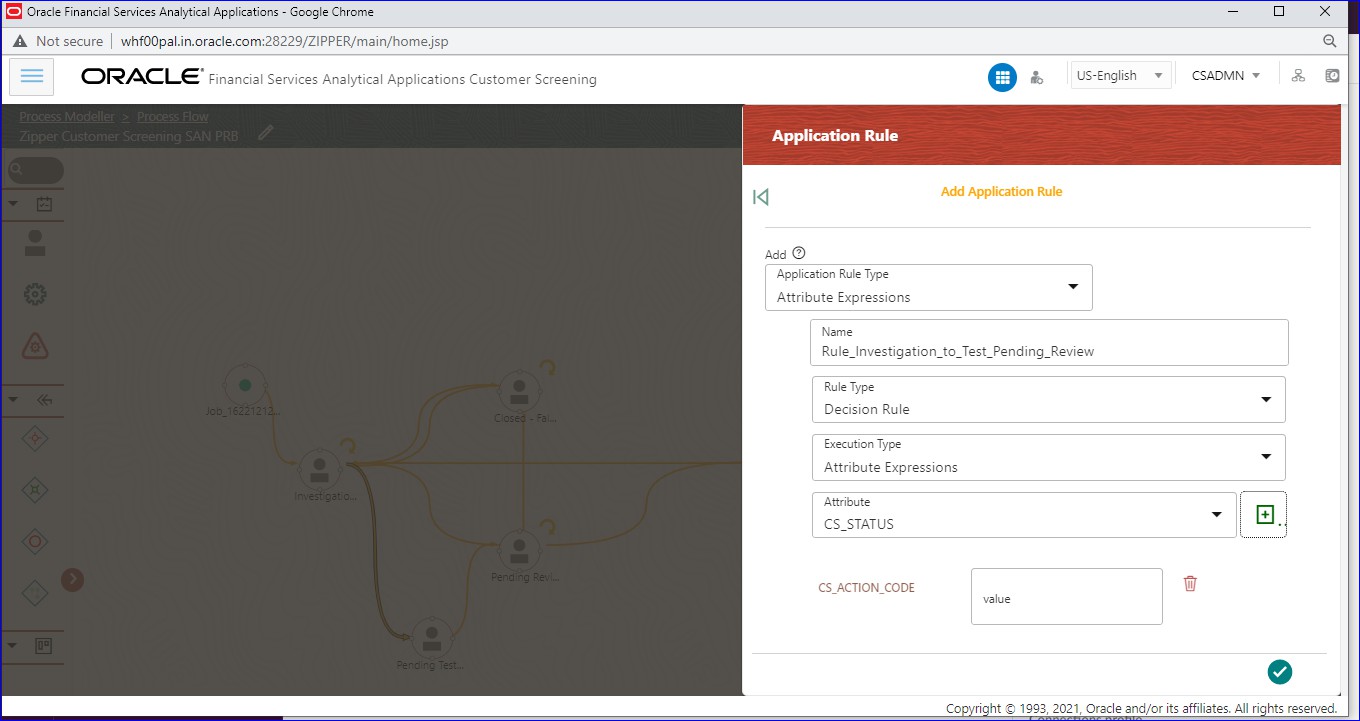

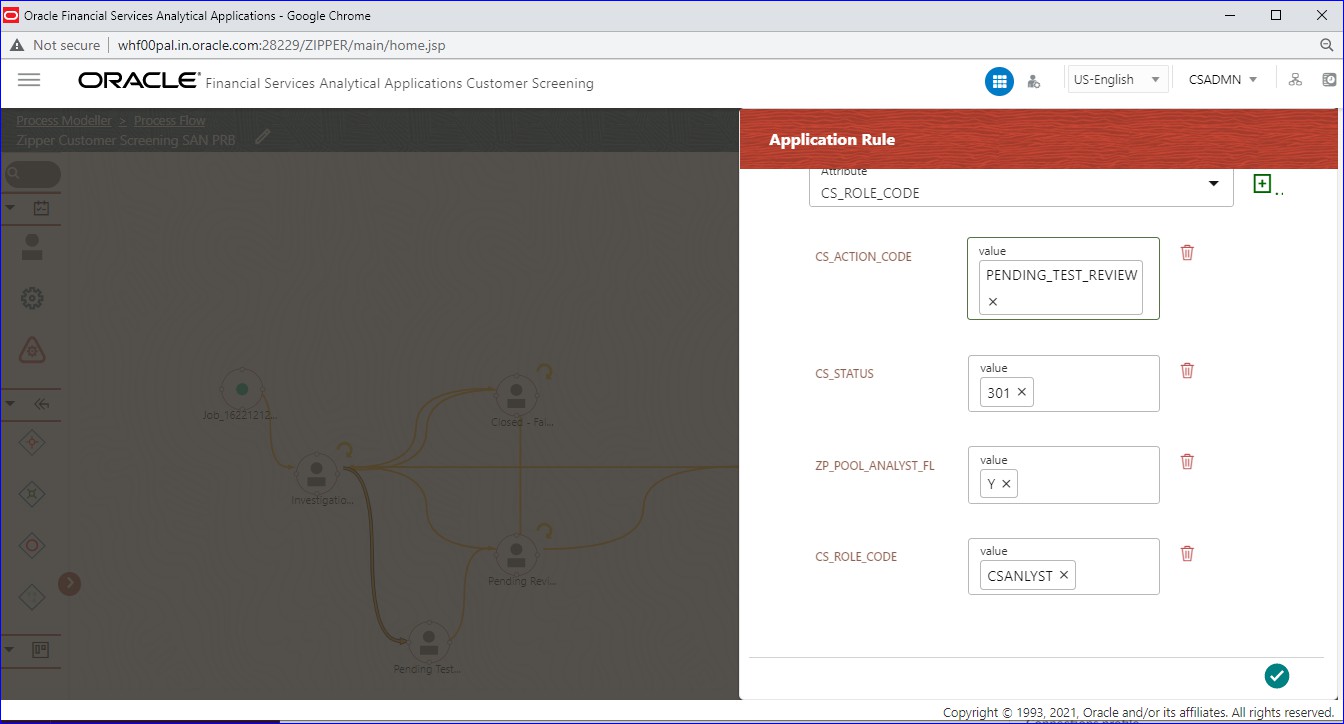

   Figure J-10 Rule Details – Decision Rule 1









   Figure J-11 Rule Details – Decision Rule 1

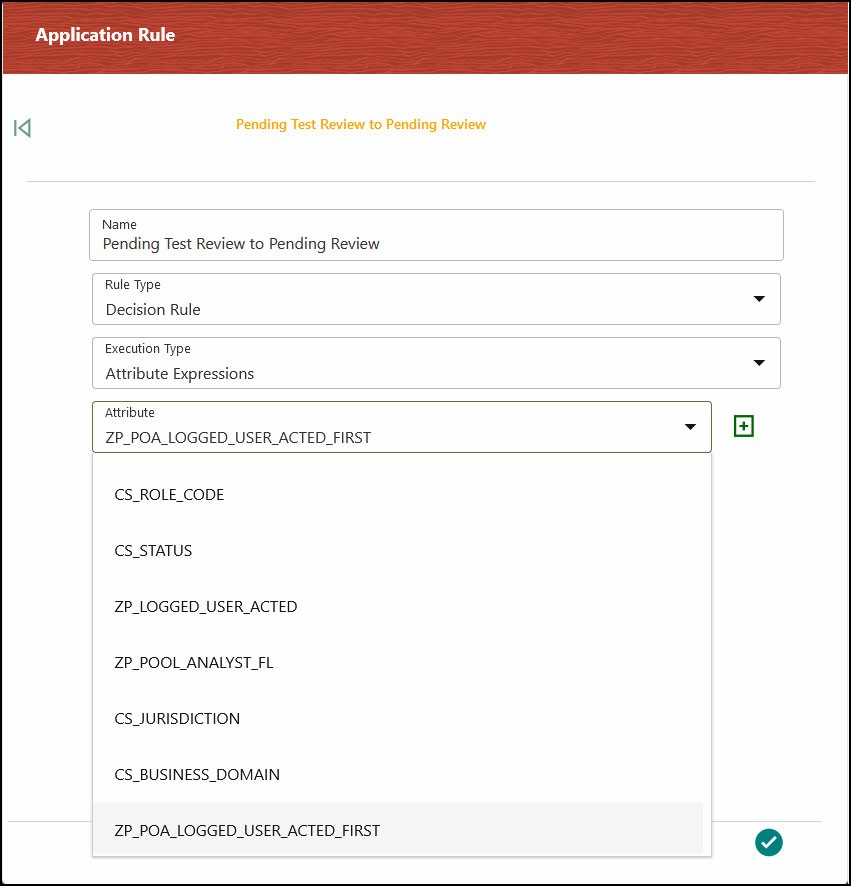

   Figure J-12 Rule Details – Decision Rule 2

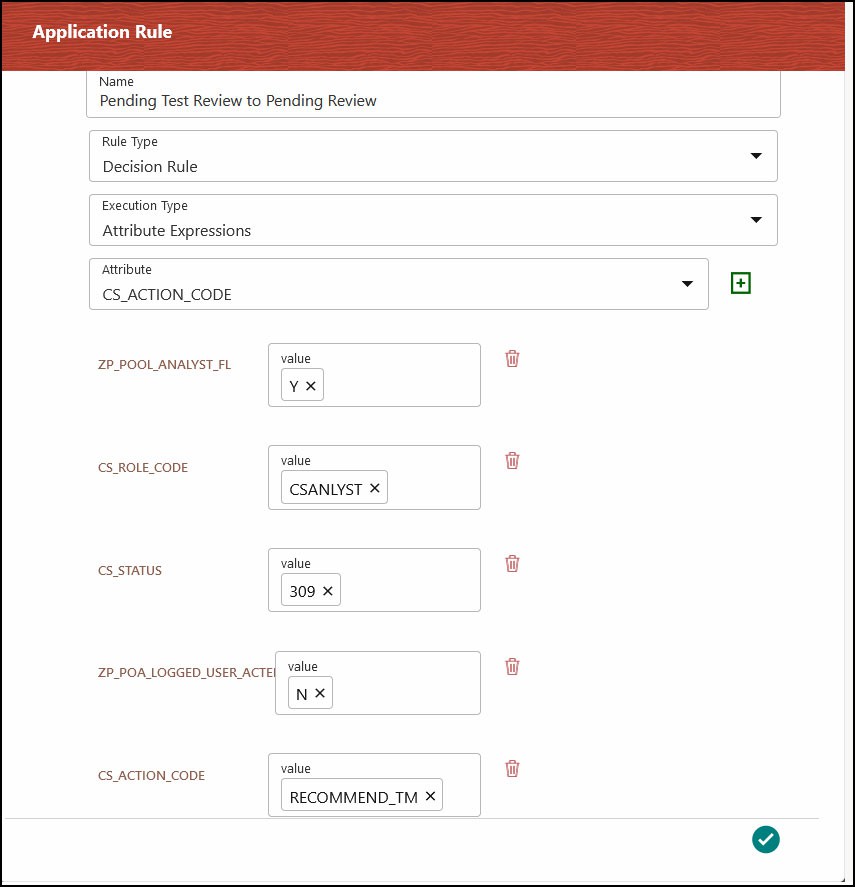

   Figure J-13 Rule Details – Decision Rule 2









   Edit the existing decision rule, by adding the ZP_POOL_ANALYST_FL.
