4.20 Addition of Extra Fields in Customer Details section

You can add extra fields for comparison in the Customer Details section of the Alert Details page and configure the fields to display in the Customer Details main page UI.

To add extra fields in Alert Details page UI follow the subsequent steps:

1. From the FCC_ZCS_CUST table select a field name to display in Customer Details section.
2. Create an entry in MESSAGES_EN_US table for the selected field name.
   For example, for TAX_ID field create an entry with message identifier as ZCS_TAX_ID in MESSAGES_EN_US table.

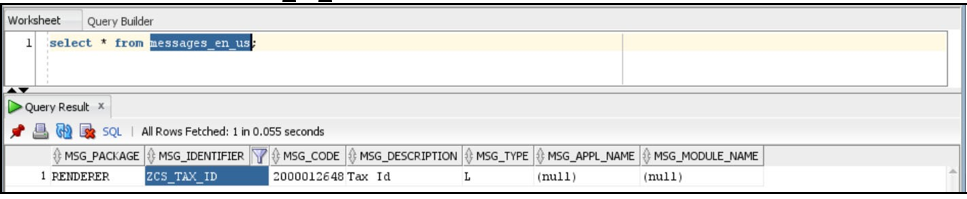

   Figure 4-49 MESSAGE_EN_US table








3. After successful addition of field entry in the MESSAGES_EN_US table restart the server.
4. Rename field name by removing the underscore and converting the name from upper to lower case.
   For example, rename from TAX_ID to taxid.
   Check and validate that the Renamed field name exist in CS API response.
   Following is a sample Customer Details API response:
   [{"custId":"E000312","custaddeddate":"2010-09- 23","incdate":null,"custtype":"ORG","marriedstatus":null,"citizenship":n ull,"asset":null,"fullname":null,"firstname":null,"middlename":null,"las tname":null,"originalname":"Brookson (g) Limited","aliasname":null,"sourceofwealth":null,"dob":null,"age":null,"r esidencecode":null,"countryofbirth":null,"country":null,"publicprivate": null,"foriegnpublicoff":null,"dpt":null,"compensateflag":null,"employeme ntstatus":null,"creditrating":null,"workforfi":null,"creditscore":null," employername":null,"retirementyear":null,"custSeqId":"5331","jurisdictio n":"Default","busdmn":"DEFAULT","datadumpdt":"2023-03-06 10:29:56","srccustseqid":"740","fnclprfllastupdtdt":null,"taxid":"TX_789 10","taxidfrmtcd":null,"annlincmbaseam":null,"netwrthbaseam":null,"lqdne twrthbaseam":null,"eqtyknldgcd":null,"bndknldgcd":null,"optnknldgcd":nul l,"ovrallknldgcd":null,"ovrallexpcd":null,"eqtyexpyrqt":null,"bndexpyrqt ":null,"optnexpyrqt":null,"annleqtytrdqt":null,"annlbndtrdqt":null,"annl optntrdqt":null,"avgeqtytrdam":null,"avgbndtrdam":null,"avgoptntrdam":nu ll,"suffnm":null,"titlnm":null,"form407fl":null,"ctzshpcntry1cd":null,"c tzshpcntry2cd":null,"ocptnnm":null,"ageyrct":null,"ctzshpstatcd":null,"s rcsyscd":null,"orglglstruccd":null,"pwdlastchgdt":null,"mplyrinduscd":nu ll,"jobtitlnm":null,"cstm1dt":null,"cstm2dt":null,"cstm3dt":null,"cstm1r l":null,"cstm2rl":null,"cstm3rl":null,"cstm1tx":null,"cstm2tx":null,"cst m3tx":null,"totacctct":null,"custefctvrisknb":"0","cstm4tx":null,"cstm5t x":null,"fnclinstnidtypecd":null,"fnclinstnid":null,"instnseqid":null,"c ustlistrisknb":null,"custlistsrccd":null,"custmatchtx":null,"custmatchty pecd":null,"custbusrisknb":"0","custgeorisknb":"0","cstmrisk1nb":"0","cs tmrisk2nb":"0","daytrdknldgcd":null,"daytrdexpcd":null,"annlincmrptgam": null,"netwrthrptgam":null,"lqdnetwrthrptgam":null,"prcsngbatchnm":"CS"," jrsdcncd":null,"busdmnlisttx":null,"rptgcrncycd":null,"mantascustbustype cd":null,"custefctvriskfactrtx":null,"custpeergrpintrlid":null,"custstat cd":"Active","taxtncntrycd":"SWIZ","custinduscd":null,"rgstntypecd":"AU" ,"altcustid":null,"incmrngcd":null,"custgndrcd":"M","custnaicscd":null," maxdailyatmwdrwlam":null,"recalcitrantfl":null,"nonusctznresfl":null,"no nusdocholderfl":null,"certlossnationfl":null,"fatcaexemptcd":null,"govtd ocfl":null,"thrdpartycdtrptfl":null,"frgntaxrptngcertfl":null,"exceptedn ffefl":null,"fatcaorgtypecd":null,"geojrsdcncd":null,"cpifl":null,"ultmt instlcustintrlid":null,"cmdtyknldgcd":null,"cmdtyexpyrqt":null,"avgcmdty trdam":null,"annlcmdtytrdqt":null,"emprlshptypecd":null,"dmcldbrchorgid" :null,"giin":null,"giinissuedt":null,"custsubtypecd":null,"ficmisdate":" 2023-03-06 00:00:00","runskey":"102","dataorigin":"CS","applicationid":null,"branch cd":null,"cddruleexempt":null,"cddruleexemptreason":null,"cipexcemptflag ":null,"cipexcemptreason":null,"relationshipteamcd":null,"request314":nu ll,"stockexchgcd":null,"tickersymbol":null,"websiteurl":null}]
5. Go to the subsequent path and open the Details creen.js file.
   <deployed-context>/CustomerScreening/js/viewmodels
6. Search for customeridtolabelmap JSON object. Add a new entry inside customeridtolabelmap JSON object and Save it.
   For example, add the below entry for Tax ID:
   "taxid": {
   label: CSMessageConstants.ZCS_TAX_ID,//"Tax Id",
   order: 50, Displayinmain: "Y"
   }
   The entry consist of the following information:

   • Label: Name of the field to display in the screen
   • Order: Order of the field to display
   • Displayinmain: Enter the value Y to display in the customer details main page or Enter N to display in the View Full Comparison page.
7. Go to the subsequent path and open the CSMessageConstants.jsp file.
   <deployed-context>/CustomerScreening
8. Create a new entry in the CSMessageConstants.jsp file for the field and save it.
   For example, for the Tax_ID field create an entry as below:
   CSMessageConstants.ZCS_TAX_ID="<%=MessageFramework.getMessageFromLocaleS peficCache("RENDERER.ZCS_TAX_ID", currentMsgLocale.toString())%>";
