R.1 Configuring through the UI

Follow the subsequent steps to configure the zeppelin.interpreter.output.limit through the UI:

Using the Wizard Screen:

1. Click the User Icon right top corner.
2. Go to Data Studio Options.
3. Click Interpreters. The Interpreters page is displayed.
4. select the python interpreter for which you want to configure the zeppelin.interpreter.output.limit.
5. Select python from the LHS options.
6. Click the Wizard Icon.
7. From the RHS side, click oracle.datastudio.python.DsPythonInterpreter under Interpreter Client Configurations. The Interpreter Client Configuration pop-up is displayed.
8. Under Properties, click +Properties. The Properties pop-up is displayed.
9. Fill the options as shown in following figure. Set the default value to 870400 (for 1000 records approx.).

   Figure R-1 spring-postSacalert.properties file









   Note:

   • Configuration using the Wizard screen is preferable to other ways of configuration.
   • If the data is more than 1000 records, update the zeppelin.python.maxResult in properties to the desired value and zeppelin.interpreter.output.limit as 870.4 x maxResult.
   • If you cannot see the Create and Cancel buttons, click on the header label of the Properties window.
   • The default value for zeppelin.interpreter.output.limit i is 102400 (in bytes)
   • Increasing the default value from 102400 bytes to an immense value will slow down the rendering of outputs of python paragraphs.
10. Click Create. The Interpreter Client Configuration pop-up is displayed and zeppelin.interpreter.output.limit is displayed under Properties.
11. Click Confirm. The Interpreter Client Configuration window is displayed.
12. Click Update.
13. Restart the Compliance Studio application to reflect the changes.

Configuration through JSON Screen:

1. Click the User Icon right top corner.
2. Go to Data Studio Options.
3. Click Interpreters. The Interpreters page is displayed.
4. select the python interpreter for which you want to configure the zeppelin.interpreter.output.limit.
5. Select python from the LHS options.
6. Click the Icon. The JSON configuration screen is displayed.
7. Scroll down and locate interpreterClientConfigs with className oracle.datastudio.python.DsPythonInterpreter. you can find the properties section with zeppelin configurations.
8. Add the zeppelin.interpreter.output.limit. See the following figure.

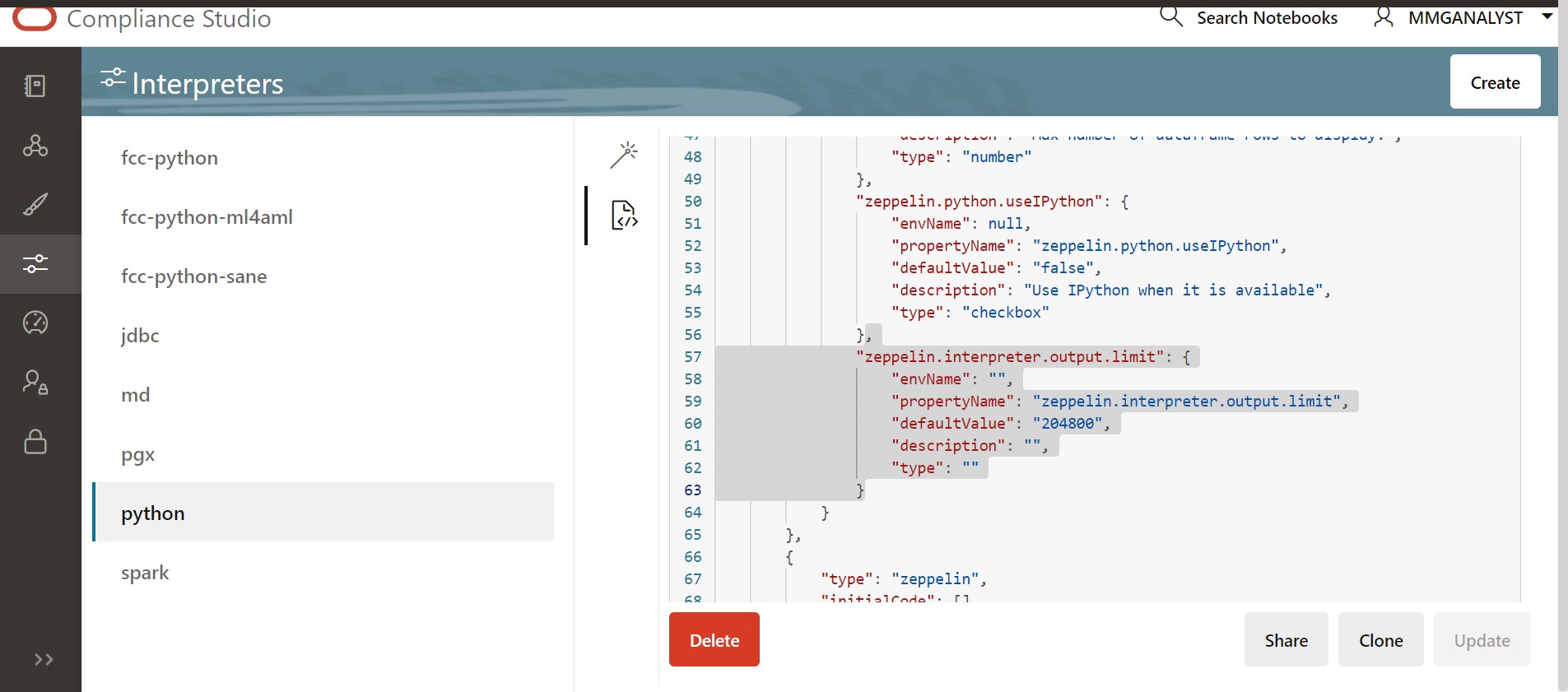

   Figure R-2 JSON Screen








9. The update button will be enabled in the bottom right corner after the JSON modification. Click Update.
10. Restart the Compliance Studio application to reflect the changes.
