5.3.1 SILENT Mode Installation

In the SILENT Mode Installation you must configure the product xml files and follow the instructions in command prompt.

To install OFS Sanctions in SILENT mode, follow these steps:

1. Log in to the system as non-root user.
2. Identify a directory for installation and set the same in the user .profile file as follows:

   FIC_HOME=< OFSAA Installation Directory > export FIC_HOME

3. Execute the user.profile.
4. Navigate to OFS_SANC_PACK folder.
5. Edit the OFS_SANC_PACK/conf/OFS_SANC_PACK.xml to enable the product licenses.

   Note:

   See Configuring OFS_SANC_PACK.xml file section for details on configuring this XML file.
6. Edit the OFS_SANC_PACK/schema_creator/conf/OFS_SANC_SCHEMA_IN.xml file to set the appropriate attribute values.
7. Edit the OFS_SANC_PACK/OFS_AAI/conf/OFSAAI_InstallConfig.xml file to set the appropriate infrastructure installation attribute values.

   Note:

   See Configuring OFS_SANC_PACK.xml file section for details on configuring this XML file.

   Note:

   Skip this step if you are installing OFS Sanctions Pack 8.1.2.0 on OFS Sanctions Applications Pack 8.0.8.0.0.
8. Go to <##INSTALLER KIT##>/OFS_SANC_PACK/OFS_TFLT/conf and open default.properties.
9. Provide the infodom name to the parameter SWIFTINFO.
10. Go to <##INSTALLER KIT##>/OFS_SANC_PACK/OFS_CS/conf and open default.properties
11. Provide the infodom name to the parameter SWIFTINFO.
12. Execute the schema creator utility.

    Note:

    • This step is mandatory and should be executed beforeevery OFSAA Application Pack installation.
    • Ensure to execute with -s option in Offline Mode.
      • For more information, refer Configuring OFS_SANC_SCHEMA_IN.xml file .
      • If you are installing OFS Sanctions Pack 8.1.2.0 on a pack on pack environment then following message is displayed during execution of schema creator Utility:
      • The following Application Packs are already installed in this OFSAA setup: bcr_fccm- SANC-CRINF- "OFS_SANCTIONS_PACK"
13. In the console, navigate to the OFS_SANC_PACK/OFS_SANC/bin path, enter the following command to execute the application pack installer with SILENT option.
    ./setup.sh SILENT

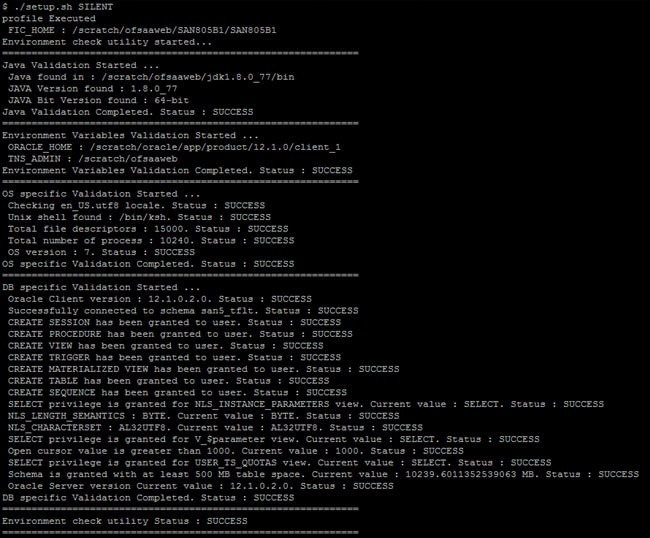

    Figure 5-5 Silent Mode Installation








14. Enter the Infrastructure Application/Database component FTP/SFTP password value, when prompted at the command prompt.

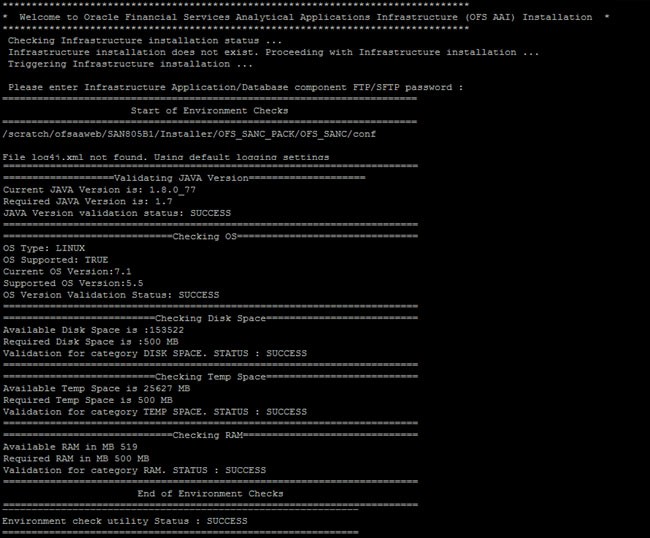

    Figure 5-6 Silent Mode Installation









    Table 6:

    Table 5-1 Console Prompts - Silent Mode installation

    Console Prompts	User Inputs
    Please enter Infrastructure Application/Database component FTP/SFTP password	Enter the password to access Product Staging/Metadata repository directory in the application server. NOTE: In case the prompt reads as follows, enter the username/ password for accessing the product Staging/ Metadata Repository FTPSHARE Kerberos username [user] Kerberos password for user:

15. Enter Always, when prompted to add host key fingerprint. The OFSAAI License Agreement is displayed.

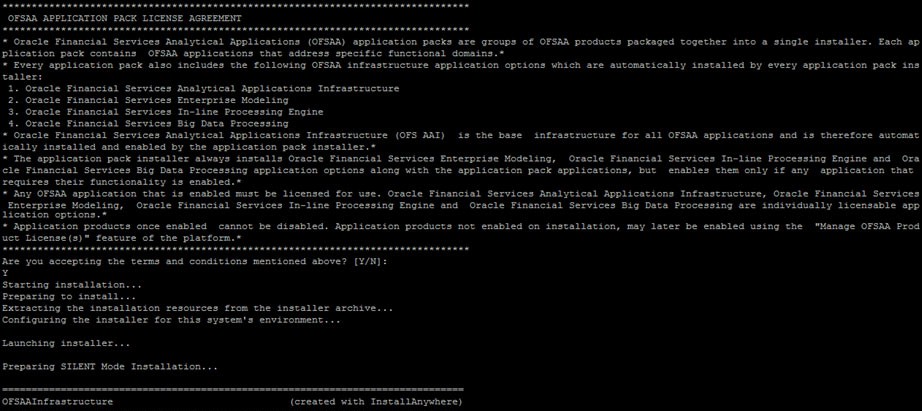

    Figure 5-7 Silent Mode Installation








16. Enter Y/y to accept the License Agreement.
    Note: A default password, password, is displayed for Infrastructure administrator and authorizer users.

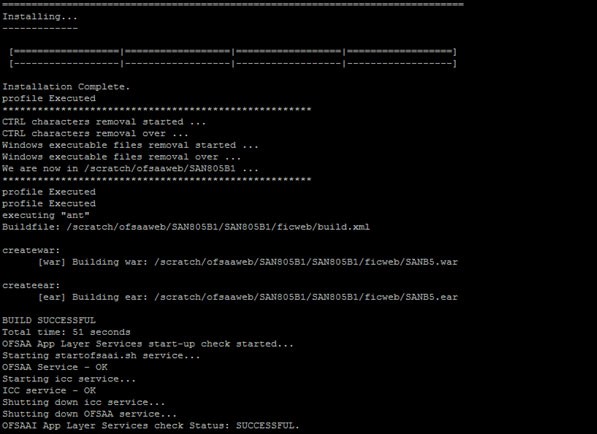

    Figure 5-8 Silent Mode Installation









    Figure 5-9 Silent Mode Installation









    Note:

    The installation process continues on the console. Do not close the console until the installation process is complete.

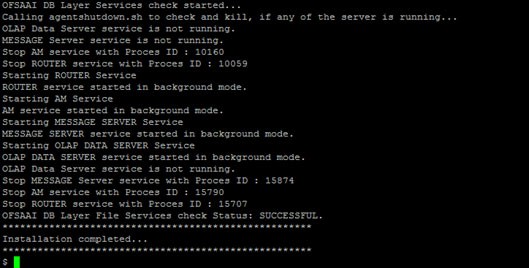

17. The following message is displayed in the console:

    Installation completed…

18. On completion of installation, refer the related installation log files.
19. Apply the following mandatory patches:
    1. Install OFSAAI 8.1.2.1.0 (patch number 33865657)
    2. Install Inline Processing (patch number 34347180)

       (OR)

    3. Apply the latest available AAI Patch (Contact Support).
20. Perform the steps mentioned in Post Installation Configurations section.

Note:

To enable Transparent Data Encryption (TDE), see Configuring Transparent Data Encryption (TDE) and, Data Redaction in OFSAA.

To enable Data Redaction, see Data Redaction section under Data Security and Data Privacy chapter in OFS Analytical Applications Infrastructure Administration Guide 8.1.2.0.
