2.5.3.1 Viewing Application Data Services Connector Details

The View Connector Details feature offers a guided interface for viewing, configuring, and managing connector settings. It provides a summary of the connector configuration, including source and target entities, catalogs, and a brief description of its function.

1. Select the Connector Name from list displayed else click the three dots → View.

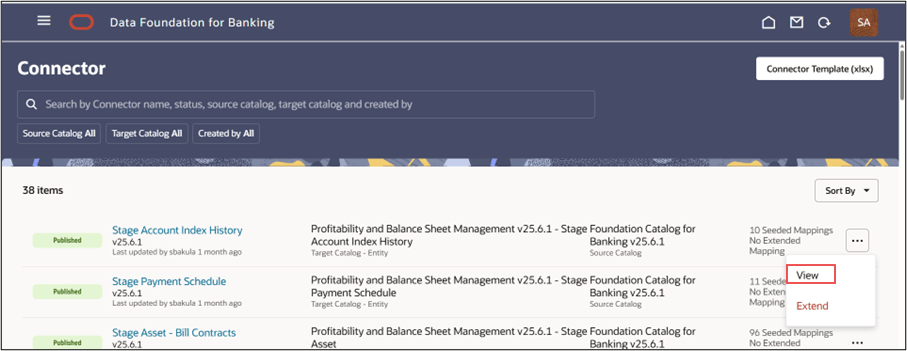

   Figure 2-3 Viewing Connectors








2. The following table describes the view connector details.

   Table 2-11 View Connector Details

   Field	Description
   Connector Name	Predefined field displaying the connector name (e.g., Stage Payment Schedule).
   Description	Brief explanation of the connector’s purpose (e.g., data flow and usage).
   Target Catalog	Verify the catalog where the target entity is located (e.g., Profitability and Balance Sheet Management).
   Target Entity Name	Verify the entity in the target system (e.g., Stage Payment Schedule).
   Source Catalog	Choose the catalog where the source data originates (e.g., Foundation Catalog for Banking).
   Source Entity Name	Select the raw data entity (e.g., Payment Schedule).
   Expression	The expression filters the source data being pulled into the target entity.
