16.10 Validation Rules Dashboard

The Validation Checks Dashboard provides data based on selecting the values from the following list of drop-downs:

• Date
• Run SKey
• Entity Name
• Reports
• Rule Type
• Status

Click Apply to generate the reports.

Click Reset to reset the values.

The generated report contains the following details:

• Report Code: Provides the value that you selected in the Report drop-down box.
• Rule ID: Provides the Rule ID details.
• Rule Type: Provides the value that you selected in the Rule Type drop-down box.
• Severity: Provides the configured severity details of the rule (for example, Error, Warning, etc.)
• Rule Description: Provides the rule description.
• Status: Provides the status of the rule in terms of Pass or Fail.

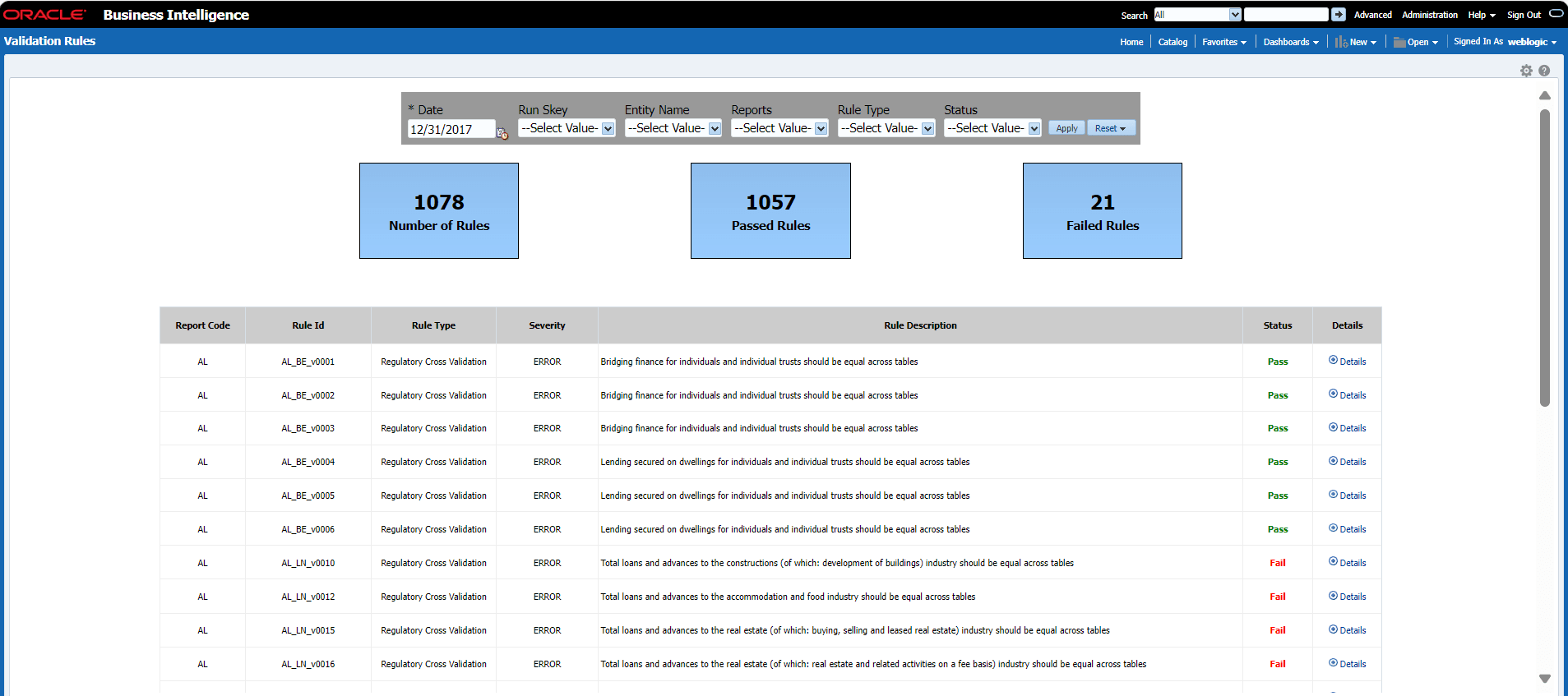

Figure 16-73 Validation Rules Dashboard

Note:

• The rule for Divisible by Zero is to be classified under Failed Rules rather than Error Rules.
• All rule value comparisons are conducted by up to two decimal places after the precision point.

To view the detailed information of the rule, click Details.

• Validation Rule Type: Provides the selected Rule Type.
• Rule Formula: Provides the selected Rule Formula.
• Rule Expression: Provides the selected Rule Expression.

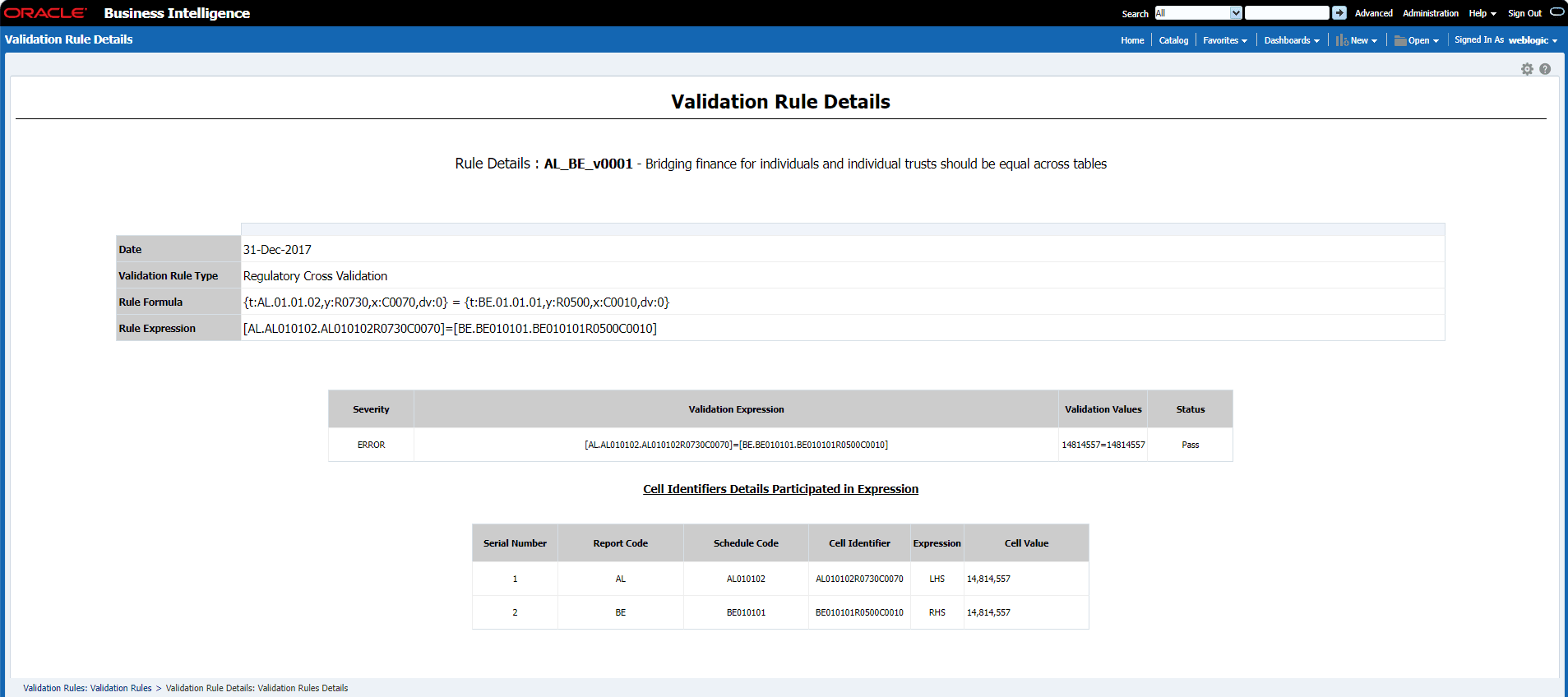

Figure 16-74 Validation Rule Details

The Validation Rule Details report also displays the Cell Identification Details Participated in Expression.
