15 Configuring Administration Tools

This section provides instructions for configuring parameters specific to administration tools.

Configuring Administration Tools

This parameter specifies the web application context and URL of the admin tools application.

Follow these steps if admin tools deployed web application context and URL were different from the default values populated by the Installer.
  1. Open the Manage Common Parametersscreen.
  2. Select Used for Design from the Parameter Category drop-down list.
  3. Select the Admin Tool from the Parameter Name drop-down list.
  4. Edit the required parameter details and click Save. A confirmation dialog box appears asking: Would you like to Save these actions?
  5. Click OK. A Confirmation dialog box appears with the message: Update Operation Successful.
  6. Click OK. The Manage Common Parameters page is displayed.

Table 15-1 Configuring Administration Tools

Attribute Description
APPLICATION_CONTEXT This parameter specifies the context name of the admin tools application.
ADMINISTRATION_TOOLS_APPLICATION_U RL This parameter specified the URL of the admin tools application.

Configuring Application Server

This parameter specifies the OFSAAI Application Server IP Address and Java Port.

Follow these steps if in case the values were different from the default values populated by the Installer.
  1. Open the Manage Common Parameters screen.
  2. Select Used for Design from the Parameter Category drop-down list.
  3. SelectApplication Server from the Parameter Name drop-down list.

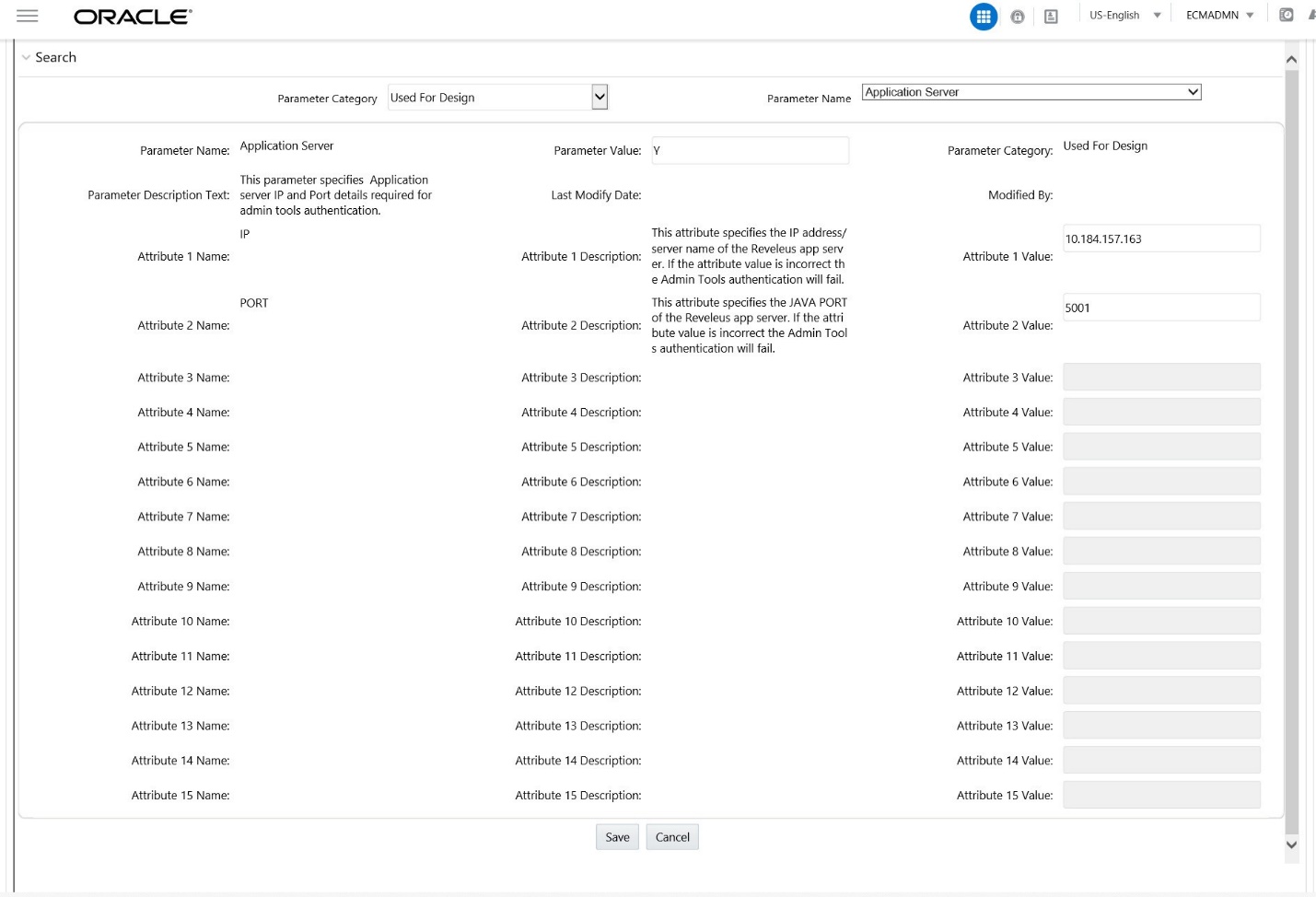

    Figure 15-1 Application Server

    This image shows the paraeter for Application Server.
  4. Edit the required parameter details and click Save. A confirmation dialog box appears asking: Would you like to Save these actions?
  5. Click OK. A Confirmation dialog box appears with the message: Update OperationSuccessful.
  6. Click OK. The Manage Common Parameters page is displayed.

    Table 15-2 Configuring Application Server

    Attribute Description
    Application Server IP This parameter specifies Oracle Financial Services Analytical Applications Infrastructure Application server IP address/server name details required for admin tools.
    Application Server Port This parameter specifies Oracle Financial Services Analytical Applications Infrastructure Application server port details required for admin tools.
