6.5 Maintenance of the Mapper for the Reclassification of Standard Dimensions

Mapper can be maintained under OFSAAI.

  1. Navigate to OFSAAI > Financial Services Data Foundation > Unified Analytical Metadata > Business Metedata Management > Map Maintenance.

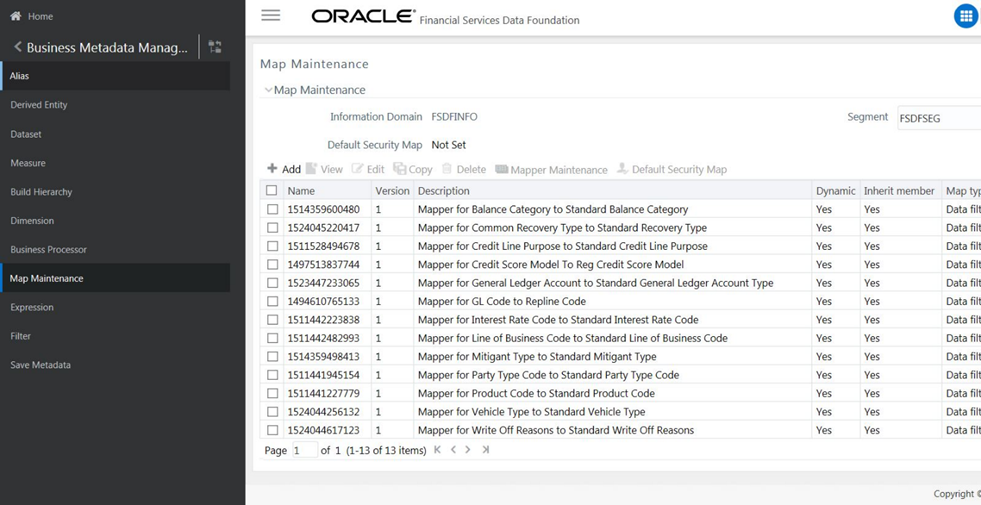

    Figure 6-1 Navigate to the Map Maintenance page


    This illustration shows how to navigate to the Map Maintenance page for the reclassification of standard dimensions. You can add, view, edit, copy, or maintain the map. The fields in this page are Information Domain, Segment, and Default Security Map.

  2. For illustration, selected the Mapper for Mitigant Type to Standard Mitigant Type. Click Mapper Maintenance.

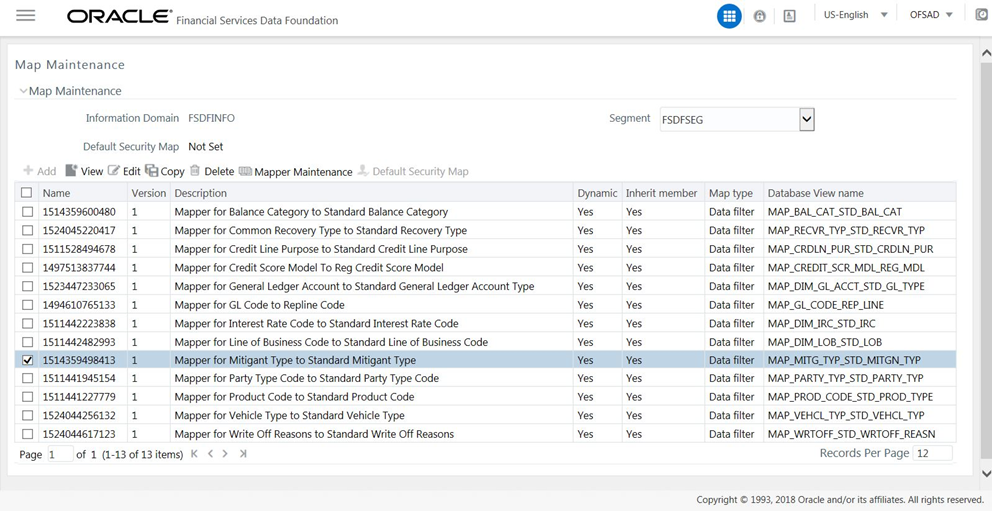

    Figure 6-2 Select the Mapper Maintenance for a Mapper


    This illustration shows selecting the Mapper Maintenance for a required Mapper using the Mapper Name, Description, or Database View Name.

  3. FSDF maps OTH and MSG out-of-the-box for this mapper. The remaining mappings can be maintained by the user according to user specific values.

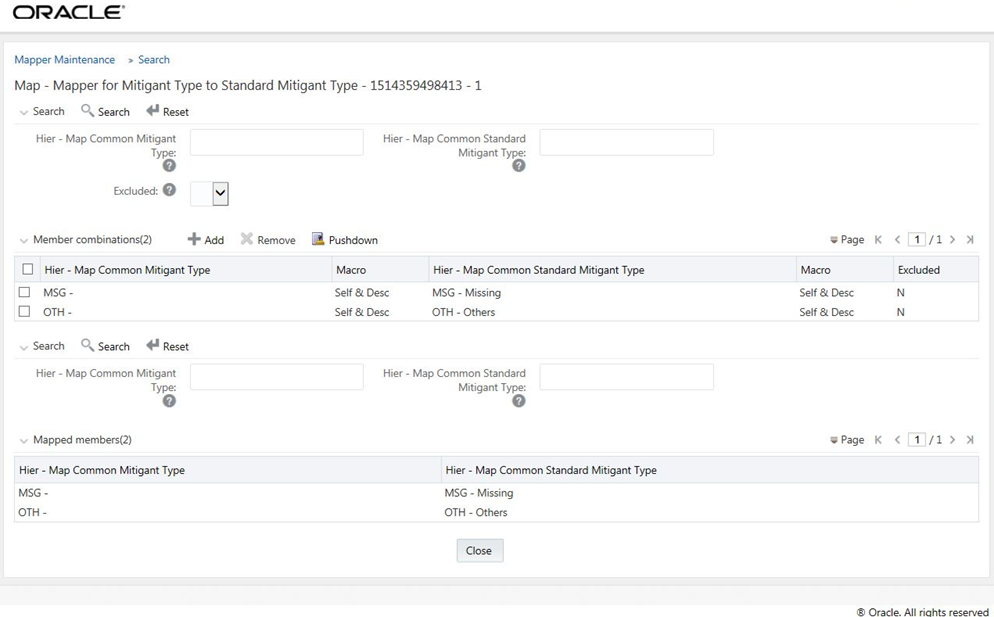

    Figure 6-3 Mapper Maintenance page


    This illustration shows the Mapper Maintenance page for the selected Mapper. This page consists of the From and To mapper hierarchy fields. OFSDF maps OTH (Others) and MSG (Missing) out-of-the-box members for all Mappers. This page consists of the functionalities such as Add, Remove or Pushdown hierarchy members. You can also see the list of mapped hierarchy members.
