8.5.2.2 Verifying the Run Execution

After selecting the Run parameters and beginning the Run execution, verify the progress of the Run. To verify the Run execution progress, follow this procedure:

  1. In the Process Modeller page, click select icon corresponding to the Run Pipeline that must be verified. Click Process Flow Monitor.

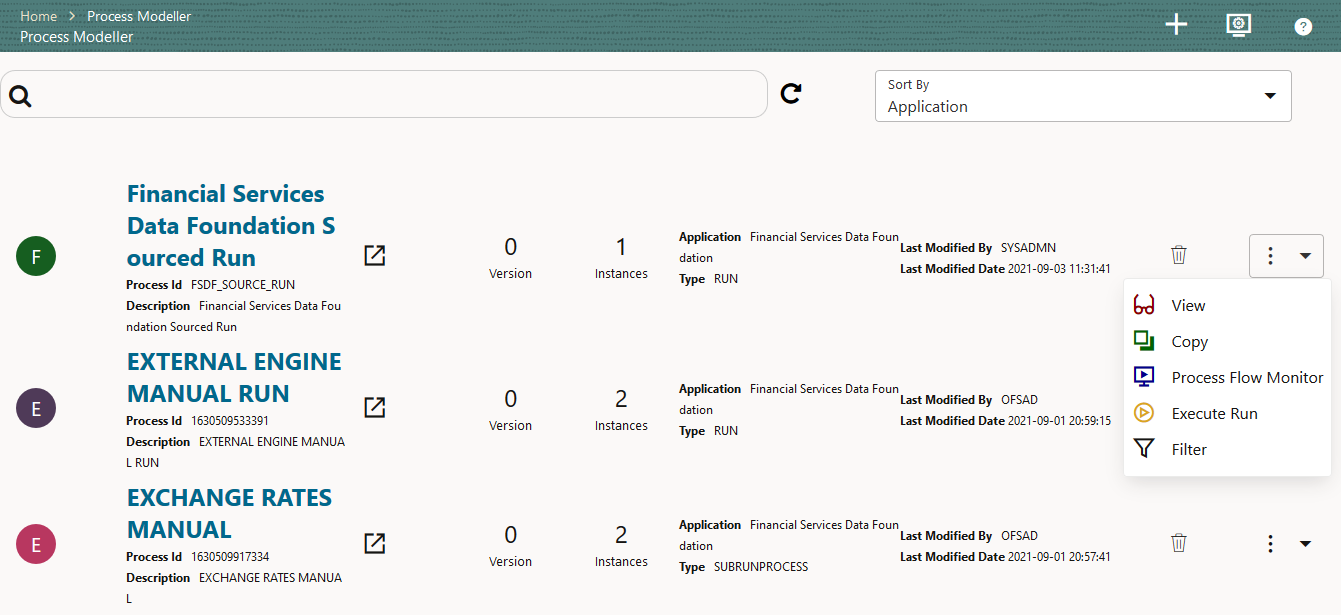

    Figure 8-11 Select Process Flow Monitor in the Run Pipeline


    This illustration shows the selection of the Process Flow Monitor in the required Run Pipeline. In the Process Modeller page, for the required Run Pipeline, select the Menu icon. In the Menu list, select Process Flow Monitor.

  2. The Process Monitor page is displayed. You can see the generated process flow ID, the Run execution timestamp, and the status of the Run execution. To verify the Run execution status at the Pipeline level, click the corresponding process flow ID.

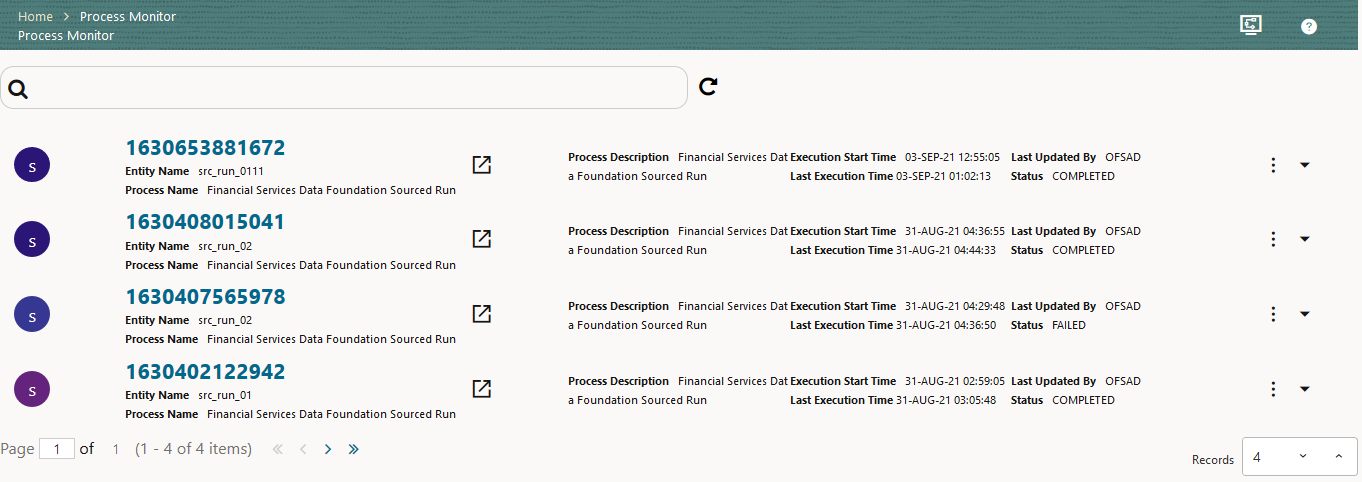

    Figure 8-12 Process Monitor page with the Process Flow ID


    This illustration shows the Process Monitor page with the Process Flow ID details. Select the Process Flow ID to see more details.

  3. The Process Flow diagram page is displayed. The ok icon icon at each Sub Pipeline indicates that the Run execution is successful.

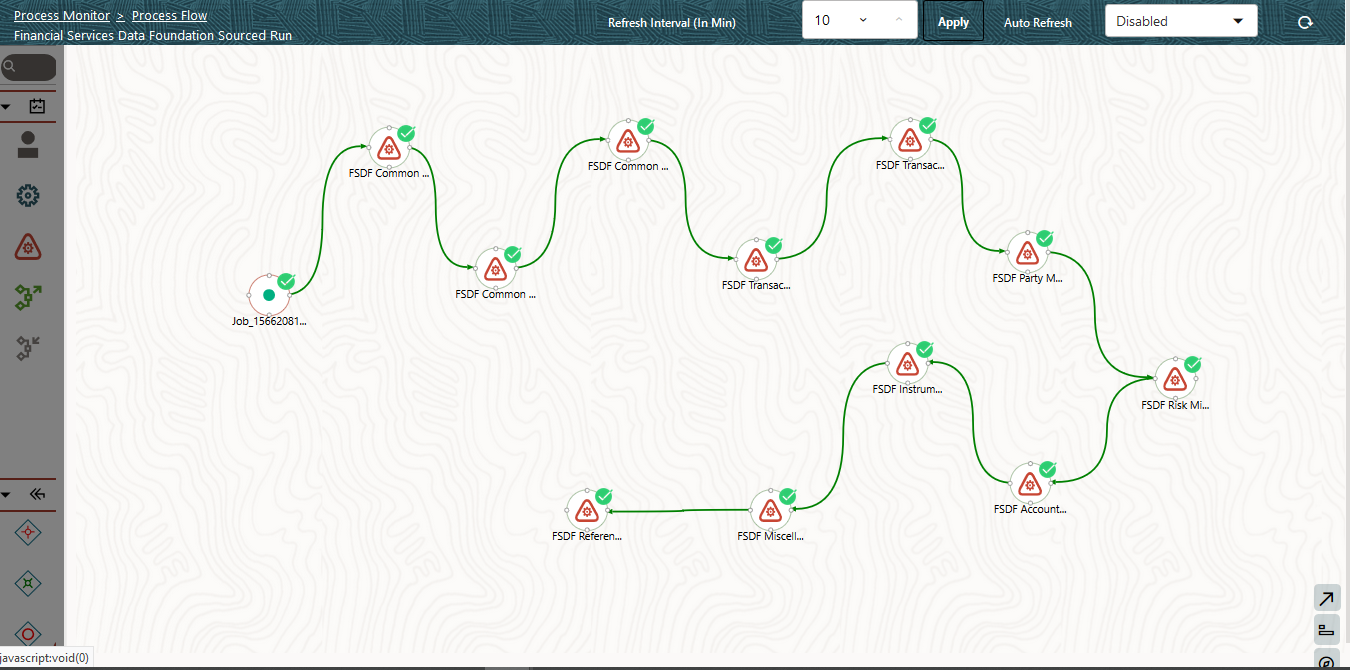

    Figure 8-13 Process Flow diagram page with the indication of successful Run execution


    This illustration shows the Process Flow diagram page with the indication of successful Run execution. Each successfully executed Sub Pipeline is indicated by a tick mark.
