36.2 Viewing FTP Objects in Metadata Browser

Oracle Funds Transfer Pricing under Oracle Financial Services Analytical Applications has the Metadata Browser (MDB).

To view FTP applications and objects in MDB, follow these steps:
  1. After successful execution of the Batch for MDB Publish, select Object Administration, and then select Metadata Browser.
  2. Click the Application tab under the Metadata Browser window to view the FTP application.

    Figure 36-4 Metadata Browser – Applications tab


    This screen shows the OFS Applications available under the OFSAA Metamodel.

  3. Click the Object tab under the Metadata Browser window to view FTP objects:

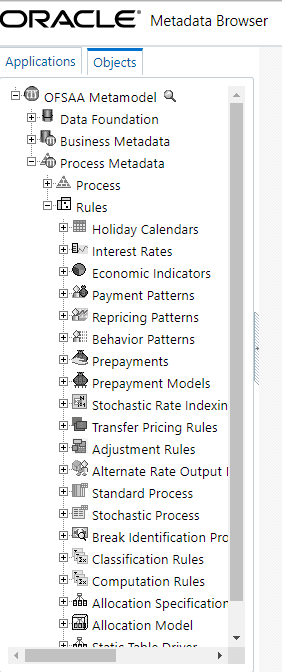

    Figure 36-5 Metadata Browser – Objects tab


    The Objects tab displays the Rules for the selected OFSAA Application.

  4. Under Process Metadata, and then under Rules, all the rules defined under the FTP window are displayed.
