Map Roles to User Group

To map Roles to the User Group, perform the following steps:

1. Log in to the AS CS Application and click on the Admin Console.

   Note:

   User that was mapped to group in IDCS must be used to login to Admin Console.
2. Navigate to Identity management under the Admin Console tab.

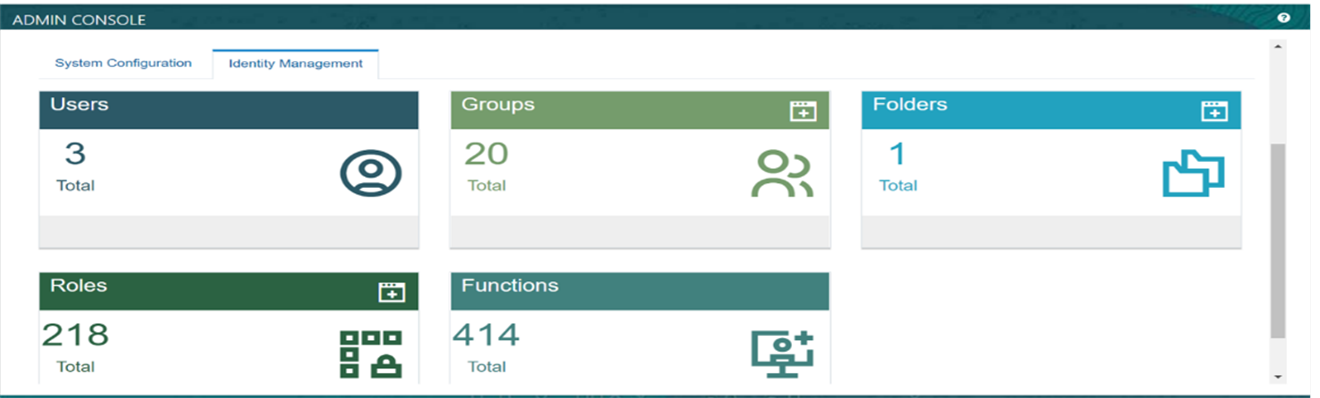

   Figure 5-1 Admin Console








3. Create Role using add icon on the Roles Management.
4. Enter Role Code, Role Name and save the definition.

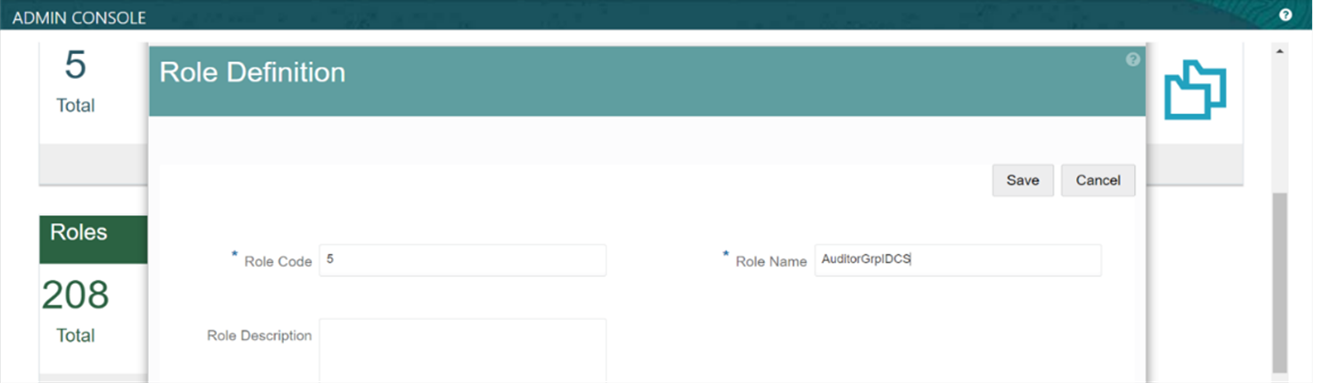

   Figure 5-2 Admin Console








5. Click on groups management and search for the group name created in IDCS Portal. It might take a few minutes for group names to appear in the Admin Console.
6. Click on the user group and click on New Mapping under the Mapped Roles tab.
7. Search for role names created in Roles Management and map each role by clicking on New Mapping.

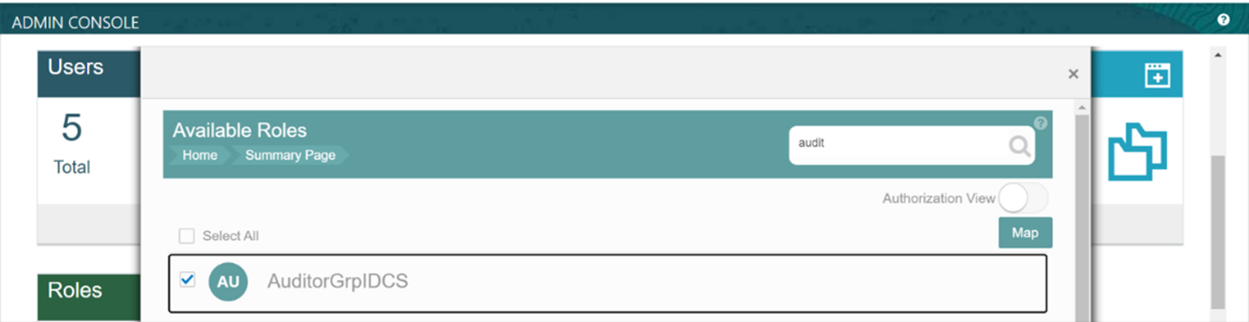

   Figure 5-3 Admin Console








8. The mapped role can be authorized using the Authorization View. Authorization can only be performed by the user login which is mapped to the Authorization Role.

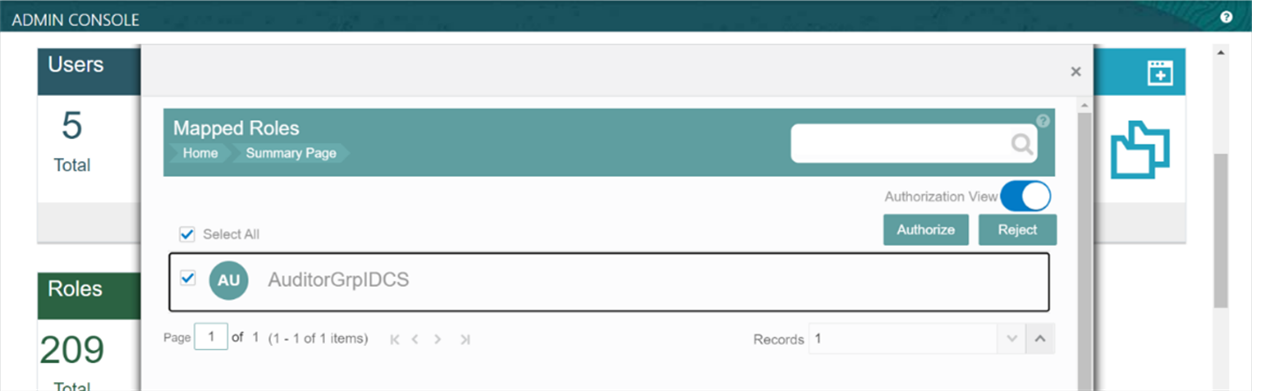

   Figure 5-4 Admin Console









A User group created in IAM Portal has been successfully mapped to a Role created in the Admin Console.
