Term Structure Rule Summary Page
This page is the gateway to the Term Structure Rule feature and related
functionality. To access this page from the LHS menu, click
Maintenance, then click ECL Rules, and
then click Term Structure Rules. You can navigate to other pages
that are related to Term Structure Rules from this point.

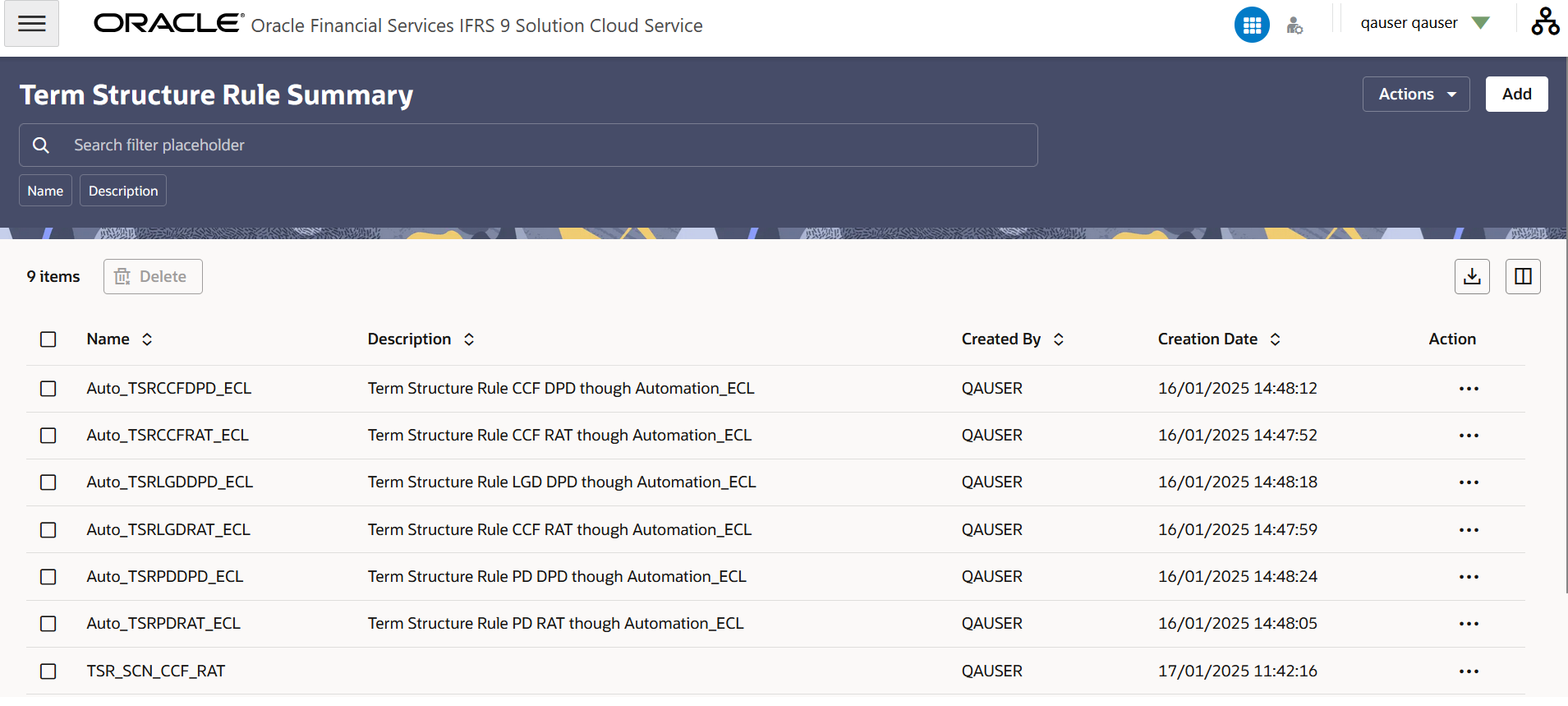

Figure 4-111 Term Structure Rule Summary Page
The Term Structure Rule Summary page displays the following
columns:
Table 4-52 Term Structure Summary Page – Fields and Descriptions
| Column | Description |
|---|---|
| Name | Displays the Term Structure Rules's name. |
| Add | Click the Add icon to create a new Term Structure Rule. |
| Delete | Select the desired Term Structure Rules Name and then select the Delete icon. |
| Action | Click the Action icon that contains the Refresh icon to refresh the summary page or the Help icon to view the help page for this feature. |
| Export | Click this icon to export the list of definitions in a .csv format. |
| Column | Click the Columns icon to open the Columns window. In this window, deselecting the check box for a column will hide it from the page. Select the check box again to reveal a field or click Restore Defaults to restore the columns to it's default state. |
| Search | Use this field to search for a Term Structure Rule to
View, Edit, Copy (Save As), Delete, Download, and find the Dependency Information.
For more information on using this feature, see the Search a Term Structure Rule section. |
The Term Structure Rules pane on the Term Structure Rule Summary page displays the list of Term Structure Rule and offers several actions that allow you to perform different tasks. The following tasks are available for the Term Structure Rule in the Action column.
Table 4-53 Term Structure Rule – Icons and Descriptions
| Column | Description |
|---|---|
| View | Click the Action icon adjacent to the Term Structure Rule Name and select View to view the contents of a Term Structure Rule in read format. |
| Edit | Click the Action icon adjacent to the Term Structure Rule Name and select Edit to edit the contents of a Term Structure Rule in read/write format. |
| Save As | Click the Action icon adjacent to the Term Structure Rule Name and select Save As to create a copy of an existing Term Structure Rule. |
| Delete | Click the Action icon adjacent to the Term Structure Rule Name and select Delete to delete an existing Term Structure Rule. |
| Dependency Information | Click the Action icon adjacent to the Term Structure Rule and select Dependency Information to check the higher and lower order dependencies for an existing Term Structure Rule. |
