7.3.2.1 Configure the OFS_LRS_SCHEMA_IN.xml File

This section describes how to create database schemas, objects within schemas, and assigning appropriate grants.

Specify the database schemas required for the installation in the OFS_LRS_SCHEMA_IN.xml file. Update the values of the various tags and parameters available in this file before executing the schema creator utility.

This file must be configured only if the database is RDBMS.

To configure the OFS_LRS_SCHEMA_IN.xml file, follow these steps:

  1. Log in to the system as a non-root user.
  2. Navigate to the OFS_LRS_PACK/schema_creator/conf directory.
  3. Edit the OFS_LRS_SCHEMA_IN.xml file using a text editor.

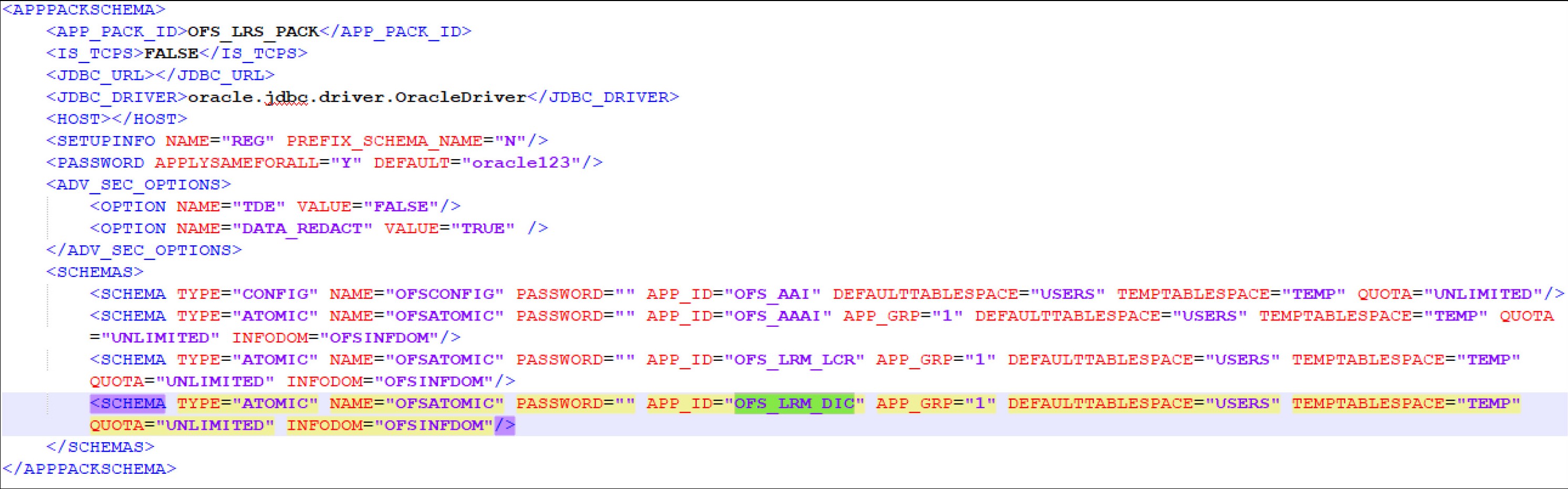

    Figure 7-2 Sample OFS_LRS_SCHEMA_IN.xml File


    Sample OFS_LRS_SCHEMA_IN.xml File

  4. Configure the values as mentioned in the following table and save the file.

    Note:

    On successful execution of the utility, the passwords entered in the OFS_LRS_SCHEMA_IN.xml file are nullified.

    Table 7-3 OFS_LRS_SCHEMA_IN.xml file Parameters

    Tag Name or Attribute Name Description Mandatory (Y or N) Default Value or Permissible Value Comments
    <APP_PACK_ID> Seeded unique ID for the OFSSAA Application Pack Y OFS_LRS_PACK Do not modify this value.
    <IS_TCPS> Enter if the TCPS configuration is required. Y Seeded, with FALSE as the default value. Do not modify this value.
    <JDBC_URL>

    Enter the JDBC URL.

    NOTE:

    You can enter the following JDBC URL type:

    RAC or NON-RAC enabled database connectivity URL.

    		 Y

    Example:

    jdbc:oracle:thin:@< DBSERVER IP/ HOST/ IP>:<PORT>:<SID>

    or

    jdbc:oracle:thin:@//[HOS T][:PORT]/ SERVICE

    or

    jdbc:oracle:thin:@(DESCRI PTION=(ADDRESS_ LIST=(ADDRESS=(PROT OCOL=TCP)(HOST=[HO ST])(port=[PORT]))(ADD RESS=(PROTOCOL=TCP) (HOST=[HOST])(PORT=[ PORT]))(LOAD_ BALANCE=yes)(FAILOV ER=yes))(CONNECT_ DATA=(SERVICE_ NAME=[SERVICE])))

    For example:

    jdbc:oracle:thin:@//dbhos t.server.com:1521/service 1

    or

    jdbc:oracle:thin:@//dbsho st.server.com:1521/scan-1

    or

    jdbc:oracle:thin:@(DESCRI

    PTION=(ADDRESS_ LIST=(ADDRESS=(PROT

    OCOL=TCP)(HOST=dbhost1.server.co m) (port=1521))(ADDRESS=(PROTOCOL=T

    CP)(HOST=dbhost2.s erver.com)(PORT=1521))( LOAD_BALANCE=yes)(FAILOV ER=yes))(CONNECT_ DATA=(SERVICE_NAME=service1)))

    or

    <JDBC_URL>jdbc:oracle:thin:@(DESC RIPTION = (ADDRESS = (PROTOCOL

    =TCPS)(HOST =

    dbhost.server.com)(PORT = 2484)) (CONNECT_DATA =(SERVER = DEDICATED) (SERVICE_NAME=SERVICEID))(securit

    y=(ssl_server_cert_dn=CN=dbhost))) or

    jdbc:oracle:thin:/@

    Ensure that you add an entry (with SID or SERVICE NAME) in the tnsnames.ora file on the OFSAA server. The entry must match the SID or SERVICE NAME used in the JDBC URL.

    Ensure that you have configured the JDBC URL as follows:

    jdbc:oracle:thin:/@
    <JDBC_DRIVER> The name of the driver is seeded. Y Example: oracle.jdbc.driver.OracleDriver Only JDBC Thin Driver is supported. Do not modify this value.
    <HOST> Enter the Hostname or IP Address of the system on which you are installing the OFSAA components. Y Hostname or IP Address
    <SETUPINFO>/PREFI X_SCHEMA_NAME

    Identifies whether the value specified in

    <SETUPINFO>/NAME

    attribute must be prefixed to the schema name.

    		 N Y or N The default value is N.
    <SETUPINFO>/NAME

    Enter the acronym for the type of implementation. This information is displayed in the OFSAA Home Page.

    On executing the schema creator utility, this value is prefixed with each schema name. For example: dev_ofsaaconf, uat_ofsaatm.

    		 Y

    Seeded, with REG PREFIX_SCHEMA_NAME="N

    as the default value.

    Accepts strings with a minimum length of two and a maximum of four.

    Example: DEV, SIT, PROD

    This message appears in the OFSAA Landing Page as "Connected To: xxxx".

    The schemas that are created get this prefix. For example, dev_ofsaaconf, uat_ofsaaconf, and so on.
    <PASSWORD>/ DEFAULT*

    Enter the password if you want to set a default password for all schemas.

    You also must set the APPLYSAME-FORALL

    attribute as Y to apply the default password for all the schemas.

    		 N The maximum length allowed is 30 characters. Special characters are not allowed. On successful execution of the utility, the entered password in the OFS_LRS_SCHEMA_IN.xml file is cleared.
    <PASSWORD>/ APPLYSAMEFORALL

    If you have entered Y in APPLYSAME-FORALL

    attribute and have specified individual passwords for all the schemas, then the specified individual passwords will take precedence.

    		 Y

    Default N Permissible: Y or N.

    Enter Y if you want to apply the password specified in the DEFAULT attribute for all the schemas.

    If you enter N, provide individual passwords for all schemas.

    		 Setting this attribute value is mandatory if the DEFAULT attribute is set.
    <SCHEMA>/TYPE

    The types of schemas supported in this release are ATOMIC, CONFIG, SANDBOX, and ADDON.

    By default, the schema types are seeded based on the Application Pack.

    		 Y ATOMIC or CONFIG

    Only One CONFIG schema can exist in the file.

    Do not edit this attribute value. This schema identifies as the

    CONFIGURATION schema that holds the

    OFSAA setup details and other Metadata information.

    Multiple ATOMIC schemas can exist in the file.
    <SCHEMA>/NAME

    The schemas’ names are seeded based on the Application Pack by default.

    You can edit the schema names if required.

    The Schema Name will have a prefix of the SETUPINFO/ NAME

    attribute.

    SCHEMA NAME must be the same for all the ATOMIC Schemas of the applications within an Application Pack.

    		 Y

    Seeded, with OFSCONFIG as the default value.

    The permissible length is 15 characters and only alphanumeric characters are allowed. No special characters allowed except underscore '_'.

    SETUPOINFO/NAME attribute value is prefixed to the schema name being created.

    For example, if a name is set as 'ofsaatm' and setupinfo as 'uat', then schema created is 'uat_ofsaatm'.

    NAME must be the same where APP_GRP=1 for all SCHEMA tags (Not applicable for this Application Pack).
    <SCHEMA>/PASSWO RD

    Enter the password of the schema to be created.

    If this attribute is left blank, then the password specified in the

    <PASSWORD>/DEFAULT

    attribute is taken as the Schema Password.

    		 N The maximum length allowed is 30 characters. Special characters are not allowed. It is mandatory to enter the password if you have set the <PASSWORD>/ APPLYSAMEFORALL attribute as N.
    <SCHEMA>/APP_ID The Application ID is seeded based on the Application Pack. Y

    Unique seeded values are: OFS_AAI

    OFS_AAAI

    OFS_LRM_LCR OFS_LRM_DIC

    		 Identifies the Application or Product for which the schema is being created. Do not modify this attribute value.
    <SCHEMA>/DEFAULT TABLESPACE

    Enter the available default tablespace for DB User.

    If this attribute is left blank, then USERS is set as the default tablespace.

    		 N

    Seeded, with USERS as the default value.

    Any existing valid tablespace name is Permissible.

    		 Modify this value to associate any valid tablespace with the schema.
    <SCHEMA>/TEMPTA BLESPACE

    Enter the available temporary tablespace for DB User.

    If this attribute is left bank, TEMP is set as the default tablespace.

    		 N

    Seeded, with TEMP as the default value.

    Any existing valid temporary tablespace name is Permissible.

    		 Modify this value to associate any valid tablespace with the schema.
    <SCHEMA>/QUOTA

    Enter the quota to be set on the DEFAULTTABLESPACE

    attribute for the schema or user. By default, the quota size is set to 500M.

    Minimum: 500M or Unlimited on default Tablespace.

    		 N

    Seeded, with UNLIMITED as the default value.

    Example: 600M/m

    20G/g UNLIMITED/unlimited

    		 Modify this value to grant the specified quota on the mentioned tablespace to the user.
    <SCHEMA>/ INFODOM

    Enter the name of the Information Domain to associate this schema.

    The schema creator utility automatically derives an Information Domain Name based on the Application Pack if no value is specified for this attribute.

    		 N

    Seeded, with OFSINFDOM as the default value.

    Permissible length is 16 characters and only alphanumeric characters are allowed. No special characters are allowed.



    <ADV_SEC_OPTIONS>

    /

    		 Parent tag to hold Advance Security Options. N

    Uncomment the tag and edit if you want to add security options. For example, TDE and Data Redact.

    For details, see the example in the comments for the

    <TABLESPACE>/ENCRYPT tag.

    <ADV_SEC_OPTIONS>

    /TDE

    		 Tag to enable or disable TDE. N The default is FALSE. To enable TDE, set this to TRUE. Ensure this tag is not commented if you have uncommented <ADV_SEC_OPTIONS>

    <ADV_SEC_OPTIONS>

    /DATA_REDACT

    		 Tag to enable or disable the Data Redaction feature. N The default is FALSE. To enable DATA_REDACT, set this to TRUE Ensure this tag is not commented if you have uncommented<ADV_SEC_OPTIONS>
    <TABLESPACES>

    Parent tag to hold

    <TABLESPACE> elements

    		 N NA

    Uncomment the tag and edit. ONLY if tablespaces are to be created as part of the installation.

    For details, see the example following the table.

    When TDE is TRUE in ADV_SEC_OPTIONS,

    then the <TABLESPACES> tag must be present in the XML file.
    <TABLESPACE>/NAM E Logical Name of the tablespace to be created. Y

    Name, if specified, must be referred in the

    <SCHEMA DEFAULTTABLESPACE=

    "##NAME##"> attribute.

    Note the ## syntax.
    <TABLESPACE>/VAL UE Physical Name of the tablespace to be created. Y NA Value, if specified, is the actual name of the TABLESPACE.
    <TABLESPACE>/DAT AFILE Specifies the location of the data file on the server. Y NA Enter the absolute path of the file to be created.
    <TABLESPACE>/AUT OEXTEND Specifies if the tablespace must be extensible or have a hard limit. Y ON or OFF Set to ON to ensure that the tablespace does not run out of space when full.
    <TABLESPACE>/ENC RYPT Specifies if the tablespace(s) must be encrypted using TDE Y ON or OFF

    Set to ON to ensure that the tablespaces when created are encrypted using TDE.

    NOTE: Encryption of tablespaces requires enabling Transparent Data Encryption (TDE) on the Database Server.

    Example: The following snippet shows that TDE is enabled and hence the tablespace is shown with encryption ON.

    <ADV_SEC_OPTIONS>

    <OPTION NAME="TDE" VALUE="FALSE"/>

    <OPTION NAME="DATA_REDACT" VALUE="FALSE" />

    </ADV_SEC_OPTIONS>

    <TABLESPACES>

    <TABLESPACE NAME="OFS_AAI_TBSP_1" VALUE="TS_USERS1" DATAFILE="/

    scratch/ora19c/app/oracle/ora data/OFSPQA19cDB/ts_users1.db f" SIZE="500M" AUTOEXTEND="ON" ENCRYPT="ON"

    />

    <TABLESPACE NAME="OFS_AAI_TBSP_2" VALUE="TS_USERS2" DATAFILE="/

    scratch/ora19c/app/oracle/ora

    data/OFSPQA19cDB/ts_users2.db f" SIZE="500M" AUTOEXTEND="ON" ENCRYPT="ON"

    </TABLESPACES>

    />

    <SCHEMAS>

    <SCHEMA TYPE="CONFIG"

    NAME="ofsaaconf" PASSWORD="" APP_ID="OFS_AAI" DEFAULTTABLESPACE="##OFS_AAI_ TBSP_1##" TEMPTABLESPACE="TEMP"

    QUOTA="unlimited"/>

    <SCHEMA TYPE="ATOMIC"

    NAME="ofsaaatm" PASSWORD="" APP_ID="OFS_AAAI" DEFAULTTABLESPACE="##OFS_AAI_ TBSP_2##" TEMPTABLESPACE="TEMP"

    QUOTA="unlimited" INFODOM="OFSAAAIINFO"/>

    </SCHEMAS>
