11.4.5.2 Update the OFS_LRS_PACK.xml File of the Newly Licensed Pack

The OFS_LRS_PACK.xml file holds details on the various products that are packaged together in OFS LRS application pack.

Update the OFS_LRS_PACK.xml file. Enable only the existing installed applications.

The OFS_LRS_PACK.xml file contains details on the various products that are packaged in the OFS LRS application pack. This section provides information about the various tags and parameters available in the file and the values that you must update. Before installing OFS LRS, it is mandatory to update this file.

To configure the OFS_LRS_PACK.xml file, follow these steps:

  1. Navigate to the OFS_LRS_PACK/conf directory.
  2. Open the OFS_LRS_PACK.xml file in a text editor.

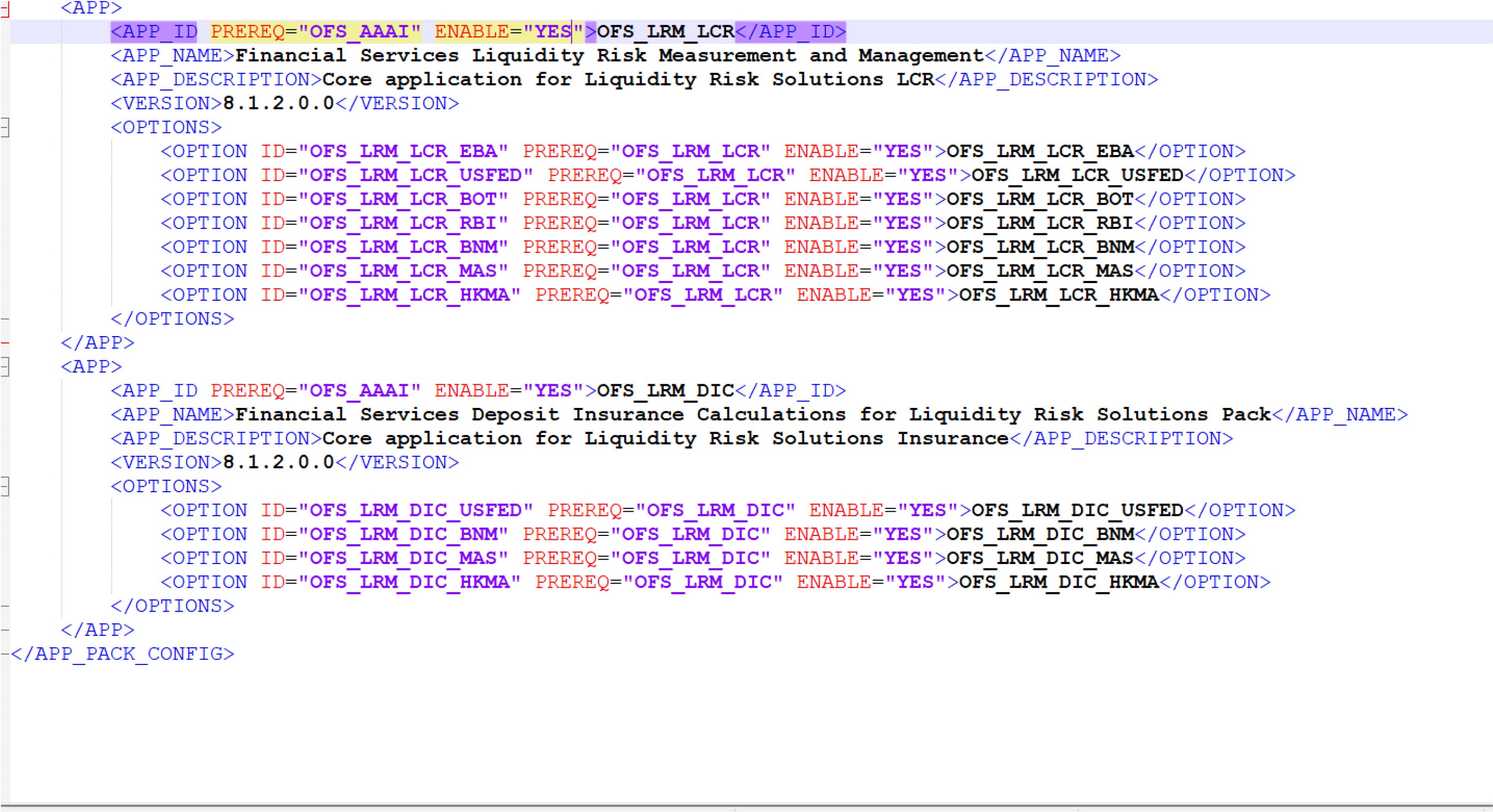

    Figure 11-5 Sample OFS_LRS_PACK.xml File


    This image illustrates the Sample OFS_LRS_PACK.xml File

  3. Configure the OFS_LRS_PACK.xml file as mentioned in the following table.

Table 11-4 OFS_LRS_PACK.xml File Parameters

Tag Name Attribute Name Value you must enter Comments
APP_ID ENABLE
  • YES for applications you want to install.

For example, OFS_LRS in the preceding illustration.

  • NO for applications that are already installed.
 Set this attribute-value to YES for every APP_ID which you want to install or upgrade.
