8.5.4.1.1.6 Execution History

This section of Pipeline Designer shows the history of the executed pipelines.

Note:

Add file output button in execution history tab that opens file manager at a specific path exposed by the save dataframe widget in the pipeline window. When the save dataframe widget is not available in the pipeline, show that the path does not exist from file manager.

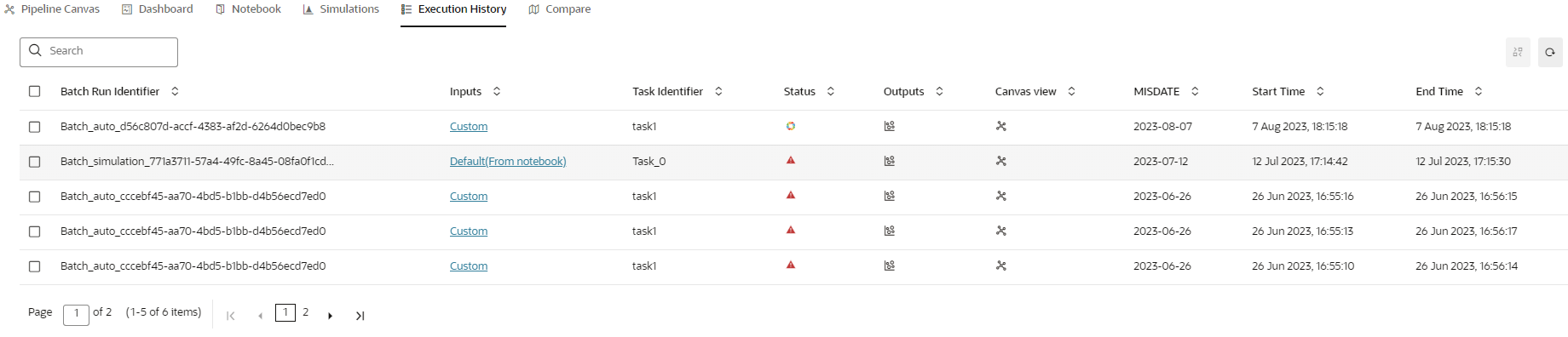

Figure 8-81 Execution History tab

You can compare and refresh the executions by clicking on Compareand Refresh icons.

To view the inputs, output, and canvas view, click on the corresponding options in the table.

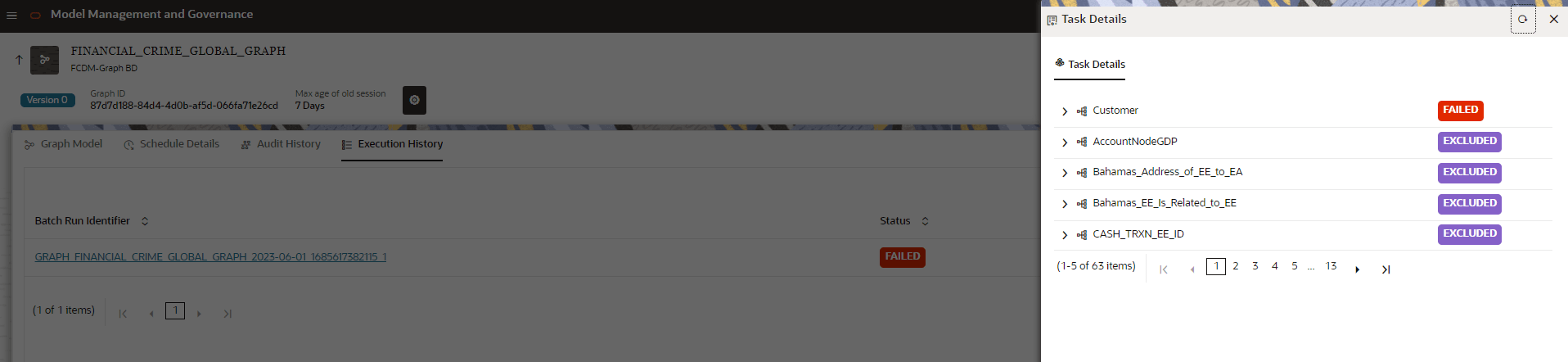

Clicking the Output icon displays the Output Details page, where you can view "Executed-only" paragraph outputs. By default, this option is enabled, you can disable this option based on your requirements.

By default, Tracked option is selected that displays outputs tracked from the time of the execution. Select All option to view all the outputs.
