10.4.1.2.1 Upload a Model

To upload a model:

1. In the View Model Objectivepage, click Addand select Upload Model.
   The Upload Model page is displayed.

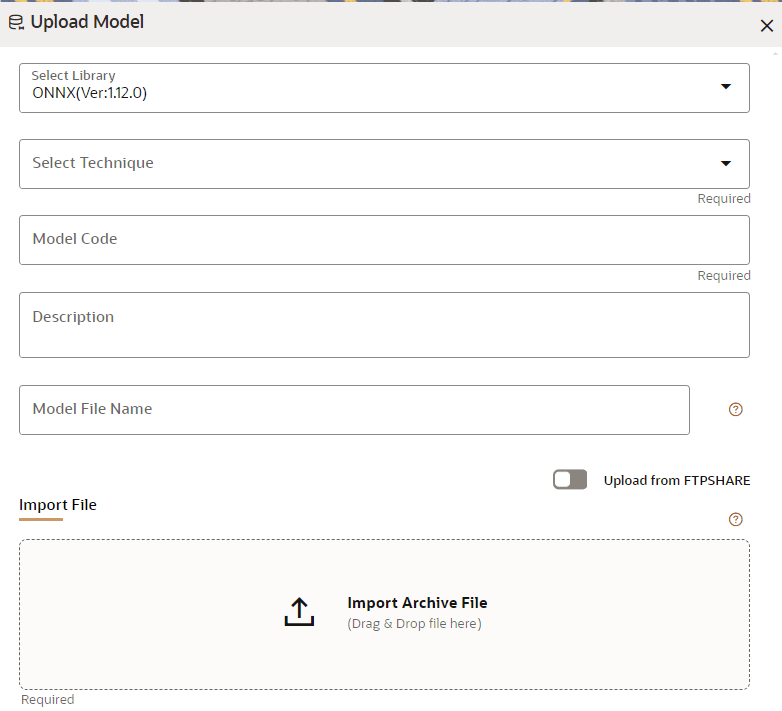

   Figure 10-45 Upload Model page








2. Select the library from the drop-down.
   For more details on the model library, see the Model Libraries section.
3. Select the required technique from the drop-down.
   For more details on the model technique, see the Model Technique section.
4. Enter the model code and description for the Model Objective.
5. Enter the name of model file with extension for use during Save and Load.
6. Import the model using Import Archive Fileoption. File format should in be zip format.
   OR
   Enable Upload from FTPSHARE option to import the model. File Path entered is the zip file path present on the Server relative to ftpshare path including file.

   Example: <installation path>/temp/models/model.zip

7. Click Upload Model.
   The model is uploaded successfully.
