2.1.3 Deployment Topology

The following figure illustrates the deployment topology of OFSAA application packs.

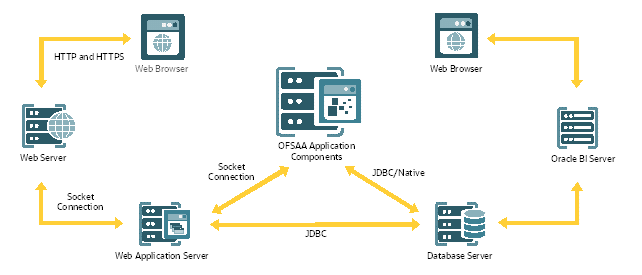

Figure 2-2 Logical Architecture Implemented for OFSAA Application Packs


This illustration shows the logical architecture implemented in the OFSAAAI Application Pack, which is the OFSAA application components deployment process.
