13.1.2.1 Allocation Specification Summary Table

The Allocation Specification Summary Table displays the details of the existing (already created) details of the allocation specifications.

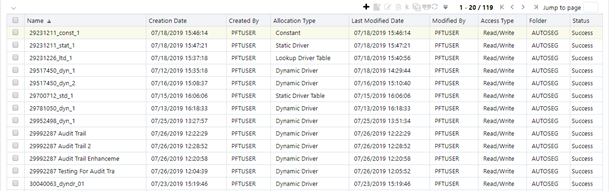

Figure 13-2 Allocation Specification summary table


This screen displays the allocation specification definitions that are already defined. This screen allows you to select an allocation specification and perform opetions like edit, delete, view, view dependency, and so on. This screen also allows you to navigate to the new allocation definition.

The Allocation Specification summary table displays the following details:

  • Name: Displays the Allocation rule's short name. Hovering over an Allocation Name displays the Allocation rule's long name and system identifier.
  • Creation Date: Displays the date and time at which an Allocation rule was created.
  • Created By: Displays the name of the user who created an Allocation rule.
  • Allocation Type: Displays an Allocation rule's type. The following rule types are supported:
    • Constant
    • Static Driver
    • Leaf
    • Field
    • Dynamic Driver
    • Static Driver Table
    • Lookup Driver Table
  • Last Modified Date: Displays the date and time at which an Allocation rule was last modified.
  • Modified By: Displays the name of the user who last modified an Allocation rule.
  • Access Type: Displays the “Read/Write” or “Read Only” property of an Allocation rule. Only the creator of a rule may change its Access Type.
  • Status: Before executing an Allocation rule for the first time, the Status is blank. After executing an Allocation rule, the words “View Log” are displayed as a hyperlink. Clicking the View Log hyperlink opens a log viewer, enabling you to view the execution log for the Allocation rule's last run.
