13.7.1 Source-Driver Relationship

This pane appears in the Outputs tab only when the Allocation Type is set as Leaf Allocation in the Initial Definition tab.

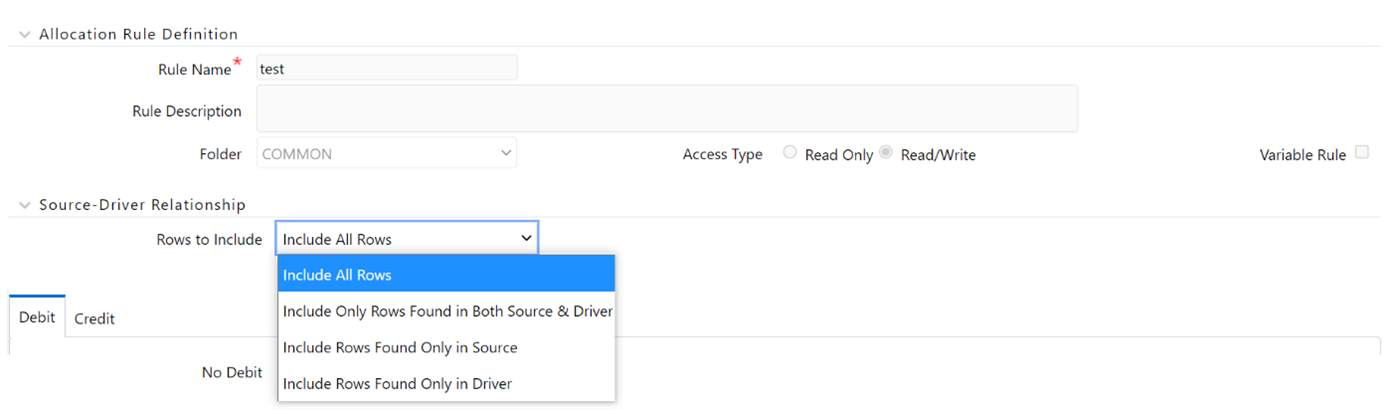

Figure 13-27 Outputs Process Tab - Source-Driver Relationship


This pane appears in the Outputs tab only when the Allocation Type is set as Leaf Allocation in the Initial Definition tab.

The following options are available:

  • Include Rows Found Only in Driver: When you select this option, the output includes the rows that are available only in Driver.
  • Include Only Rows Found in Both Source & Driver: When you select this option, the output fetches the rows from both source and driver based on defined condition(s).
  • Include All Rows: When you select this option, the output includes all the rows that are available in both Driver and source.
  • Include Rows Found Only in Source: When you select this option, the output includes the rows that are available only in Source.
