5.12.3 Creating a Decision Rule

Use this section to create a decision rule.

To create a Decision Rule, follow these steps.

1. From the top menu, select Application Rule.

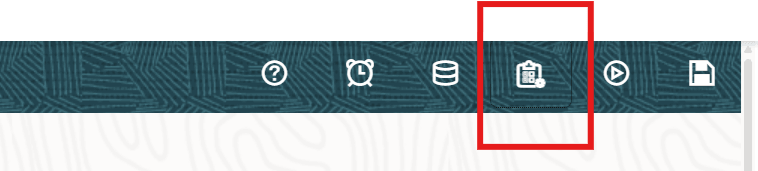

   Figure 5-3 New Rule








2. Click Add New Rule.
3. Set Execution Type to Attribute Expressions.
4. Select Status in the Attribute drop-down, click the + button, and add choose the corresponding status.
5. Select Role in the Attribute drop-down, click the + button, and add the user role that can take this action.
6. Select the Action code in the Attribute drop-down, click the + button, and add the corresponding action.
7. Select Report type in the Attribute drop-down, click the + button, and select the corresponding Template.

   Note:

   The attribute drop-down is populated from the specified table in the config schema.

   select t.* from AAI_AOM_APP_COMP_ATTR_MAPPING t where n_app_id = 'OFS_RRS'

8. Enter the required details and click Save. 9. The attribute dropdown options are populated from the following table in the config schema:

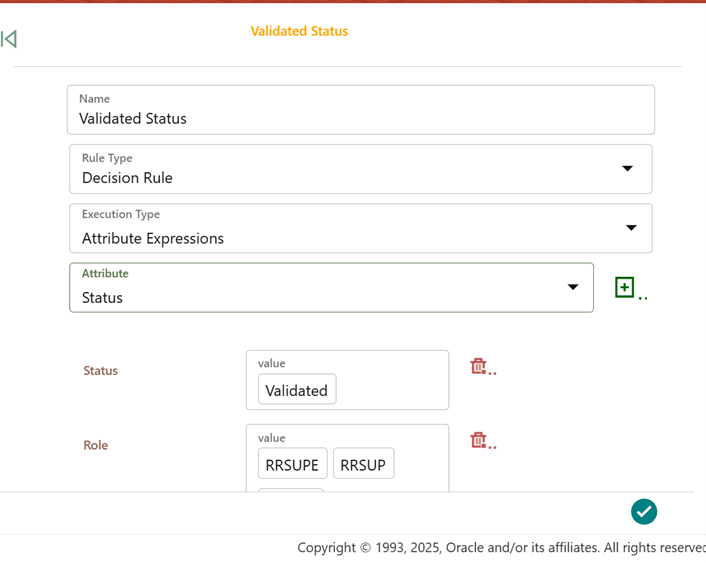

   Figure 5-4 Validated
