Hold Request (Without Approval) Status Transition

The following figure graphically indicates how a hold request moves from one status to another when the approval process is not configured in the hold request type:


The figure indicates how a hold request moves from one status to another when the approval process is not configured in the hold request type. Since the hold request status transition flow spans across multiple pages, we have split the flow into seven parts — Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 1 of the hold request status transition flow.

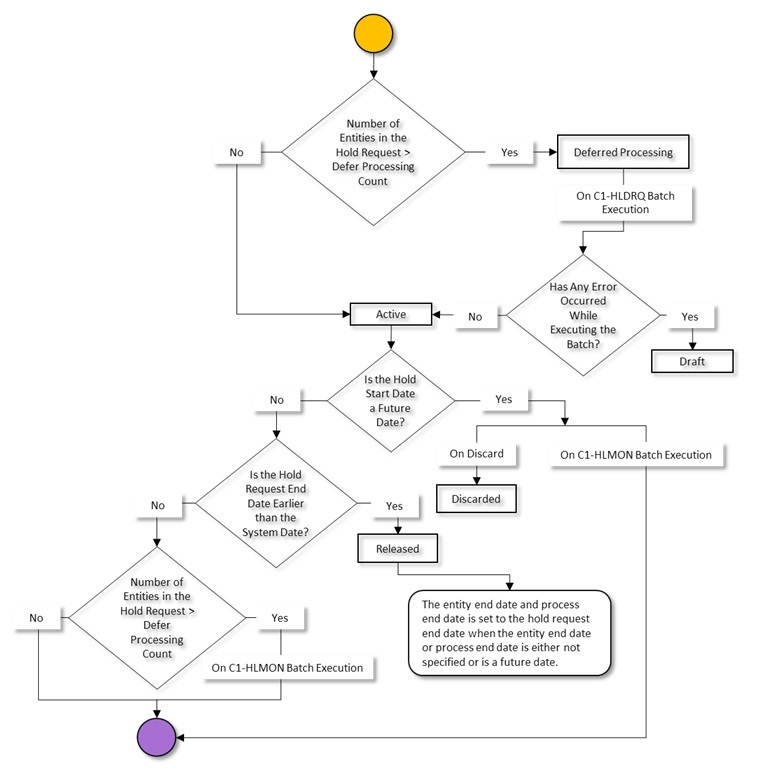

The figure indicates how a hold request moves from one status to another when the approval process is not configured in the hold request type. Since the hold request status transition flow spans across multiple pages, we have split the flow into seven parts — Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 2 of the hold request status transition flow.

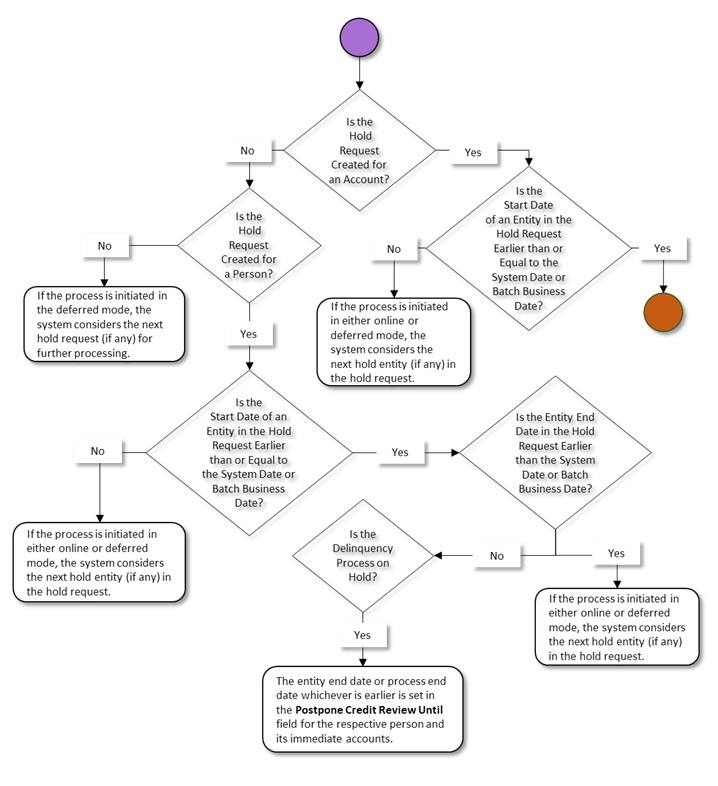

The figure indicates how a hold request moves from one status to another when the approval process is not configured in the hold request type. Since the hold request status transition flow spans across multiple pages, we have split the flow into seven parts — Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 3 of the hold request status transition flow.


The figure indicates how a hold request moves from one status to another when the approval process is not configured in the hold request type. Since the hold request status transition flow spans across multiple pages, we have split the flow into seven parts — Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 4 of the hold request status transition flow.


The figure indicates how a hold request moves from one status to another when the approval process is not configured in the hold request type. Since the hold request status transition flow spans across multiple pages, we have split the flow into seven parts — Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 5 of the hold request status transition flow.

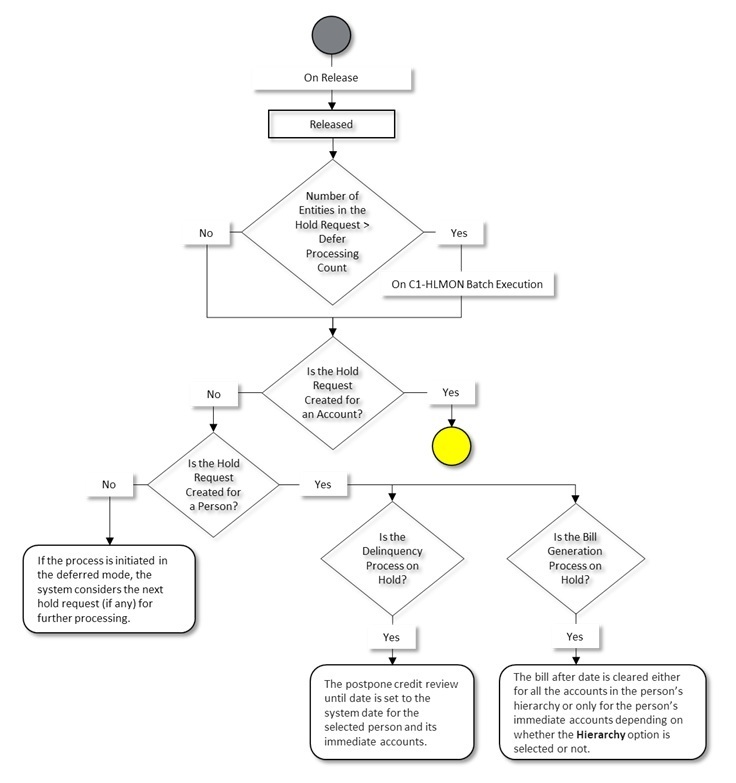

The figure indicates how a hold request moves from one status to another when the approval process is not configured in the hold request type. Since the hold request status transition flow spans across multiple pages, we have split the flow into seven parts — Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 6 of the hold request status transition flow.

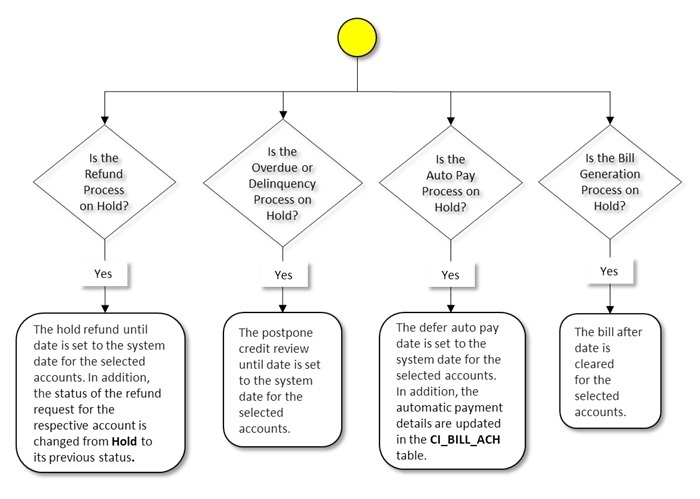

The figure indicates how a hold request moves from one status to another when the approval process is not configured in the hold request type. Since the hold request status transition flow spans across multiple pages, we have split the flow into seven parts — Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 7 of the hold request status transition flow.
