Group Delinquency Process Status Transition for a Person

The following figure graphically indicates how a group delinquency process for a person moves from one status to another in its lifecycle:

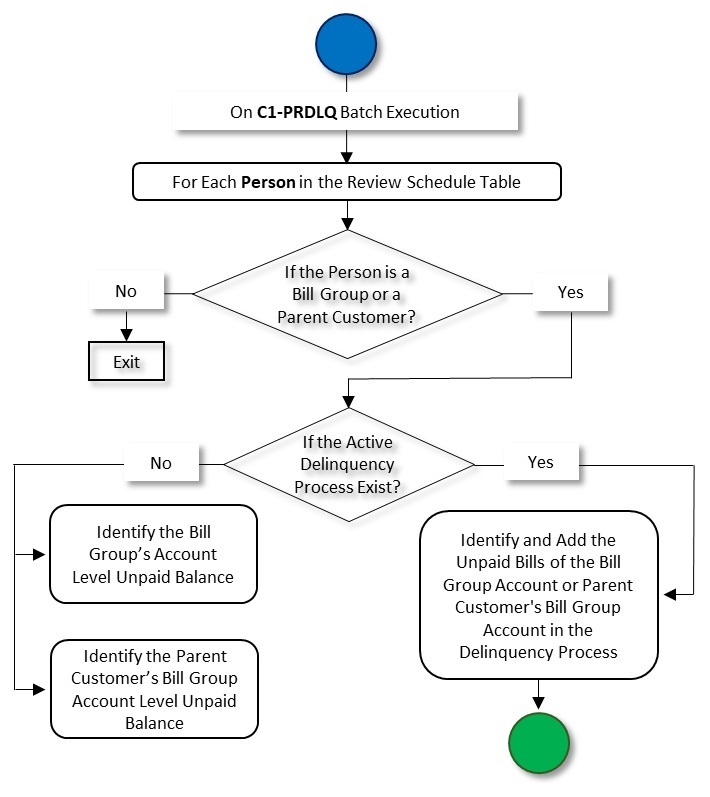

The figure indicates how a group delinquency process for a person moves from one status to another in its lifecycle. Since the group delinquency process for a person status transition flow spans across multiple pages, we have split the flow into seven parts - Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 1 of the group delinquency process for a person status transition flow.

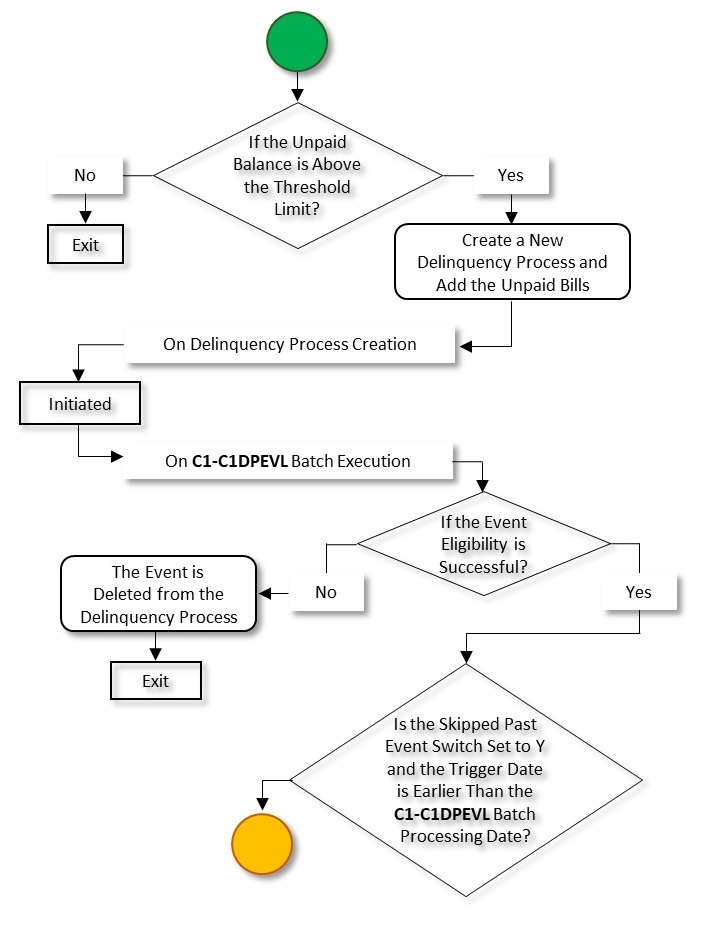

The figure indicates how a group delinquency process for a person moves from one status to another in its lifecycle. Since the group delinquency process for a person status transition flow spans across multiple pages, we have split the flow into seven parts - Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 2 of the group delinquency process for a person status transition flow.

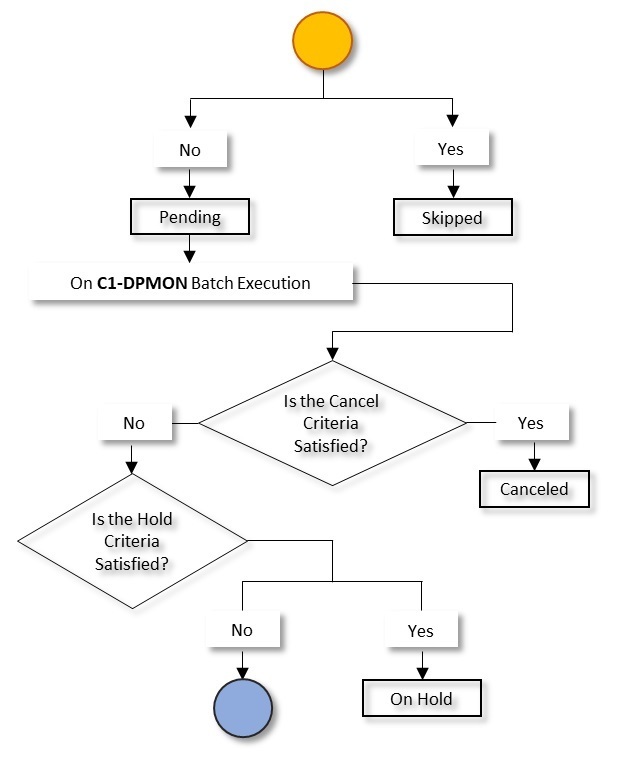

The figure indicates how a group delinquency process for a person moves from one status to another in its lifecycle. Since the group delinquency process for a person status transition flow spans across multiple pages, we have split the flow into seven parts - Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 3 of the group delinquency process for a person status transition flow.

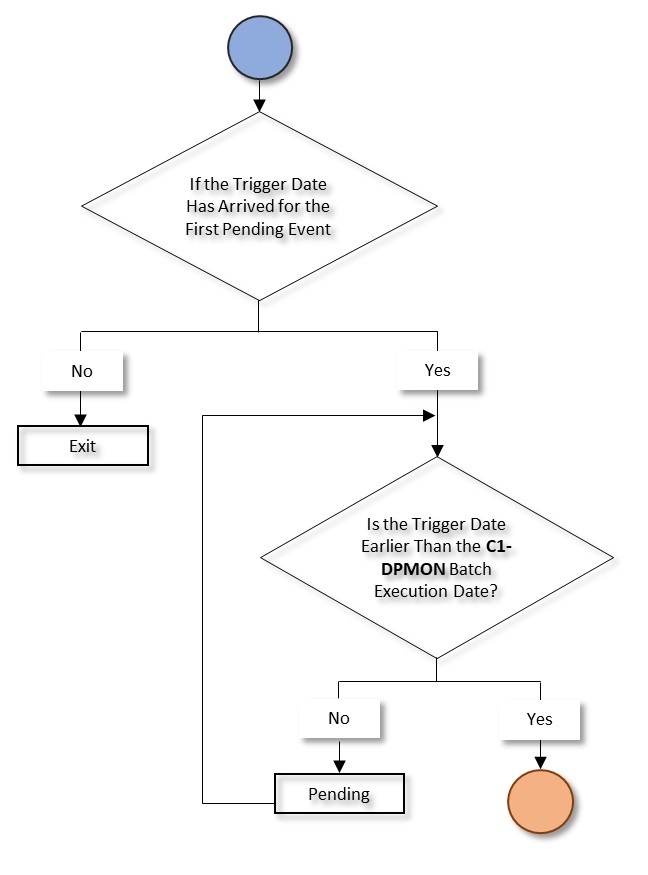

The figure indicates how a group delinquency process for a person moves from one status to another in its lifecycle. Since the group delinquency process for a person status transition flow spans across multiple pages, we have split the flow into seven parts - Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 4 of the group delinquency process for a person status transition flow.

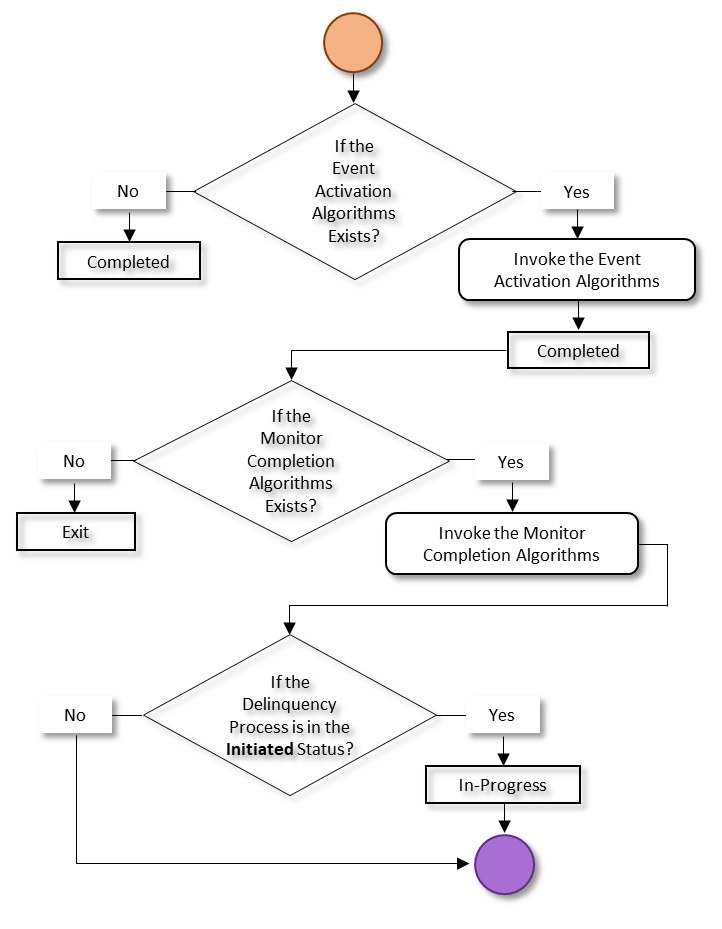

The figure indicates how a group delinquency process for a person moves from one status to another in its lifecycle. Since the group delinquency process for a person status transition flow spans across multiple pages, we have split the flow into seven parts - Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 5 of the group delinquency process for a person status transition flow.

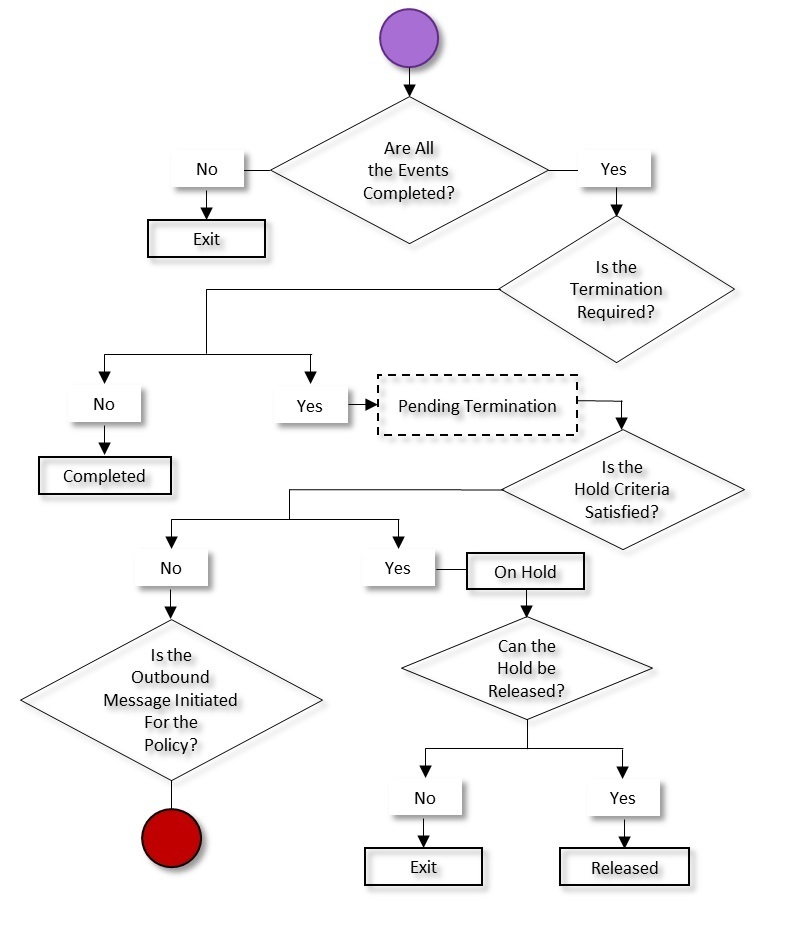

The figure indicates how a group delinquency process for a person moves from one status to another in its lifecycle. Since the group delinquency process for a person status transition flow spans across multiple pages, we have split the flow into seven parts - Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 6 of the group delinquency process for a person status transition flow.

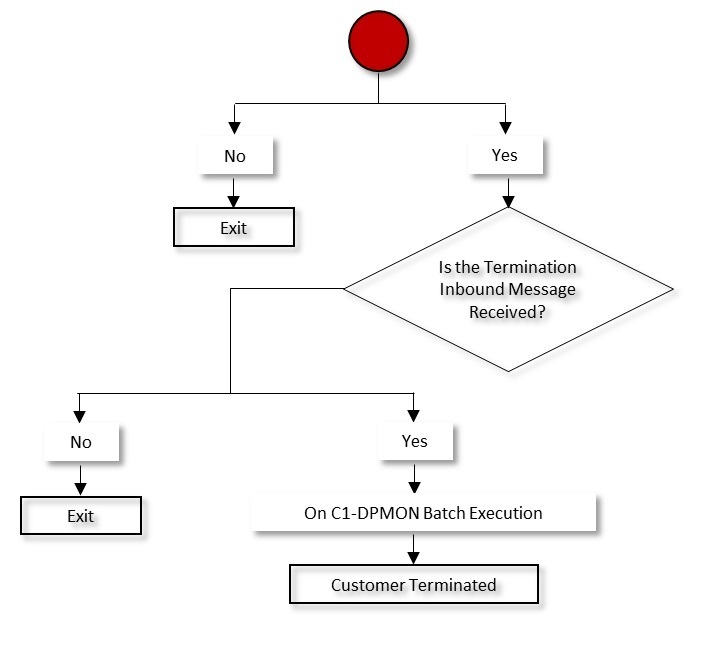

The figure indicates how a group delinquency process for a person moves from one status to another in its lifecycle. Since the group delinquency process for a person status transition flow spans across multiple pages, we have split the flow into seven parts - Part 1, Part 2, Part 3, Part 4, Part 5, Part 6, and Part 7. This is Part 7 of the group delinquency process for a person status transition flow.
