Refund Request (Without Approval) Status Transition

The following figure graphically indicates how a refund request moves from one status to another when approval workflow is off:

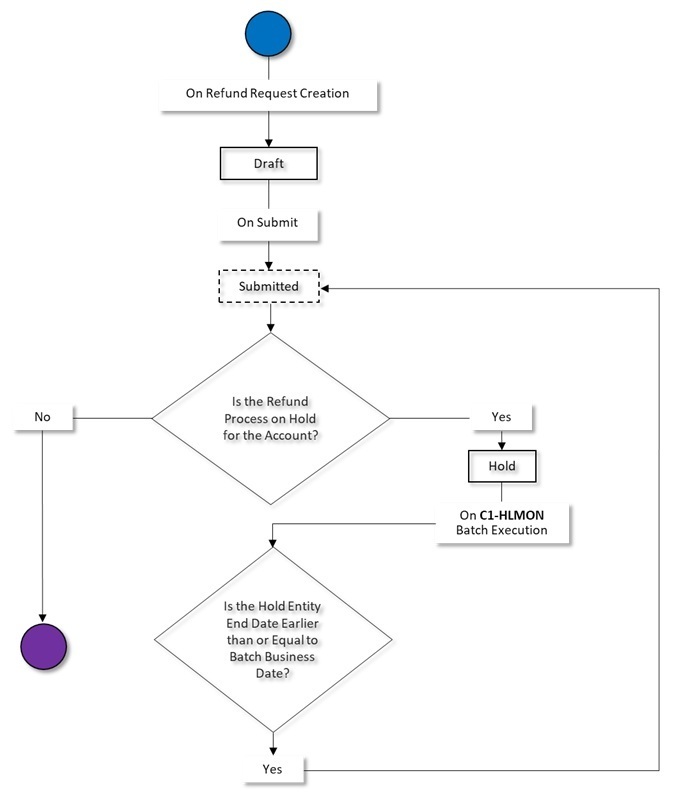

The figure indicates how a refund request moves from one status to another when the approval process is not configured in the refund request type. Since the refund request status transition flow spans across multiple pages, we have split the flow into two parts — Part 1 and Part 2. This is Part 1 of the refund request status transition flow.

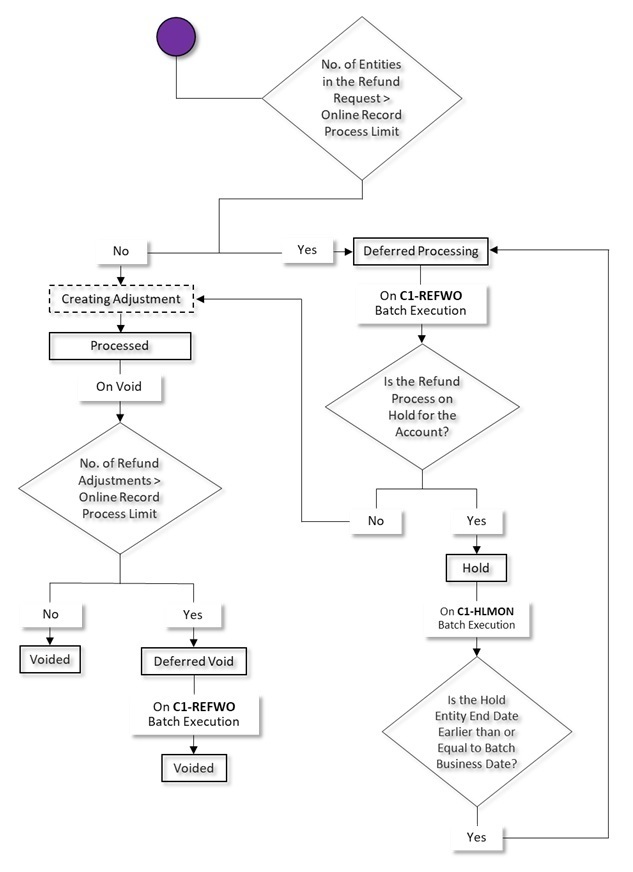

The figure indicates how a refund request moves from one status to another when the approval process is not configured in the refund request type. Since the refund request status transition flow spans across multiple pages, we have split the flow into two parts — Part 1 and Part 2. This is Part 2 of the refund request status transition flow.
