MICROS Workstation 4/4 LX - Low Profile (LP) Dimensions

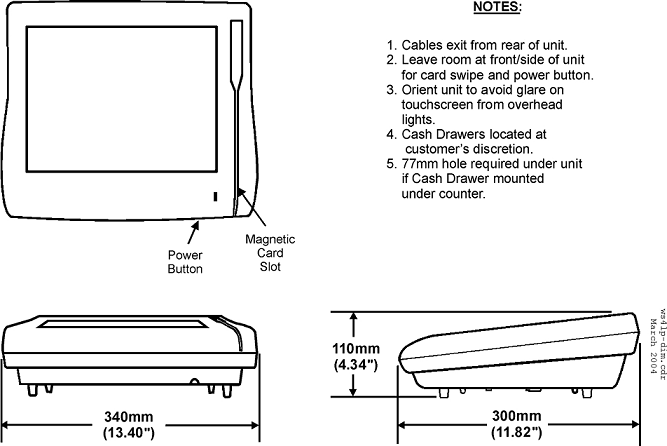

Figure 32-33 Workstation 4/4 LX - Low Profile (LP) Dimensions


This figure shows MICROS Workstation 4/4 LX - Low Profile (LP).

Parent topic: Equipment Dimensions
