MICROS Workstation 4/4 LX Dimensions on Stand with LCD Customer Display

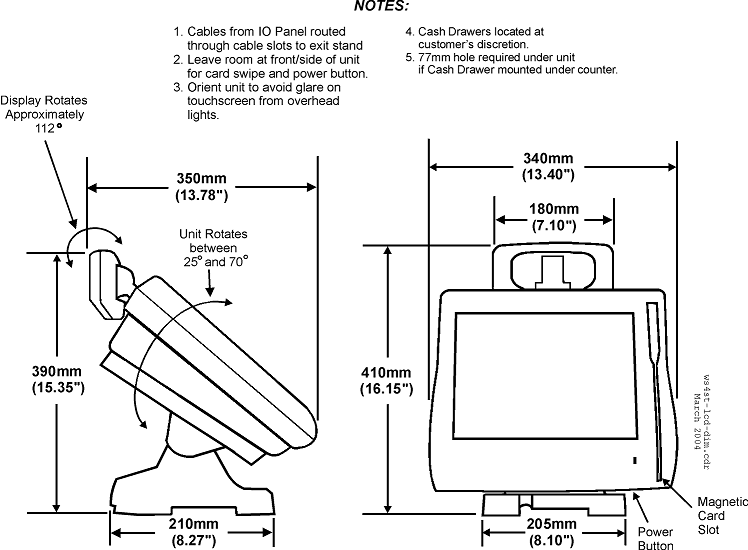

Figure 32-36 Workstation 4/4 LX Dimensions on Stand with LCD Customer Display


This figure shows the MICROS Workstation 4/4 LX on Stand /w LCD Customer Display.

Parent topic: Equipment Dimensions
