MICROS Workstation 4/4 LX Dimensions on Wall Mount Bracket

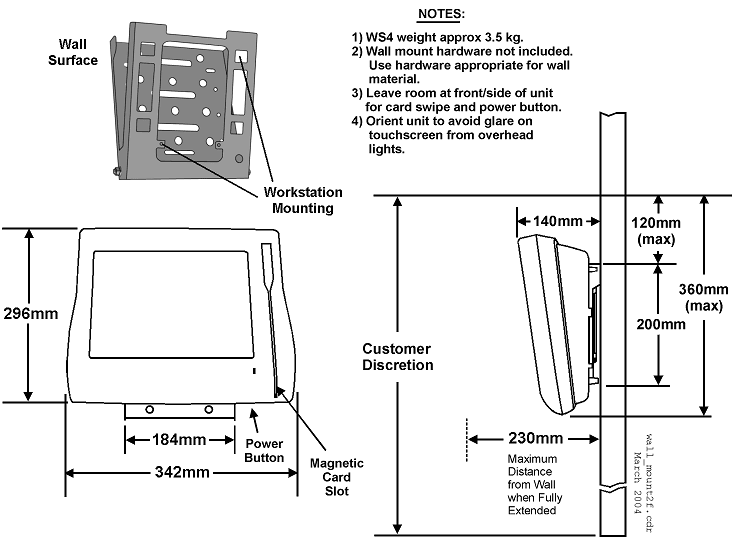

Figure 32-38 Workstation 4/4 LX Dimensions on Wall Mount Bracket


This figure shows the MICROS Workstation 4/4 LX on Wall Mount Bracket.

Parent topic: Equipment Dimensions
