MICROS Workstation 6 Series - Side Dimensions with Adjustable Stand

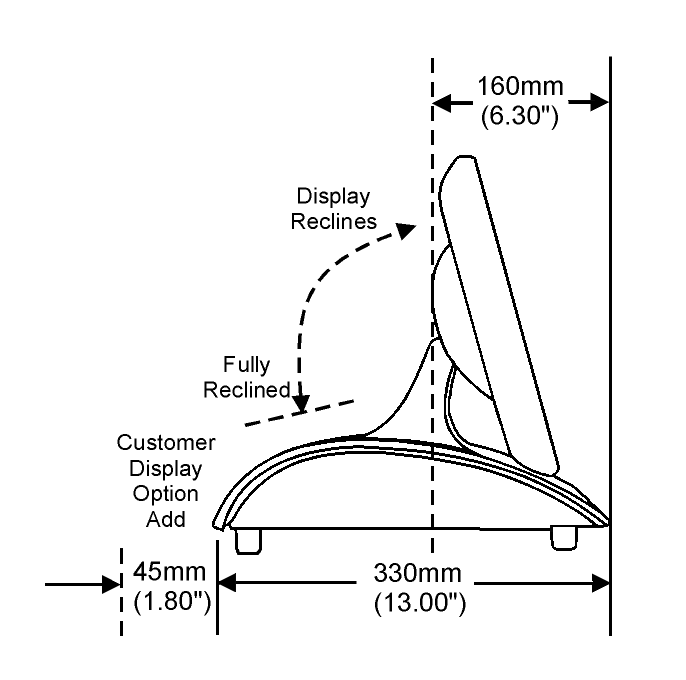

Figure 32-10 Workstation 6 Series Side Dimensions


This figure shows the MICROS Workstation 6 Series side dimensions.

Parent topic: Equipment Dimensions
