MICROS Workstation 6 Series - Wall Mount Dimensions

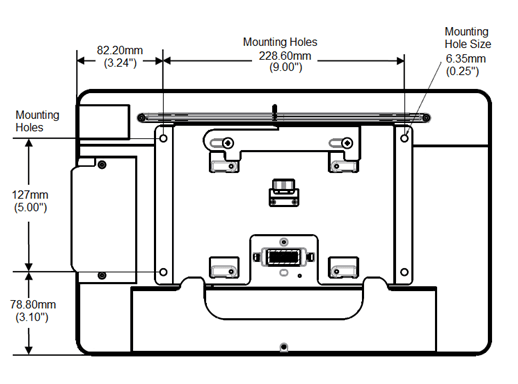

Figure 32-14 Workstation 6 Series Wall Mount Dimensions


This figure shows the MICROS Workstation 6 Series wall mount dimensions.

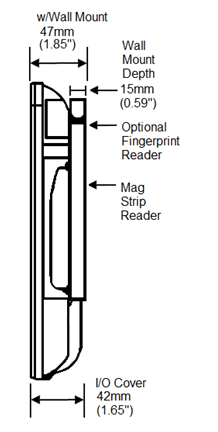

Figure 32-15 Workstation 6 Series Wall Mount Dimensions


This figure shows the side view of the MICROS Workstation 6 Series wall mount dimensions.

Parent topic: Equipment Dimensions
