Pole Customer Display Connector

The Pole Customer Display port is located on virtually all Workstations including the WS 4 LX, KW270, WS 5A, WS 6, PCWS 2015, and the Base Station.

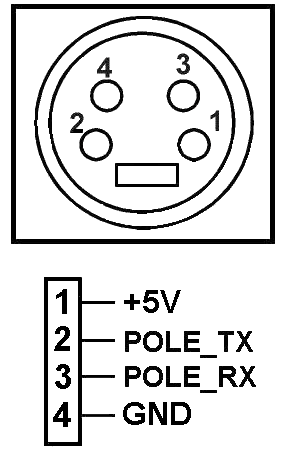

Figure 33-7 Remote Customer Display Connector Diagram
