Oracle Workstation 8 Series Dimensions

Note:

Dimensions shown in millimeters.

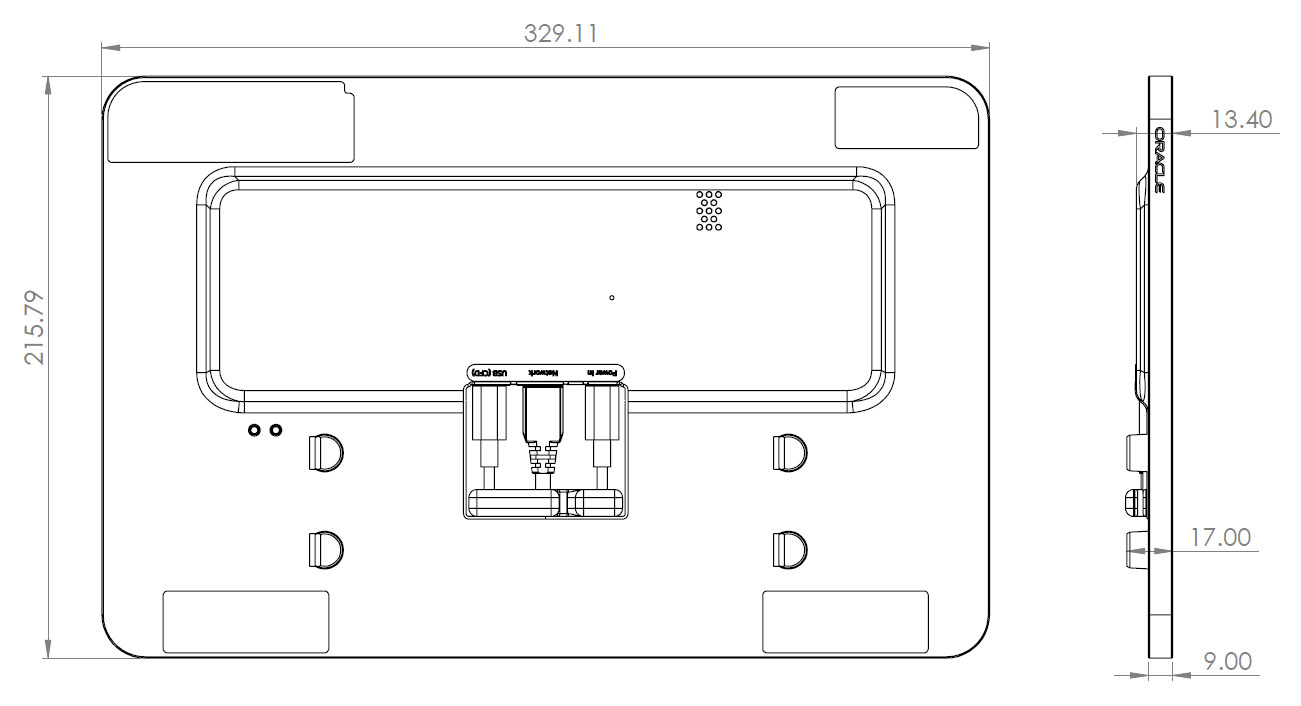

Workstation 820

This figure shows the Workstation 820 head unit dimensions.

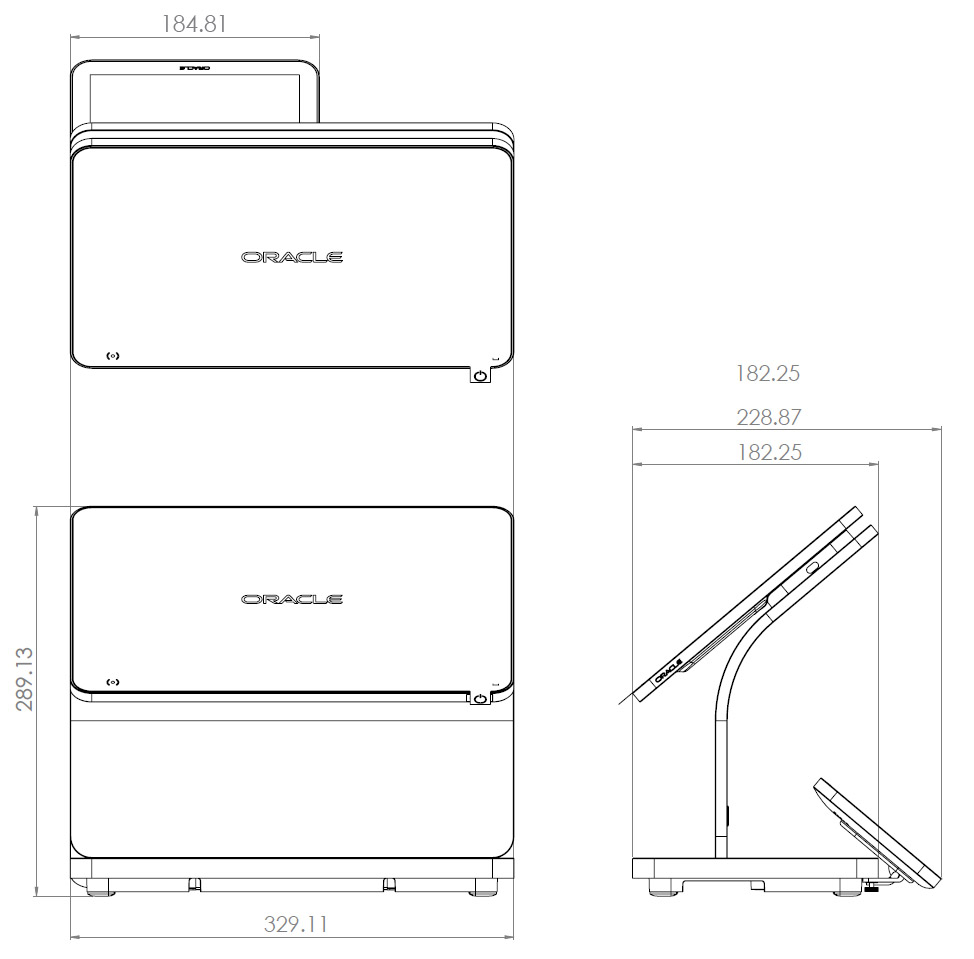

Workstation 820 with Vertical Stand

This figure shows the Workstation 820 with Vertical Stand dimensions.

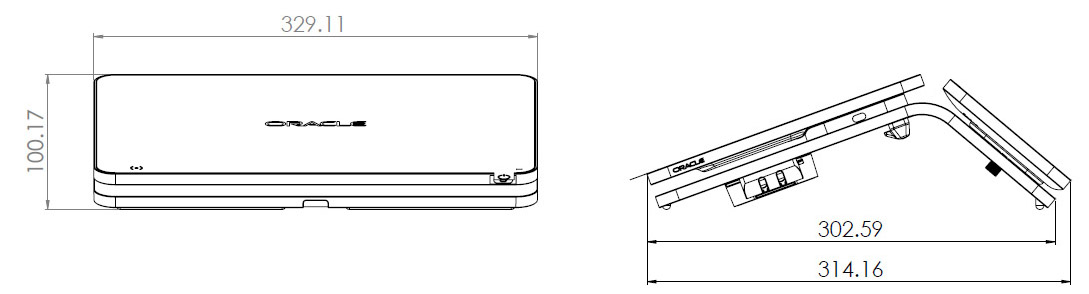

Workstation 820 with Low Profile Stand


This figure shows the Workstation 820 with Low Profile Stand dimensions.
