Menu Item Images

If configured, a menu item image may also be displayed on the information screen. To enable this, enter @INFO in the Comments field for the menu item definition image. If this field is not configured, no image is displayed.

Note:

If Simphony Transaction Services Generation 2 is used for images and image comments, a different image slot can be used for the allergen image. The maximum size for an image is 1 KB.

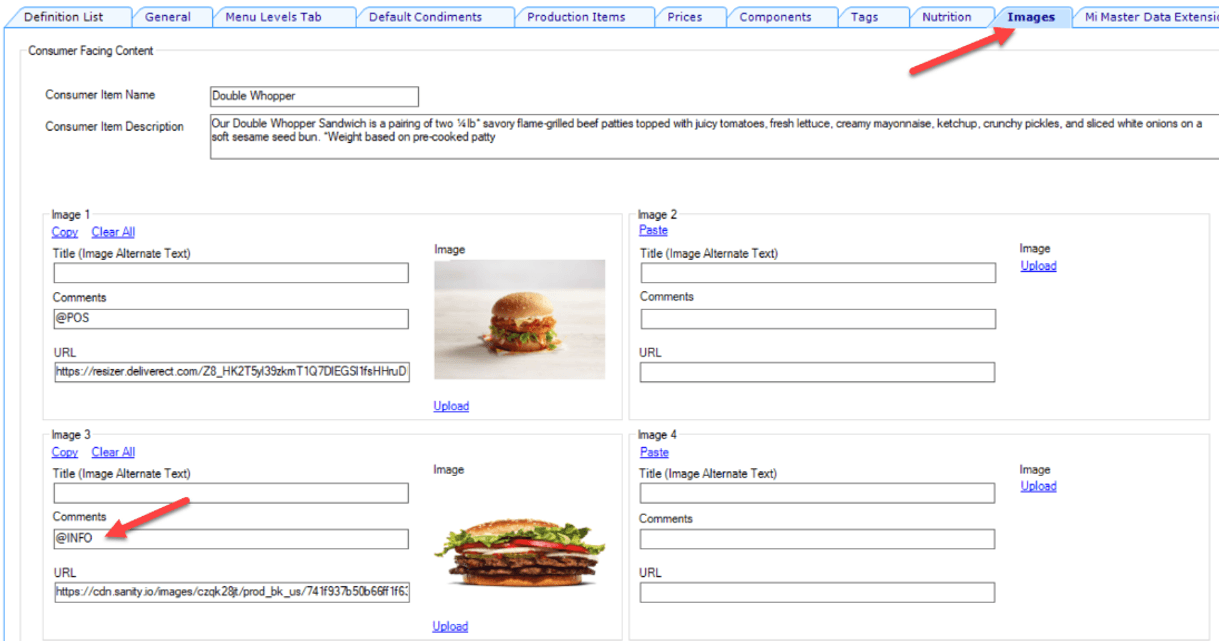

Figure 17-33 Menu Item Definition Images Tab

This figure shows the Images tab with an arrow pointing to the Images tab and another arrow pointing to the Comments field.

See Configuring Menu Item Definitions, Family Groups, and Condiment Group Names Consumer-Facing Settings for configuration instructions.

Parent topic: Extension Application Plug-in for Menu Item Information
