Typical Hardware Architecture

• Servers:
  • An Oracle Database Server with Oracle Database 12.2.0.1
  • An Oracle Business Intelligence Enterprise Edition 12.2.1.4 Server with latest patch set
  • ETL Server—Oracle Data Integrator Studio 12.2.1.3

    Note:

    These servers can run on any of the supported platforms: Linux, Solaris, or Windows.
• Clients:
  • ETL Client—Oracle Data Integrator Studio 12.2.1.3
  • Oracle Database Client 12.2.0.1
  • Oracle Business Intelligence Developer Client Tool (12.2.1.4)

    Note:

    All tools can be installed in a single Microsoft Windows box.

    If the Oracle Business Intelligence Enterprise Edition server mentioned under the "Servers" section is a Windows Server, then all the clients can be installed in the same box itself.

    Note:

    It is important to get the technology stack products from the Oracle Argus Analytics media pack because newer versions of the technology stack products may have become available but may not be compatible with Oracle Argus Analytics.

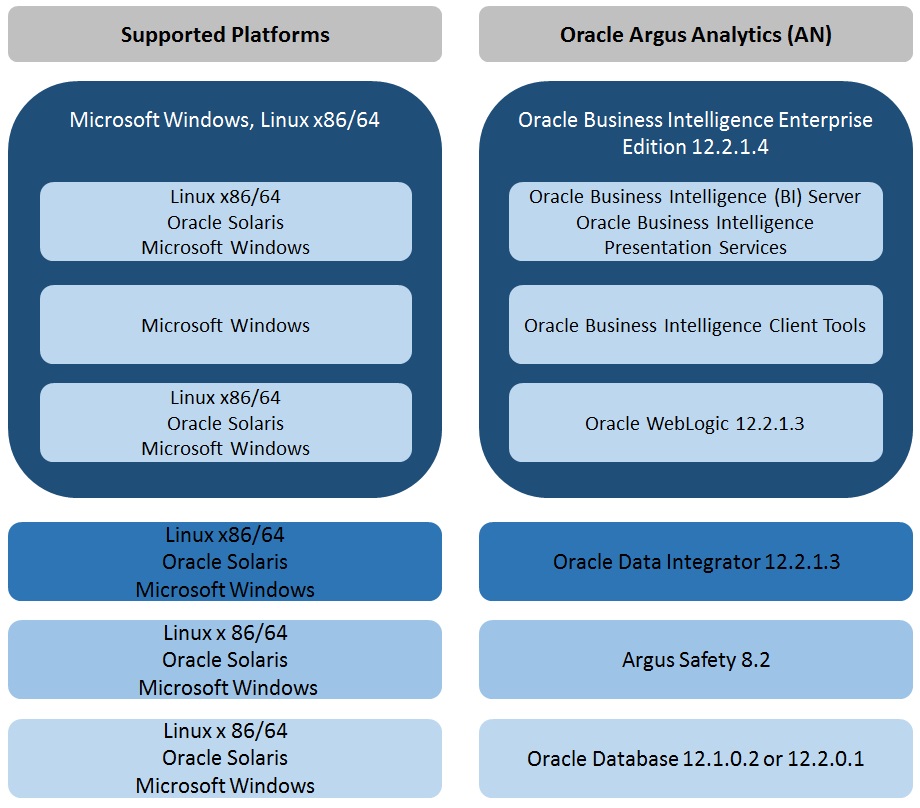

    Figure 1-1 Oracle Argus Analytics Technology
