Create the Schema on Windows from the User Interface
- Run the
dbinstallerUI.bat

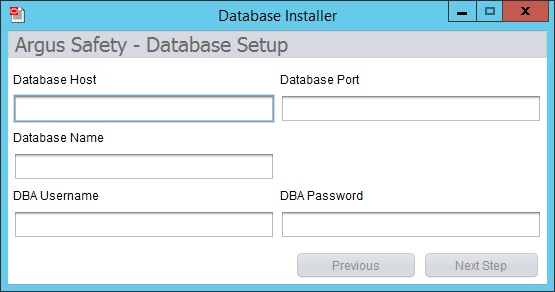

file to invoke the user interface. You must run the file as an administrator.The Database Installer dialog box appears.
- Enter the parameters and click Next Step.

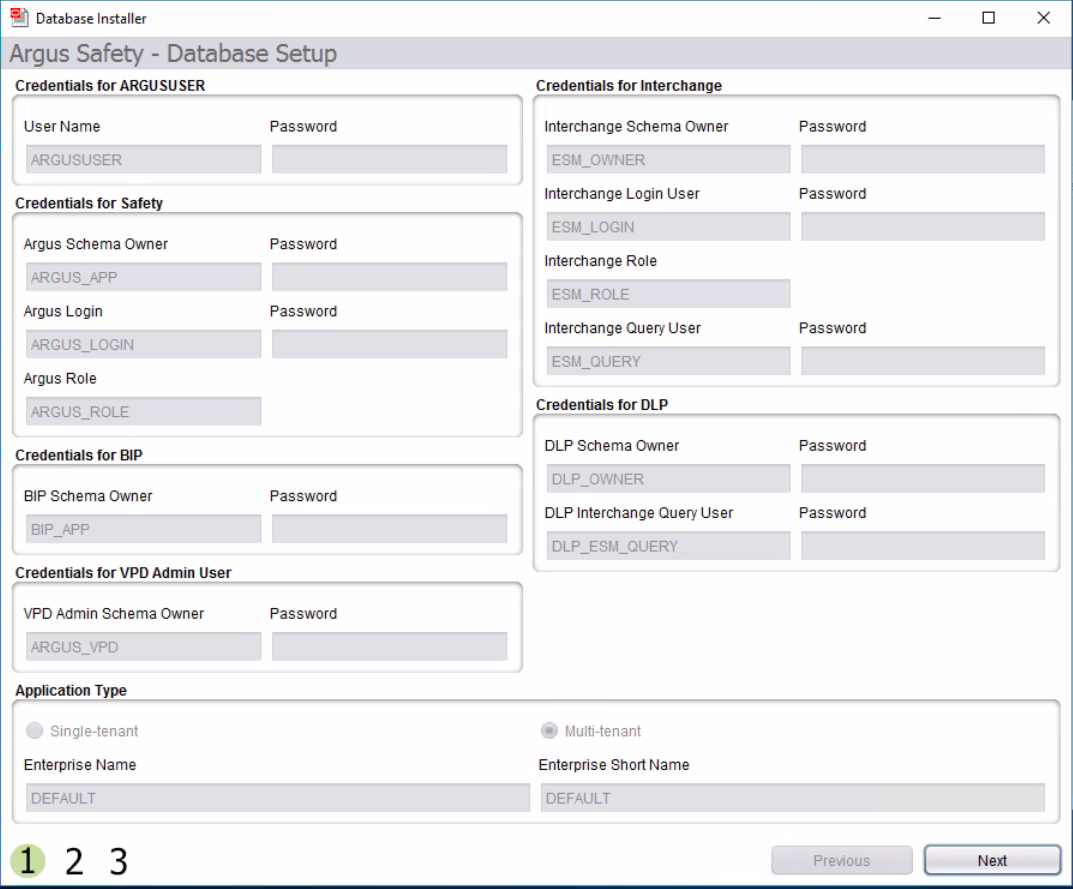

Argus Safety - Database Setup screen appears.
- Enter the parameters, select the Application Type, and click
Next.
- Single Tenant—Select this option to allow the database to support only single tenant. The options to create multiple tenants in the safety system is disabled.
- Multi-Tenant—Select this option to allow the database to support multiple tenants. Users are able to create multiple tenants using the Global Enterprise setup screens.
- Create new tablespaces or use the existing tablespaces.
-
Under Complete Path and Data File Name, enter the database server path (complete path including the filename) where the data file is placed.
Instead of entering path for each tablespace, you can set up a common folder path. To do so, in the text box, enter the datafile folder path, and click Set Datafile Folder.
- If the data file does not exist, the system creates a data file.
- If the data file exists, to use the current data file, click
Yes in the confirmation dialog box.
Note:
When you have existing tablespaces, you may use them; you are not required to create new ones. The system will not regenerate the tablespaces.
- Click Next.
-
- Verify the Setup Parameters and click
Execute.
When execution is complete, a message appears in the Execution Log on screen 3 - Liquibase Update Successful.
- To view the execution status or errors, open the schema creation log file with
the latest timestamp from
Argus Release Media\Database\Argus Safety\logs
.
Parent topic: Create Oracle Argus Safety Database Schema
