Discrepancies by Age graph

In the Age graph, each bar represents a site and the colors within the bar represent the age range of the discrepancies.

Note:

A subject visit table must be configured for data to display in the Site and Age graphs

The Age graph is filtered by "Since Last Opened" by default, but can be changed to display discrepancies filtered by "Since Last Answered" using the drop down menu above the graph.

If you position your cursor anywhere over the Age graph, you can use your mouse wheel to zoom in and out on the data. The zoom function also supports "pinch" and "expand" gestures on tablets and mobile devices. The Age graph features a zoom and scroll component at the bottom that lets you scroll across the data on the x-axis when there are too many sites to show on the initial screen.

Color	# of Days Since Discrepancy Change
Green	0-5
Yellow	6-15
Orange	16-30
Red	>30

If space allows, the number of discrepancies within each age block is displayed directly on the bar in the graph. Hovering the cursor over each section of the bar pops up a window with additional information including site name, discrepancy age group, and number of discrepancies within that age block.

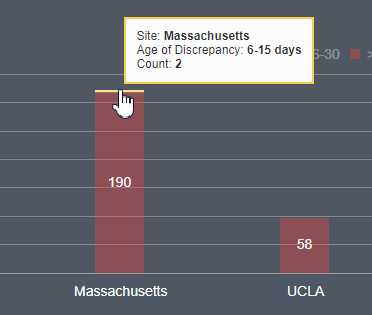

Figure 1-5 Discrepancies by Age detail

Description of "Figure 1-5 Discrepancies by Age detail"

Clicking on any of the bars within the Age graph takes you to the Discrepancies interface where the Discrepancy State Change Date, Site , and Discrepancy State = Open filters have been set according to which bar and age group you clicked.
