Architecture diagram

The Oracle Healthcare Translational Research-Notebook solution consists of:

  • Data Studio server application
  • PgX docker container
  • PgX Interpreter docker containers

The Data Studio war application is deployed in the Oracle Healthcare Translational Research Middle Tier WebLogic server, alongside other Oracle Healthcare Translational Research applications. The PgX Server and PgX Interpreter docker containers are run using docker and are managed together using docker-compose.

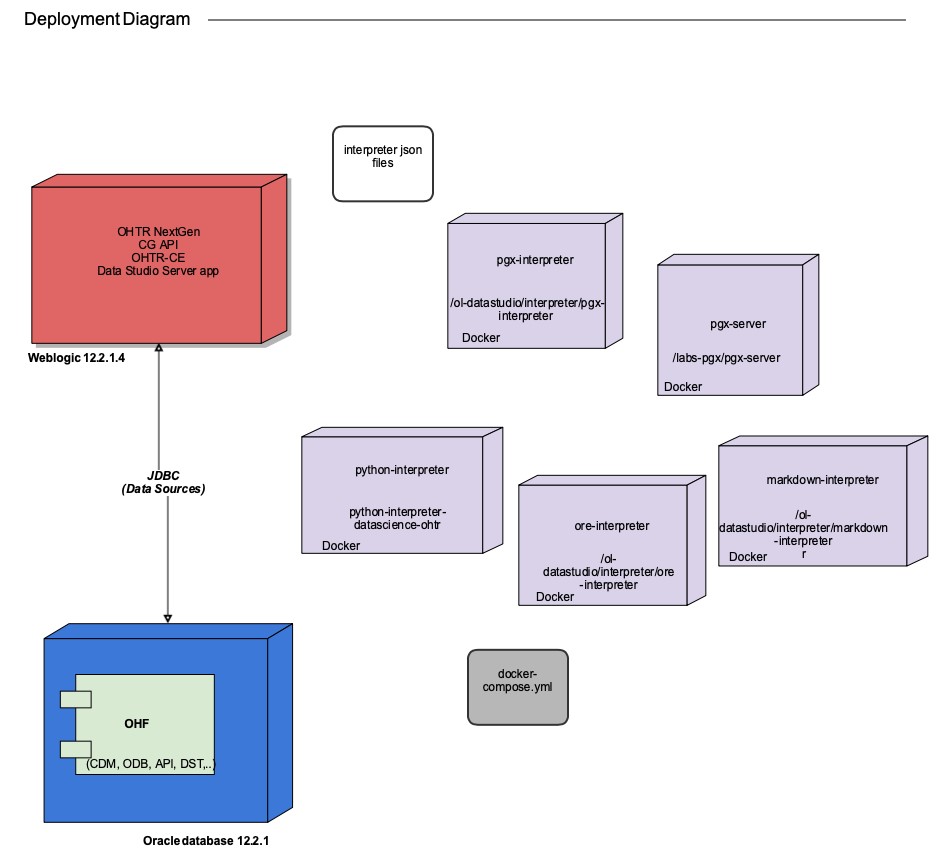

Figure 1-1 How data flows from CDM to OHTR notebooks

Figure showing how data flows from CDM to OHTR notebooks
