Specifying event properties
When you open a new Event window, the Properties window displays the properties for defining an event. The following table specifies event properties:
Property |
Description |
|---|---|
RefName |
RefName of the component. REQUIRED. For rules about the use of RefNames, see RefNames |
Query Type |
Type of query to generate when the event fires: Candidate or Open. Candidate queries are invisible to sites and must be reviewed and explicitly opened. Open queries are immediately visible to sites and available for response. Both Query Type and Query Text must be present for InForm Architect application to generate MedML for the event description. |
Query Text |
Specify the default text of the query that the event generates. If you specify dynamic query text in the definition of the rule with which the event is associated, the InForm application overrides the default text specified as the event property. For information on generating dynamic query text, see Form rule with dynamic query text. Both Query Type and Query Text must be present for InForm Architect application to generate MedML for the event description. |
UUID |
String that uniquely identifies the event within a trial. It may also be unique across all databases, trials, and machines, depending upon how you set up your trials. OPTIONAL. Note that the InForm Architect application automatically capitalizes UUID strings that contain lower-case characters. |
Execution Plan |
RefName of the execution plan that the event fires, if any. OPTIONAL. |
Design Note |
Free-form text, with a maximum of 255 characters, containing any information you want to capture about the design of the component. This information is for documentation only. OPTIONAL. |

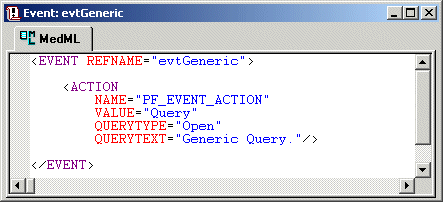

As you specify event properties, InForm Architect application updates the Event window with the appropriate MedML tags.
