Creating an association mapping manually

To create a mapping for an association:

  1. In the Trial Objects window, double-click the Associations node.

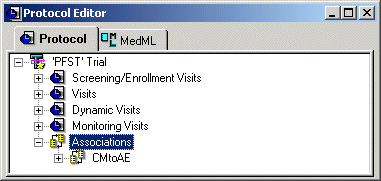

    The Protocol Editor window opens.

  2. Expand the Associations node to expose the association you want to map.

  3. Right-click the association, and select Add Data Mapping.

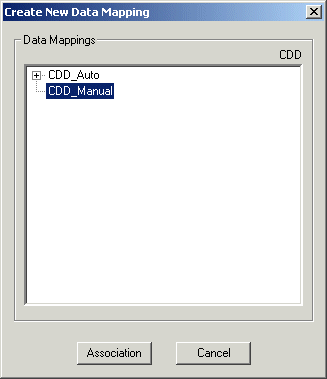

    The Create New Data Mapping dialog box opens.

  4. Select the CDD definition in which you want to create the association mapping, and click Association.

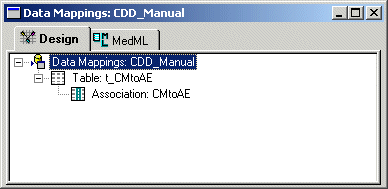

    The InForm Architect application generates the association mapping table definition, which is visible in the Data Mappings window for the CDD mapping after refreshing.
