Viewing data mappings in annotated trial design

The annotated trial design display mode in the InForm Architect application enables you to display and print trial specifications, including data mapping definitions. To view data mappings in an annotated trial design:

In the Trial Objects window of the InForm Architect application, double-click the name of the form for which you want to review mappings.
The form appears in the Form window.

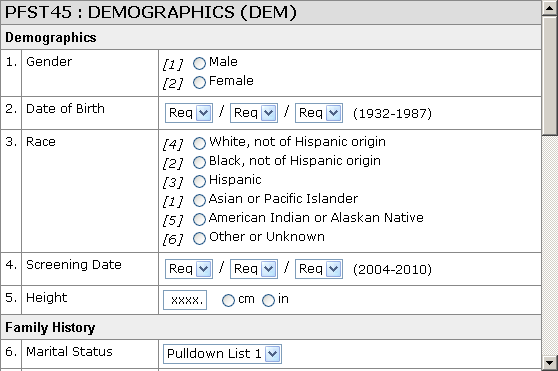

Click View > Settings > Display Annotated View.
The annotated view of the form appears in the Form window.

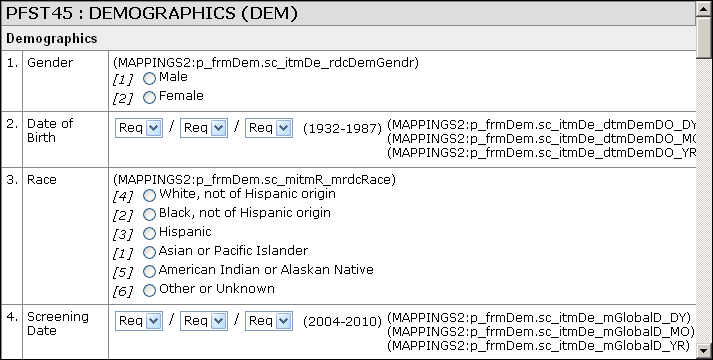

To display the names of target columns to which each item is mapped, click View > Settings > Display Data Mappings in Annotated View.
The annotated view changes to include the names of target columns next to each data item or control for which a mapping exists.

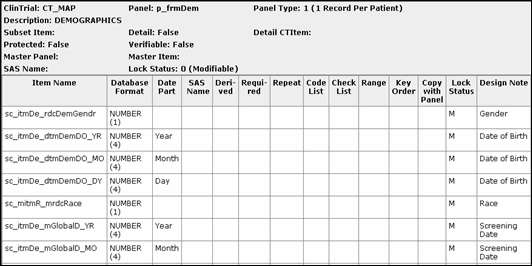

To display mapping reference tables, click View > Settings > Display Data Mappings Tables in Annotated View.
The annotated view changes to include a table. For a CDD mapping definition, the table shows item names, database formats, and design notes. For a Clintrial mapping definition, the table shows panel and item mapping properties.
