DocumentEntry association type diagrams
This section provides diagrams of supported association types.
The following diagrams illustrate the status values for an existing DocumentEntry object and new DocumentEntry object after a document relationship is applied to an existing DocumentEntry.
Note:

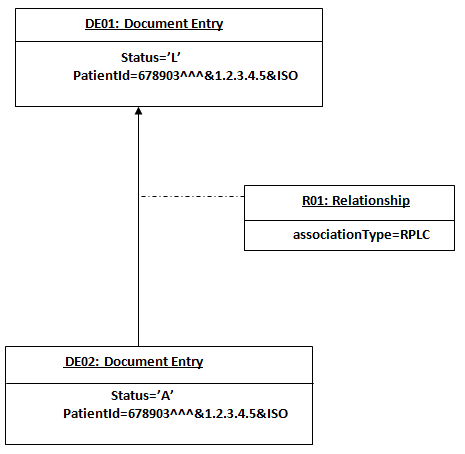

The Status column in the Doc_Entry database table indicates the status of that particular DocumentEntry object.Figure A-1 RPLC Association Type
Where DE01 is an existing document entry.
Figure A-2 APND Association Type
Where DE01 is an existing document entry.

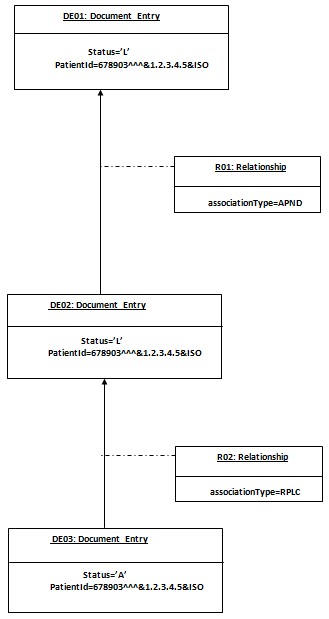

Figure A-3 Document Replacing an Addendum (APND) of an Existing DocumentEntry
Where DE01 and DE02 are existing document entries.

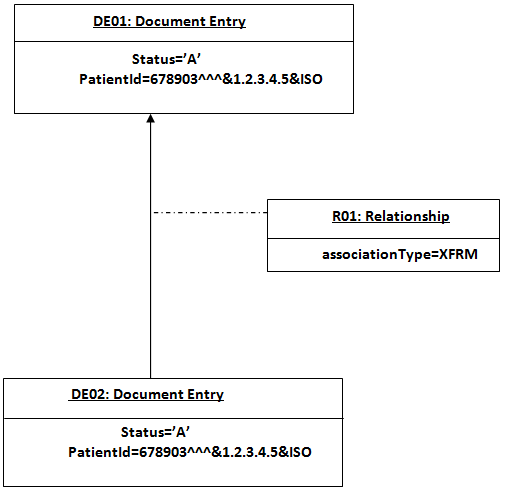

Figure A-4 XFRM Association Type
Where, DE01 is an existing document entry.
Figure A-5 XFRM_RPLC Association Type
Where, DE01 is an existing document entry.

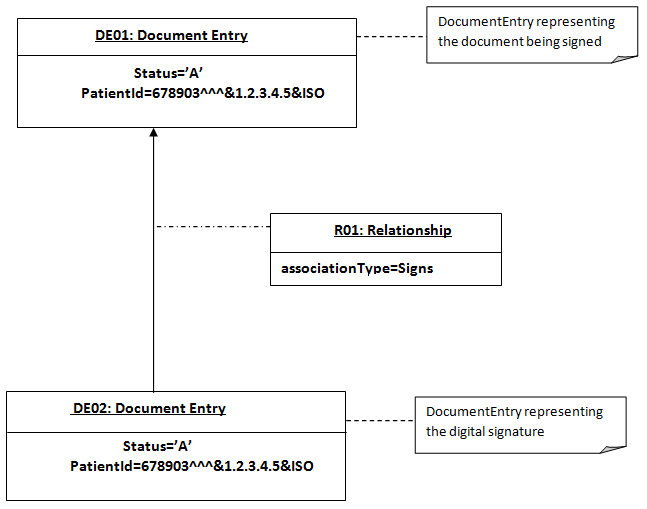

Figure A-6 Signs Association Type
Where, DE01 is an existing document entry.

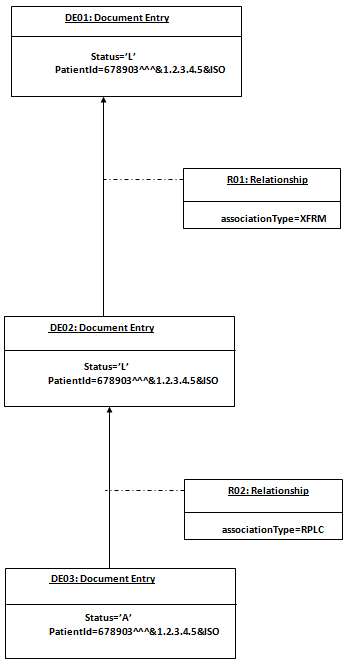

Figure A-7 Document Replacing a Transformation (XFRM) of an Existing DocumentEntry
Where, DE01 and DE02 are existing document entries.

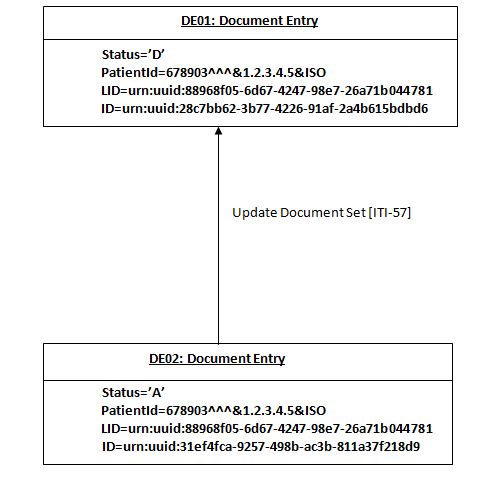

Figure A-8 DocumentEntry
Where, DE01 is an existing document entry version and DE02 is a new version created.
Figure A-9 Status of a Document Entry
- Whenever a Register Document Set-b[ITI-42] transaction is executed against Health Record Locator, the newly created DocumentEntry or Folder is set with the status 'A'.
- Whenever an Update Document Set [ITI-57] transaction is executed against Health Record Locator, the previous version of DocumentEntry or Folder is set with the status 'D' while the new version of DocumentEntry or Folder is set with status 'A'.
