1 System Configuration

The Ship operator is responsible in preparing a list of the gangway locations on-board and the location of the workstations set up to run the WPF Security. Setting up multiple workstations in different locations is permissible, for example, workstation to manage passengers and another for crew at the same deck location. All of the configurations are coded in the Administration module.

Gangway Location

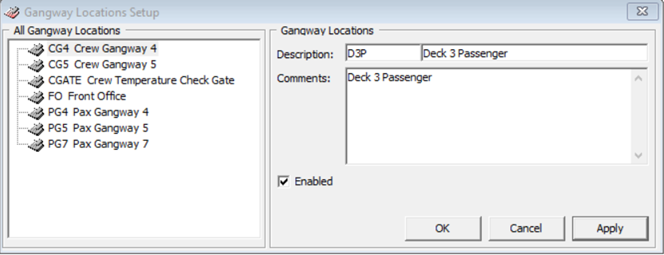

Figure 1-1 Gangway Location Setup


This figure shows the Gangway Location setup window where locations is configured.

  1. Log in to the Administration module and select Safety Setup, Gangway Locations from the menu.

  2. On the All Gangway Locations pane, right-click and select Add New.

  3. At the Description field, enter the gangway location code and name, and additional comments about the location if any.

  4. The new code is enabled by default. To disable, deselect the Enabled check box.

  5. Click Apply to save the new record.

Labels Setup

The program is pre-configured with a set of labels for use in WPF Security and you can modify the description to suit the ship’s operation. The labels are listed in the following groups.

  • GNG001 - GNG115

  • IMSG01 - IMSG03

  • INIC01

  • ODCT01

  • ODMS01

  • OMSG01 - OMSG03

  1. Navigate to Administration, System Setup, Labels Setup.

  2. Select a label code to modify.

  3. Change the label description besides the short code and leave the Comments field as it is.

  4. Click OK to save.

Security Sound File

A sound file is added to the Gangway location as an alert on the different types of Guardian movements alerts. The sound file format supported is .wav and mp3.

  1. Log in to Administration module and select Administration, Multimedia File Maintenance from the menu.

  2. Navigate to the Security Sound File tab and click Select to select the sound file for each of the alert types. This opens Window File Explorer. Locate the sound file and click Open to select the file.

  3. To remove a sound file, click Remove on the selected sound file or Play to play the file.

  4. Repeat the steps above for the remaining alert types.

Security Alert Setup

You can set up additional alerts to warn security officers of a potential security breach. Alert setup is in the Administration module, Security Alert Setup.

However, you must first define and create the Security Alert in the database using a script. Contact Oracle Customer Support for the script file.

  1. Run Administration module and select Administration, Security Alert Setup from the menu bar.

  2. In the Details tab of the User Definable Security Alert Setup window, enter the alert context in the Name field.

  3. Enter the alert message text in the User Define Alert Message field.

  4. In the e-Mail Setup section, select an e-Mail alert template and enter the email address using a semicolon (;) as a separator when inserting more than one e-mail account.

  5. Select the Direction Checking, Process Type and Gangway Type from the drop-down lists.

  6. Select the respective alert triggers and click Add Audio to add a sound file.

  7. Navigate to the Oracle SQL Statement tab to view the SQL statement for that alert.

  8. Click OK to save the setting.

Peripherals

Peripherals such as camera, passport reader, or card printer are often hooked up at the gangway workstation to capture live pictures, record travel documents, or print the board card. To configure, see Management module, Options, Hardware Setup.
