1. Mobile Mustering and Gangway Security Installation Guide
  2. System Schematic

1 System Schematic

The Gangway Security and Mobile Mustering application consists of several components, and these components are responsible for transmitting information between the mobile device and the SPMS database. The following diagrams further illustrate the schematic flow between the components.

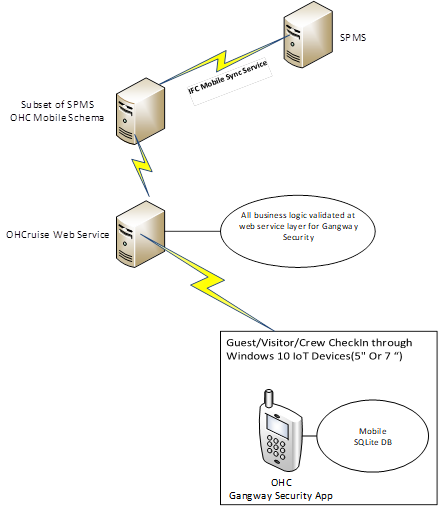

Figure 1-1 Gangway Security System Schematic


This figure shows the system schematic for the Gangway Security application.

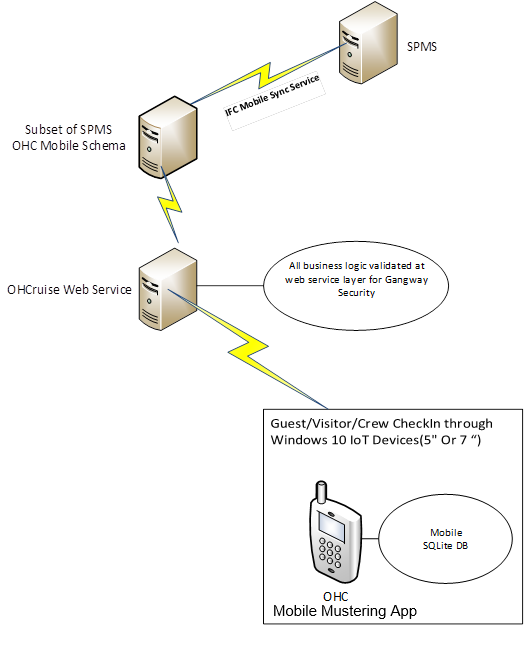

Figure 1-2 Mobile Mustering System Schematic


This figure shows the system schematic for Mobile Mustering application
