1 Setting up Parameters
Before you begin using the Seaware Monitor program, you must set up the two parameters below in Administration module, System Setup, Database Parameters.
Figure 1-1 Database Parameters
Launching Seaware Monitor
The OHC Seaware Monitor is accessible from the OHC Launch Panel.
-
To launch the program, double-click the OHC Seaware Monitor.
-
In the application window, select the date range and click the Refresh button to display the activities.

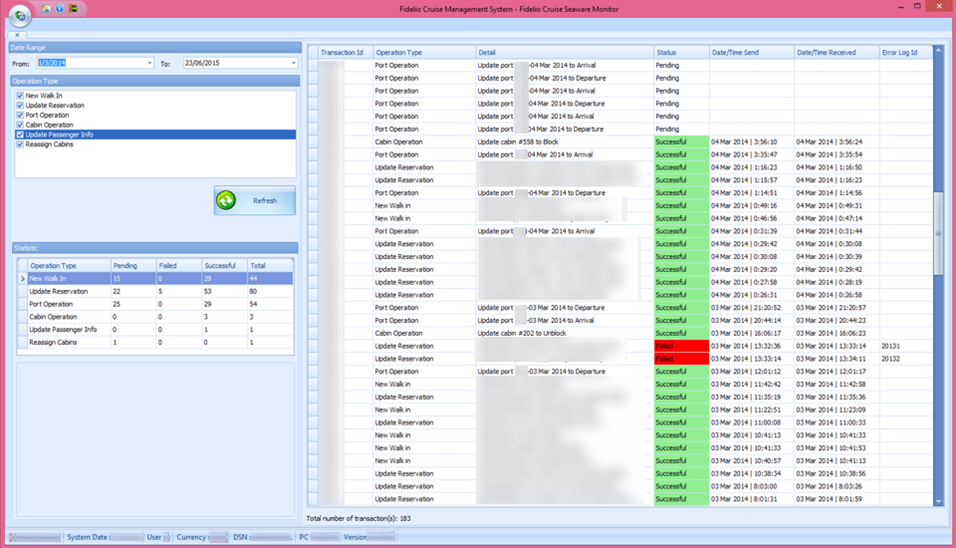

Figure 1-2 Seaware Monitor Activities
In the Statistic section,-
The Pending status refers to the transaction that has not been sent to Seaware for processing.
-
The Successful status refers to transactions that are processed successfully and responded to by Seaware.
-
The Failed status refers to the transaction that has been processed but failed after responded to by Seaware.
-
Log Based on Syn_Operation
The following status codes explain the types and details of error messages logged that allow you to extract the content into an XML file using the steps below.
Table 1-1 Syn_Operation Error Code
Log | Description |
---|---|
1 |
New reservation |
2 |
Update reservation |
3 |
Port operation |
4 |
Cargo |
5 |
Cabin operation |
6 |
Update Reservation include res_grp |
7 |
Update personal information |
-
Double-click the failed transactions.
-
Click Extract.
-
At the confirmation prompt, click OK. This saves the transaction error to the default save folder on the client PC in an Extensive Markup Language (XML) format.

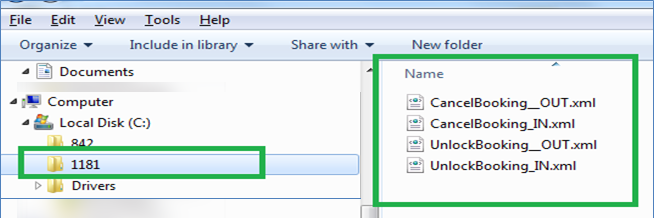

Figure 1-3 Seaware XML File Types
Note:
Error attachments are stored in the SEWLOG_XML table.
