Step 4: Adding the Identity Provider in OCI IAM Identity Domains

Enter the identity provider details by following these steps:

  1. Navigate to the OCI IAM Identity domain overview page.
  2. Click the Federation tab. Under Identity providers, click the Actions menu and select Add SAML IdP.
  3. Enter the following information:
    • Name: Enter the name of the IdP.
    • (Optional) Description: Enter a description of the IdP.
    • (Optional) Identity provider icon: Drag and drop a supported image or click select one to browse for the image.
  4. Click Next.

    Verify the Import identity provider metadata is selected and browse and select or drag and drop the metadata XML file onto the Identity provider metadata. This is the metadata file you saved earlier from your identity provider.

  5. Click Next.
  6. Under Map user identity, set the values below:
    • Requested Name ID Format: None
    • Identity Provider user attribute: SAML Assertion Name ID
    • Identity Domain user attribute: Username

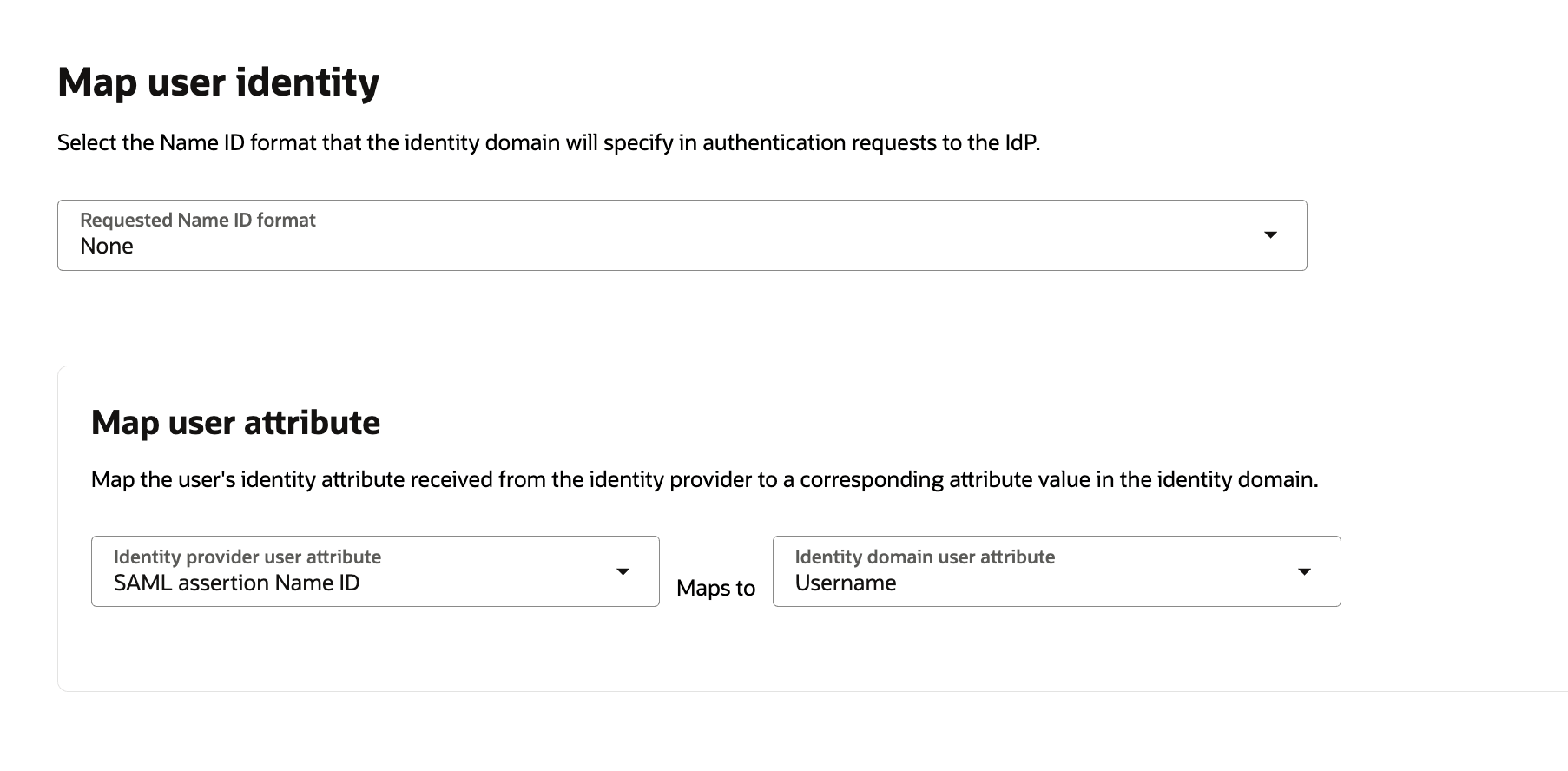

    This image shows the Map user identity.
  7. Click Next.
  8. Under Review and Create, verify the configurations and then click Create IdP.
  9. Click the name of the IdP you just created to open the IdP Overview page.
  10. Click the Actions menu and select Activate.

Parent topic: Steps to Configure Identity Federation in OCI IAM Identity Domains with Just-In-Time Provisioning
